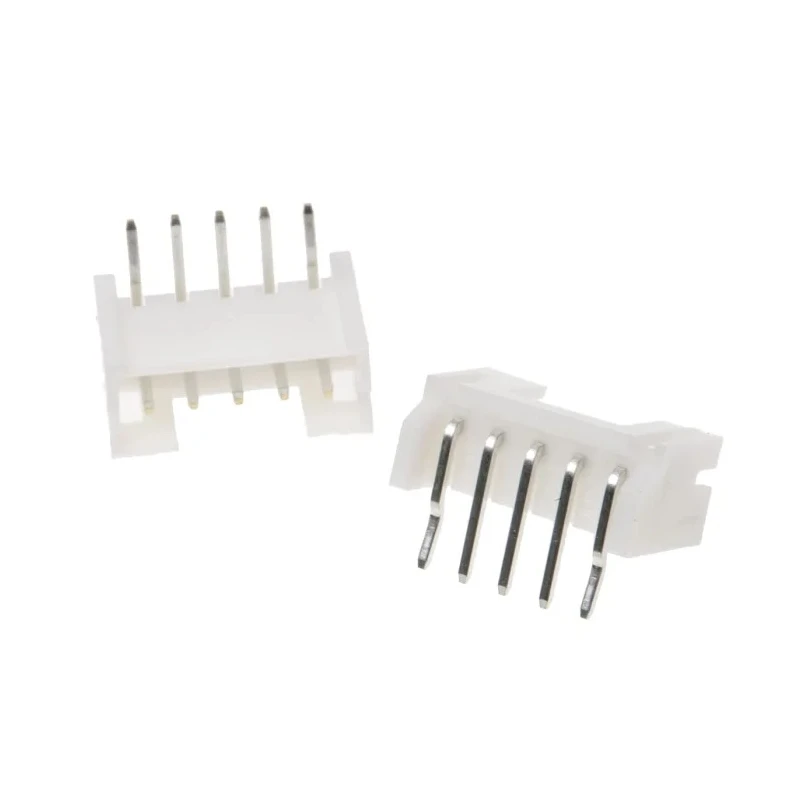

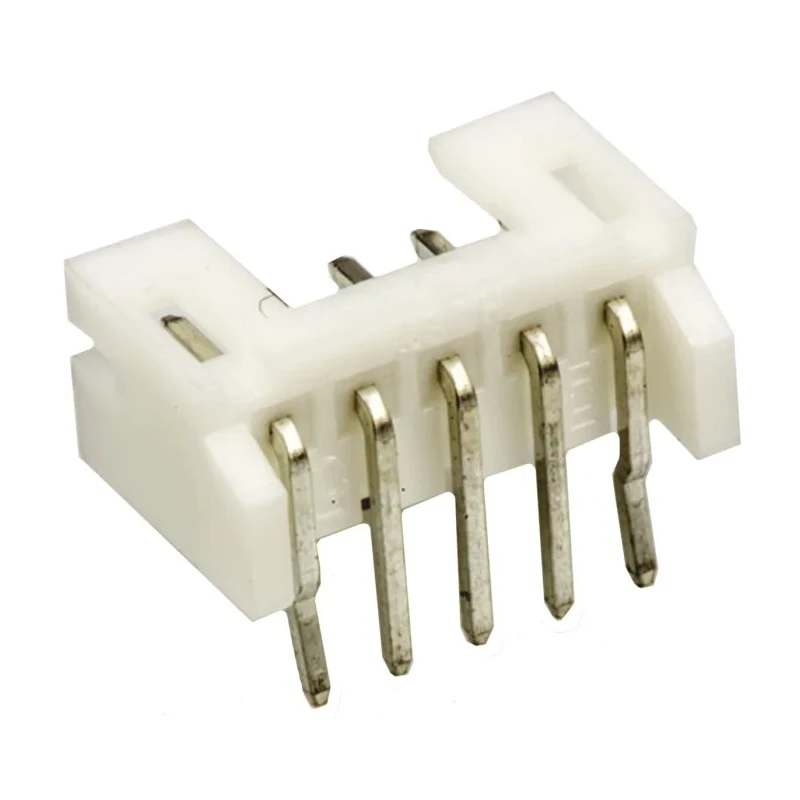

JST PH Series Right Angle Through Hole PCB Header 5 Contacts 2 mm Pitch 1 Row Shrouded S5B-PH-K-S(LF)(SN)

Free Delivery in India | Lowest Global Shipping Charges

JST PH Series Right Angle Through Hole PCB Header 5 Contacts 2 mm Pitch 1 Row Shrouded S5B-PH-K-S(LF)(SN)



Category PCB Headers Brand JST Condition New

Specifications

Country of Origin	India
Voltage	100V
Brand	JST
Orientation	Right Angle
Current	2A
Model	S5B-PH-K-S(LF)(SN)
Mount Type	Through Hole
Housing Material	Polyamide
Contact Material	Brass
Series	PH
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	2mm
Contact Plating	Tin
Number of Contacts	5
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	3.4mm

Key Features

Features a right angle orientation for space-efficient PCB mounting.
Constructed with brass contacts and tin plating for excellent conductivity.
Polyamide housing provides durability and insulation.
Supports a maximum current of 2A and voltage rating of 100V.
Suitable for through hole mount applications with solder termination type.
Operating temperature ranges from -25°C to 85°C ensuring stable performance in various environments.
Designed for 2 mm row pitch to match compatible connectors.
Tail and mating pin length of 3.4 mm ensure secure engagement.

Product Description

JST S5B-PH-K-S(LF)(SN) is a Right Angle Through Hole PCB Header designed as part of the JST PH series of wire-to-board connectors. This component features 5 contacts arranged in a single row with a precise 2 mm pitch, optimized for compact and high-density PCB layouts.

The header utilizes brass contact material with tin plating, combined with a polyamide housing that ensures robust electrical insulation and mechanical reliability. Its right angle orientation facilitates space-saving PCB designs, especially beneficial in dense electronic assemblies.

Rated for a current of 2 amperes and a voltage of 100 volts, it is capable of handling typical low-power electronic circuit demands. The operating temperature range is from -25°C to 85°C, allowing this header to be used in diverse industrial, commercial, and consumer electronic applications.

The component is designed for through-hole mounting with solder termination which provides strong mechanical and electrical solder joints. Both tail pin and mating pin lengths measure 3.4 mm, providing good connection stability. The header includes a shrouded design that helps prevent pin damage and ensures proper connection alignment.

Right angle orientation for minimized PCB footprint. Brass contacts with tin plating for superior conductivity. Durable polyamide housing for insulation and mechanical strength. 2A current and 100V voltage rating. Through hole mount with solder termination.

Operating temperature from -25°C to 85°C. 2 mm pitch with 5 contacts in one row. 3.4 mm mating and tail pin lengths. Shrouded for enhanced connection protection.

This JST PH Series PCB header is widely used in electronics manufacturing, prototyping, industrial controls, telecommunications, and instrumentation. Its compact size and reliable connection features make it suitable for consumer electronics as well as professional-grade equipment.
