JST PH Series Right Angle Through Hole PCB Header, 3 Contacts, 2 mm Pitch, 1 Row, Shrouded S3B-PH-K-S(LF)(SN)

Free Delivery in India | Lowest Global Shipping Charges

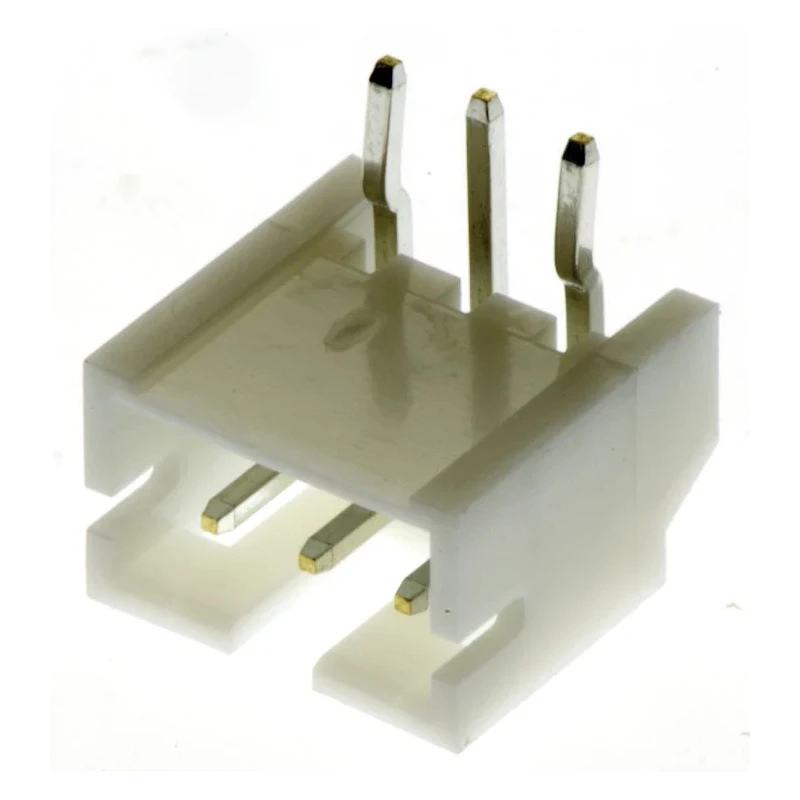

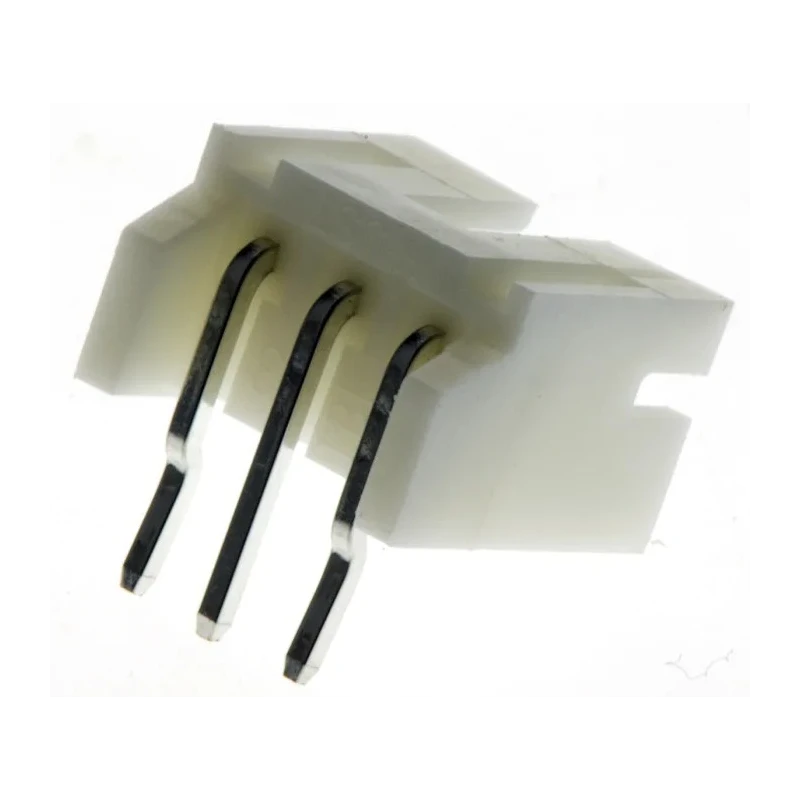

JST PH Series Right Angle Through Hole PCB Header, 3 Contacts, 2 mm Pitch, 1 Row, Shrouded S3B-PH-K-S(LF)(SN)



Category PCB Headers Brand JST Condition New

Specifications

Country of Origin	India
Voltage	100V
Brand	JST
Orientation	Right Angle
Current	2A
Model	S3B-PH-K-S(LF)(SN)
Mount Type	Through Hole
Housing Material	Polyamide
Contact Material	Brass
Series	PH
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	2mm
Contact Plating	Tin
Number of Contacts	3
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Mating Pin Length	3.4mm

Key Features

Features a shrouded design for enhanced protection and durability.
Constructed with a polyamide housing for strength and electrical insulation.
Provides current rating of 2A and voltage capacity of 100V.
Includes 3 male contacts arranged in a single row with right angle orientation.
Contact material is brass with tin plating for corrosion resistance.
Mounts through-hole for stable PCB connection.
Operates reliably between -25°C and 85°C temperature range.
Contact mating pin length is 3.4 mm ensuring secure wire-to-board connection.

Product Description

JST S3B-PH-K-S(LF)(SN) is a Right Angle Through Hole PCB Header from the PH series designed for reliable wire-to-board connections. It features a shrouded polyamide housing which protects the contacts and enhances mechanical strength. The 3 contacts are arranged in a single row with a 2 mm pitch, suitable for high-density PCB layouts.

This header supports a current of 2 amperes and a voltage of up to 100 volts, making it suitable for a range of electronic and industrial applications. The brass contacts with tin plating provide excellent corrosion resistance and reliable conductivity. The through-hole mount type ensures robust mechanical stability on the PCB, beneficial in scenarios with vibrations or mechanical stress.

Operating temperature ranges from -25°C to 85°C, accommodating diverse environmental conditions often encountered in industrial and manufacturing settings. The contact mating pin length is 3.4 mm, optimizing connector engagement and durability.

Its shrouded design reduces the risk of accidental shorts and enhances safety. This product is widely used in industrial electronics, automation equipment, instrumentation, and embedded systems requiring compact and reliable connectors.

Package contains the PCB header ready for insertion and soldering into printed circuit boards for seamless integration into manufacturing processes. Features a shrouded design for enhanced protection and durability. Constructed with a polyamide housing for strength and electrical insulation.

Provides current rating of 2A and voltage capacity of 100V. Includes 3 male contacts arranged in a single row with right angle orientation. Contact material is brass with tin plating for corrosion resistance. Mounts through-hole for stable PCB connection.

Operates reliably between -25°C and 85°C temperature range. Contact mating pin length is 3.4 mm ensuring secure wire-to-board connection. Termination type is soldering for durable fixtures. Ideal for electronics manufacturing requiring low-profile, high-density PCB connectors.

Explore more PCB Headers and connectors at EnvMart for your electronics component needs.
