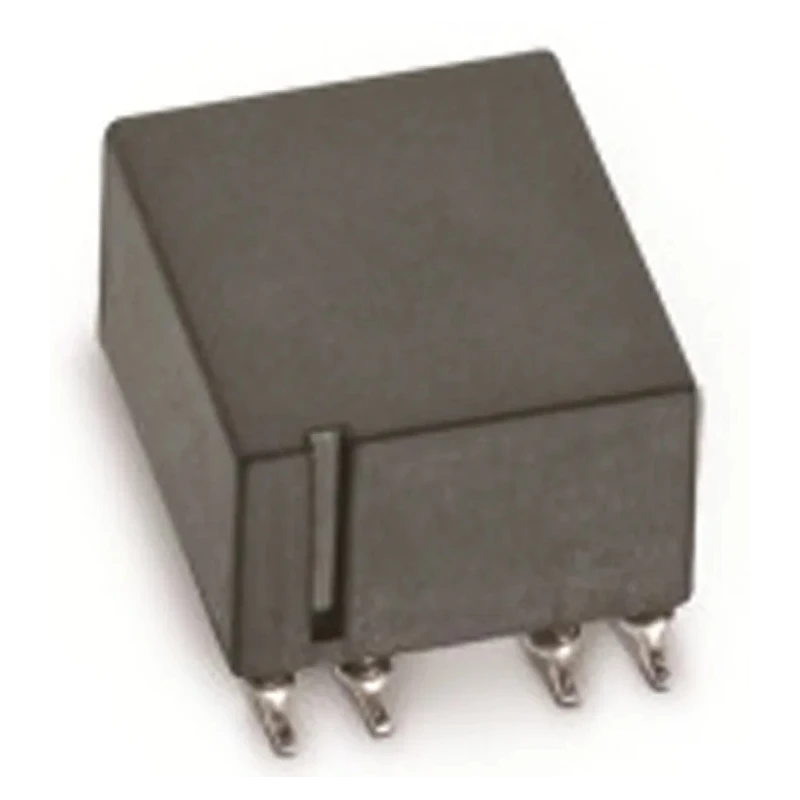

Wurth Elektronik WE-UCF 1712 Shielded Wirewound Surface Mount Inductor with Ferrite Core 0.47 μH 10 A 744290130

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik WE-UCF 1712 Shielded Wirewound Surface Mount Inductor with Ferrite Core 0.47 μH 10 A 744290130

Name: Wurth Elektronik WE-UCF 1712 Shielded Wirewound Surface Mount Inductor with Ferrite Core 0.47 μH 10 A 744290130
Brand: Wurth Elektronik
SKU: 376611
Price: 5.08 USD
Availability: InStock



Category Surface Mount Inductor Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Brand	Wurth Elektronik
Height	7.8mm
Length	14mm
Depth	12.5mm
Packaging	Tape & Reel
Series	WE-UCF
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Core Material	Ferrite
Inductance	0.47μH
Standards/Approvals	REACH, RoHS
Package/Case	1712
Maximum DC Current	10A
Pin Count	8
Maximum DC Resistance	2.7mΩ
Inductance Tolerance	±30 %
Termination Style	Surface Mount
Inductor Construction	Sectional Winding

Key Features

The inductor supports a maximum DC current of 10 amperes.
It has a 1712 package case with 8 pins for surface mounting.
The component offers shielding to reduce electromagnetic interference.
Its operating temperature range is from -40°C to 125°C.
The inductance tolerance is plus or minus 30 percent.
Maximum DC resistance is 2.7 milliohms.
The inductor's sectional winding construction improves performance.
Core material is ferrite, enabling efficient magnetic properties.

Product Description

Wurth Elektronik 744290130 WE-UCF 1712 shielded wirewound surface mount inductor with ferrite core and inductance of 0.47 μH is engineered for precise filtering in compact electronic circuits. Designed to support a maximum DC current of 10 amps, this component is suitable for industrial, automotive, and power supply applications requiring reliable noise suppression and EMI reduction.

This surface mount inductor features a low-profile 1712 package measuring 14 mm in length, 7.8 mm in height, and 12.5 mm in depth, facilitating space-saving PCB designs. The sectional winding construction and ferrite core combination enhance filtering across a wide frequency spectrum.

Operating reliably across a temperature range from minus 40 to 125 degrees Celsius, the inductor maintains stable performance with a 30% inductance tolerance. Its low DC resistance of 2.7 milliohms minimizes power loss, making it an efficient component for DC power line filtering, buck/boost converters, and data lines with low bitrates.

Shielding effectively reduces electromagnetic interference, improving overall circuit integrity. The component is supplied in tape and reel packaging compatible with automated pick-and-place assembly processes.

The inductor supports a maximum DC current of 10 amperes. Shielded design reduces EMI in sensitive circuits. Sectional winding for optimized inductance performance. Wide operating temperature range from -40°C to 125°C. Compact 1712 package size for surface mounting.

Low DC resistance of 2.7 mΩ for efficiency. Ferrite core material for stable magnetic properties. Tape and reel packaging suitable for automation.

This Wurth Elektronik Surface Mount Inductor series is ideal for power management, automotive electronics, industrial controls, and general electronics requiring noise filtering and signal integrity enhancement. Explore our extensive Electronics & Electricals catalog for compatible components and accessories.
