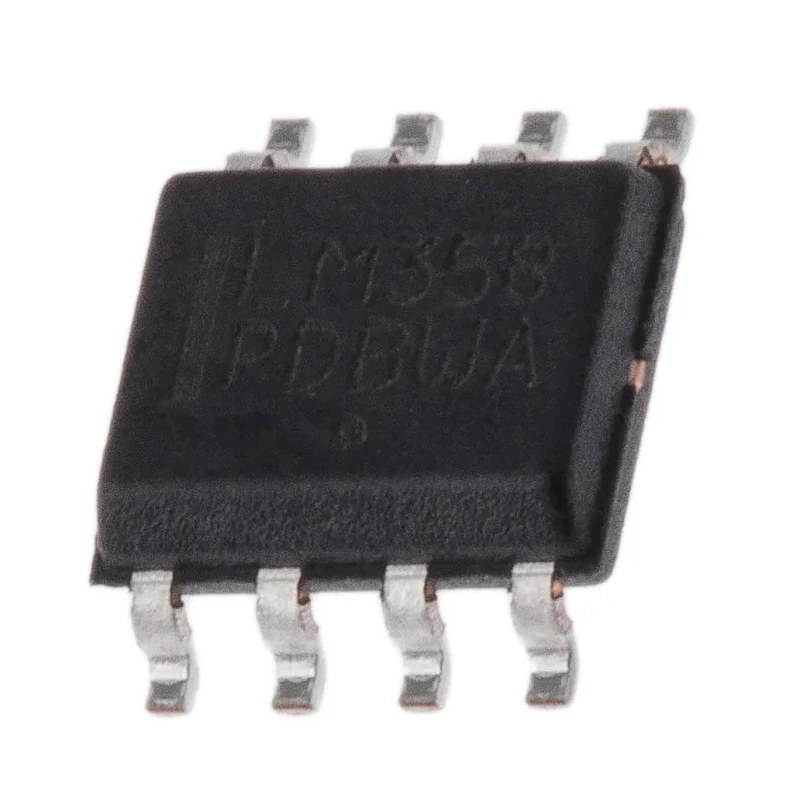

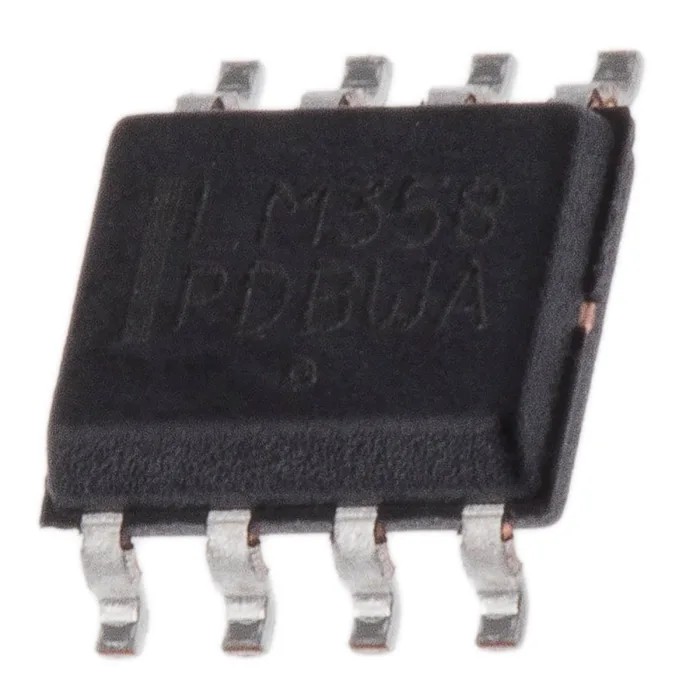

onsemi Operational Amplifier Dual Channel 1 MHz Bandwidth 3-32V SOIC 8-Pin LM358ADR2G

onsemi LM358ADR2G is a dual operational amplifier featuring true differential inputs suitable for single supply operation. It supports supply voltages from 3V to 32V and operates with a gain bandwidth product of 1 MHz. Packaged in an 8-pin SOIC, this device provides reliable performance for industrial, automotive, laboratory, and consumer electronics applications.

This operational amplifier offers several advantages including low input bias currents, ESD clamps on all input pins to enhance protection, and internally compensated circuits that eliminate the need for external compensation. Its common mode input range extends to the negative supply voltage which simplifies circuit design by removing the requirement for additional biasing components. The output voltage also includes the negative power supply voltage for improved signal fidelity.

The device operates efficiently across a temperature range from 0°C to 70°C and meets RoHS environmental compliance along with the automotive-grade AEC-Q100 standard, making it suitable for automotive electronic systems. With a typical slew rate of 0.6 V/μs and a maximum output current of 40 mA, it is capable of driving various analog loads directly.

Physical dimensions of 5mm length, 4mm width, and 1.5mm height make it an excellent choice for space-constrained printed circuit board layouts. Applications include integrators, comparators, voltage clamps, current regulators, linear voltage regulators, and general-purpose operational amplification.

Overall, the LM358ADR2G from onsemi combines robust performance, automotive qualification, and compact packaging that suits a wide range of electronics and semiconductor amplification needs.

Operates on a single supply voltage range from 3V to 32V. Designed with low input bias currents and a true differential input stage. Includes ESD protection clamps on all input pins for enhanced reliability. Typical slew rate of 0.6 V/μs ensuring stable signal amplification.

Operating temperature range from 0°C to 70°C suitable for various environments. Compact dimensions: 5mm length, 4mm width, and 1.5mm height for PCB space efficiency. Rated output current up to 40 mA for driving loads directly.

Complies with RoHS standards and automotive AEC-Q100 qualification for automotive applications. Common mode input range includes the negative supply eliminating biasing components. Explore a wide selection of Operational Amplifiers and other semiconductor components to find suitable products for your industrial and commercial projects on EnvMart.
