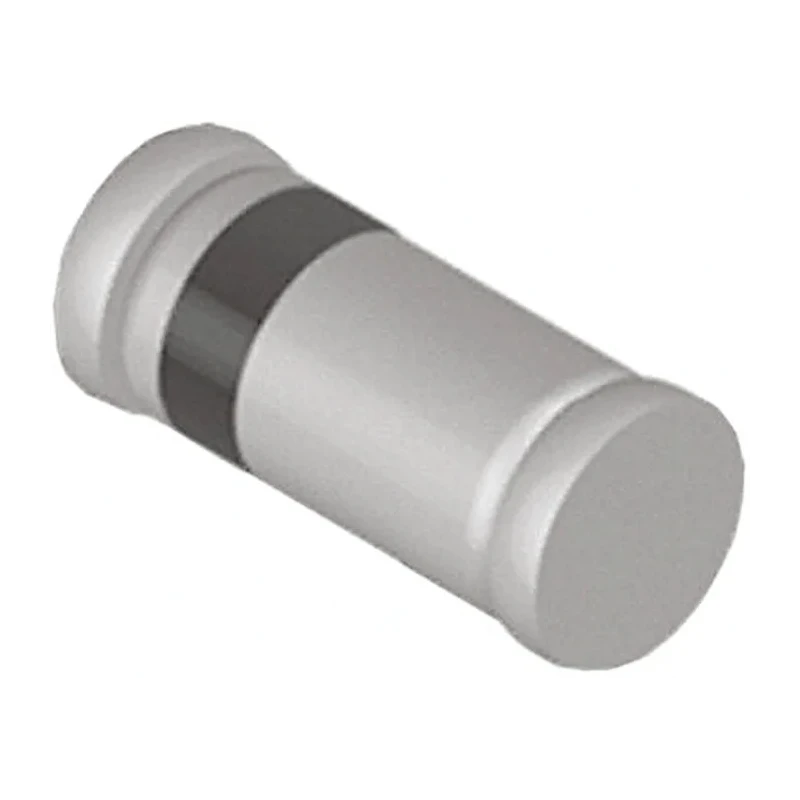

Vishay 10 V 500 mW Surface Mount Zener Diode Single 2-Pin MicroMELF BZM55C10-TR
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.35mm |
| Length | 2mm |
| Model | BZM55C10-TR |
| Mount Type | Surface |
| Series | BZM55 |
| Maximum Operating Temperature | 175°C |
| Package Type | MicroMELF |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 500mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 2μA |
| Nominal Zener Voltage Vz | 10V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 15Ω |
Key Features
- Nominal Zener voltage of 10 V with ±6% tolerance ensures precise voltage regulation.
- Maximum power dissipation rating of 500 mW allows for efficient energy handling.
- Compact 2-pin MicroMELF surface mount package supports automated PCB assembly.
- Maximum operating temperature up to 175°C enhances reliability in harsh environments.
- Low maximum reverse leakage current of 2 μA reduces power losses in circuits.
- Test current specified at 5 mA for establishing Zener voltage conditions.
- Maximum Zener impedance of 15 ohms maintains stable voltage regulation.
- Conforms to automotive standard AEC-Q101 for use in automotive electronics.
Product Description
Vishay BZM55C10-TR Zener Diode offers a nominal Zener voltage of 10 V with a ±6% tolerance, providing stable voltage regulation for electronic circuits. Designed as a single-element Zener diode in a compact 2-pin MicroMELF surface mount package, it supports high-density PCB layouts and automated assembly processes.
Featuring a maximum power dissipation of 500 mW and operating temperature up to 175°C, this diode is suitable for demanding industrial and automotive applications that require reliable voltage regulation over extended temperature ranges.
With a maximum reverse leakage current of 2 μA and a maximum Zener impedance of 15 ohms, the diode maintains power efficiency and voltage stability during operation.
The diode's physical dimensions of 2 mm length and 1.35 mm height optimize available board space while conforming to the automotive AEC-Q101 standard, making it ideal for automotive electronics and related industrial uses.
Applications include power supplies, voltage regulation circuits, industrial controls, automotive electronics, and other electronic devices requiring precise voltage stabilization.
Nominal Zener voltage of 10 V with ±6% tolerance. Maximum power dissipation of 500 mW. Surface mount 2-pin MicroMELF package for compact assembly. Maximum operating temperature of 175°C. Low maximum reverse leakage current of 2 μA.
Test current of 5 mA. Maximum Zener impedance of 15 ohms. Compliant with automotive standard AEC-Q101. Single element per chip design.
The BZM55C10-TR Zener Diode from Vishay represents a high-quality, reliable component for use in various industrial, automotive, and commercial electronic applications. Explore more products in our Electronics & Electricals, Discrete Semiconductors, and Zener Diodes categories on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 10 V with a tolerance of ±6%.
The maximum power dissipation rating is 500 mW, allowing for efficient energy handling.
The test current specified is 5 mA.
The maximum Zener impedance is 15 ohms, which helps maintain stable voltage regulation.
This diode uses a compact 2-pin MicroMELF surface mount package, suitable for automated assembly.
This model features a single element per chip design.
Yes, it conforms to the automotive standard AEC-Q101, making it suitable for automotive electronics.
The physical dimensions are 2 mm in length and 1.35 mm in height, optimizing board space.
It is suitable for applications including power supplies, voltage regulation circuits, and automotive electronics.
The diode configuration is single, designed for voltage regulation purposes.
