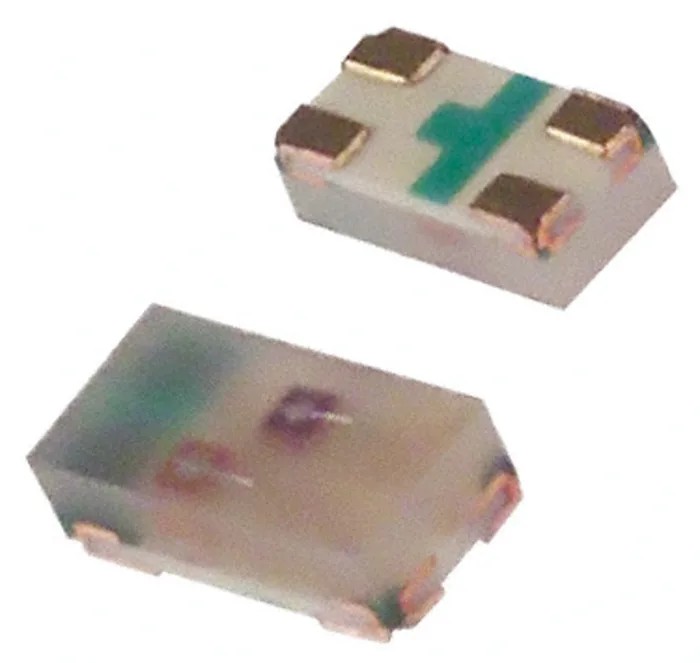

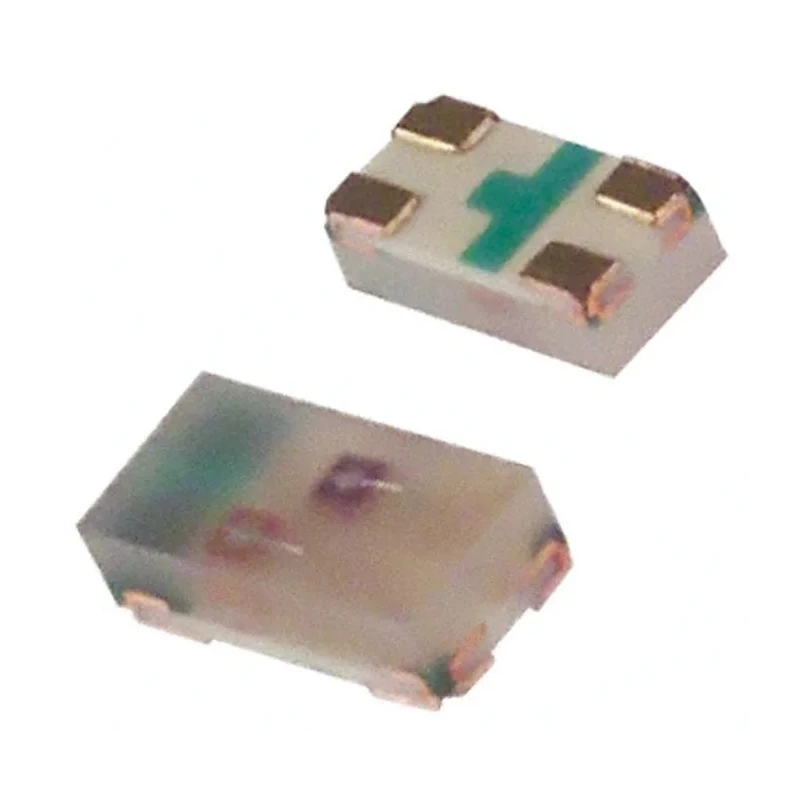

Broadcom Green, Red LED 1608 Surface Mount Bi-Colour SMT ChipLED HSMF-C163
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | HSMF-C163 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | HSMF-C16x |
| Number Of Leds | 2 |
| Maximum forward current | 20mA |
| Viewing angle | 120 ° |
| Package Type | 1608 |
| LED Colour | Green, Red |
| Dominant Wavelength | 525nm |
| Number of Pins | 4 |
| LED Luminosity | 45 mcd |
| Maximum Power Dissipation | 52mW |
| Lens Dimensions | 1.6 x 0.8 x 0.5 mm |
| Lens Shape | Rectangular |
| - Operating temperature | -40°C to +85°C |
| - Small package | 1.6 x 0.8 x 0.5 mm (0603 package) |
Key Features
- The device features two LEDs in a miniature 1.6 x 0.8 x 0.5 mm rectangular package.
- It operates with a maximum forward current of 20 mA and maximum power dissipation of 52 mW.
- Designed for surface mount technology with tape and reel packaging for efficient assembly.
- LED luminosity is rated at 45 mcd with a viewing angle of 120 degrees.
- Operating temperature ranges from -40°C to +85°C ensuring reliable performance in varied environments.
- The dominant wavelength is 525 nm, providing vibrant green and red colors.
- Compatible with reflow soldering processes for modern manufacturing.
- Suitable for keypad backlighting, symbol indication, LCD backlighting, pushbutton lighting, and front panel indicators.
Product Description
Broadcom HSMF-C163 is a bi-colour surface mount LED designed for compact electronic applications requiring green and red illumination. The LEDs in this series are housed in a 1608 SMT package measuring 1.6 x 0.8 x 0.5 mm, enabling high-density assembly on circuit boards. It supports a maximum continuous forward current of 20 mA and can dissipate power up to 52 mW, making it suitable for low power indicator uses.
The device features a clear rectangular lens with a wide viewing angle of 120 degrees and a luminous intensity of 45 mcd, enhancing visibility in diverse lighting conditions. With an operating temperature range from -40°C to +85°C, the HSMF-C163 maintains stable functionality in various industrial and commercial environments.
This LED is provided in tape and reel packaging suitable for automated surface mount production lines and is compatible with reflow soldering techniques. These characteristics make it ideal for applications such as keypad backlighting, symbol indicators, LCD backlighting, pushbutton illumination, and front panel indicators in electronic equipment.
The dominant wavelength of 525 nm delivers distinct green and red colors, contributing to bright and clear visual signals. The compact size and reliable electrical characteristics of this device make it a valuable component for embedded LED lighting solutions in electronic devices.
The device integrates two LEDs within a compact 1608 SMT package. Maximum forward current of 20 mA with power dissipation up to 52 mW. Wide 120 degree viewing angle with luminous intensity of 45 mcd. Robust operating temperature from -40°C to +85°C.
Compatible with automated assembly via tape and reel packaging and reflow soldering. Highly suited for diverse backlighting and indicator applications. Clear rectangular lens design optimizes light emission and visibility.
Bi-colour functionality supports green and red LED outputs within a single package. Explore our extensive range of LEDs and electronic components available at EnvMart for your industrial and commercial lighting solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current for this model is 20 mA.
The LED is housed in a 1608 package, measuring 1.6 x 0.8 x 0.5 mm.
It features a wide viewing angle of 120 degrees.
The luminous intensity of the HSMF-C163 is rated at 45 mcd.
It operates within a temperature range of -40°C to +85°C.
This model is suitable for keypad backlighting, symbol indication, LCD backlighting, pushbutton lighting, and front panel indicators.
It is provided in tape and reel packaging, which is suitable for automated surface mount production lines.
The dominant wavelength for the green and red colors is 525 nm.
The maximum power dissipation for the HSMF-C163 is 52 mW.
This model integrates two LEDs within its compact design.
The HSMF-C163 is designed for surface mount technology.
It belongs to the HSMF-C16x series of LEDs.
