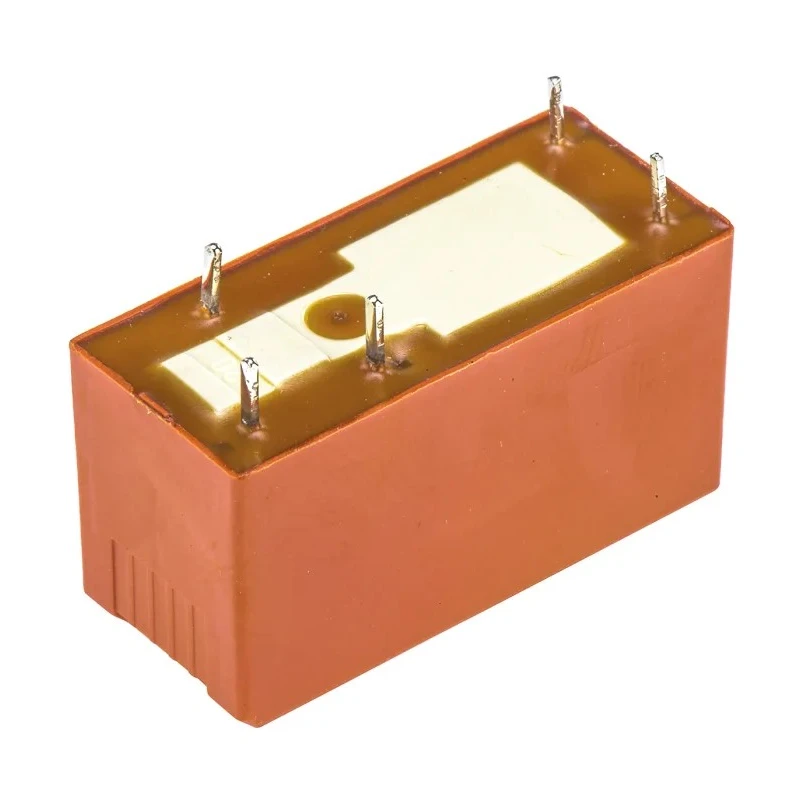

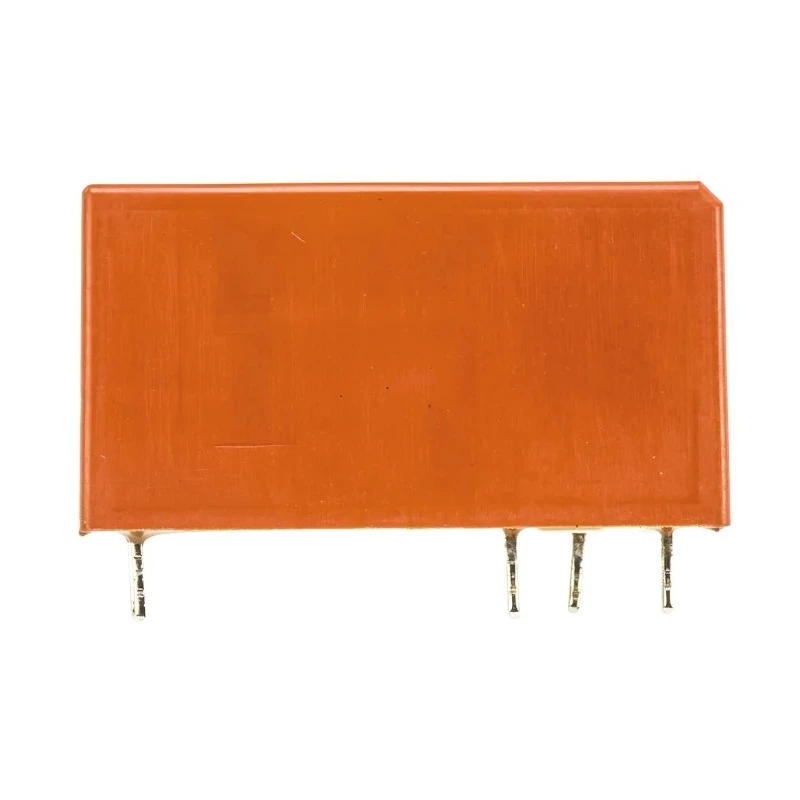

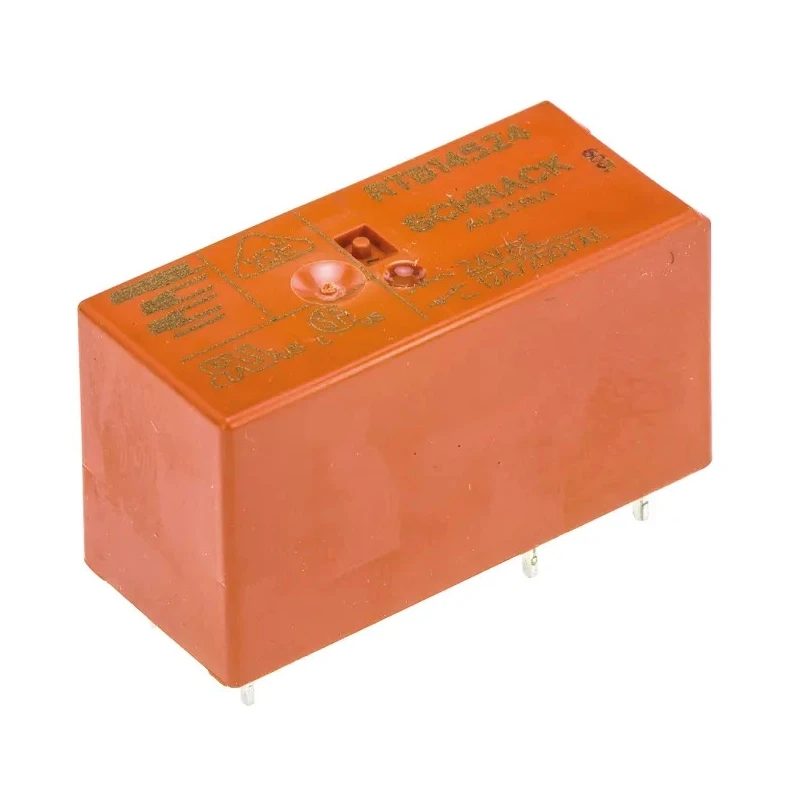

TE Connectivity PCB Power Relay 24V ac Coil 12A Switching Current SPDT RTB14524

TE Connectivity RTB14524 PCB Power Relay features a 24V alternating current coil with a switching current capacity of 12A and SPDT contact arrangement. This power relay is designed to provide reliable and efficient electrical control in industrial, automation, interface, domestic, security lighting, and heating system applications.

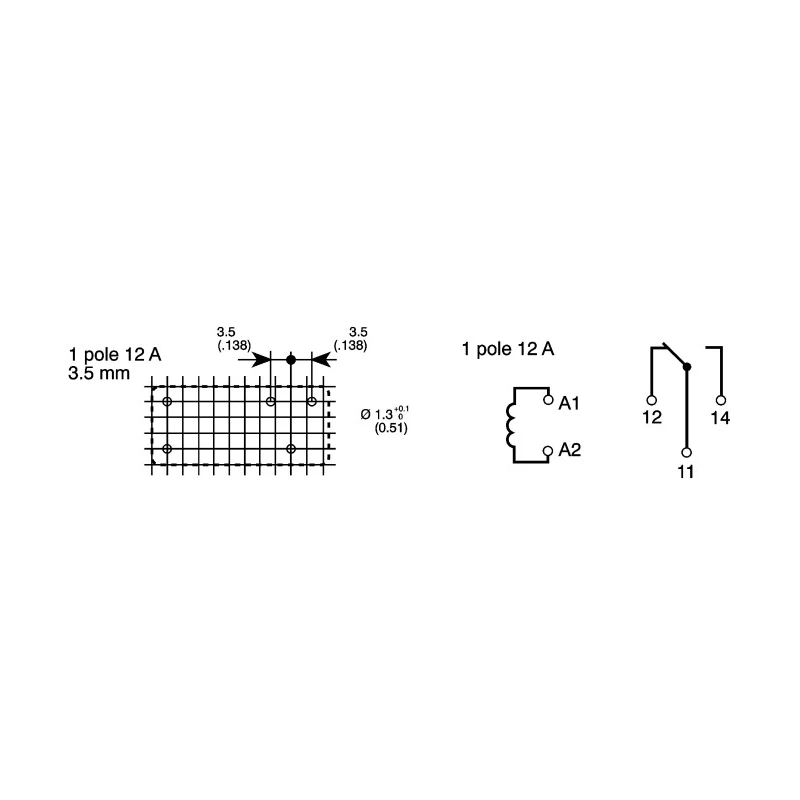

The relay is part of the RT1 series, supporting a PCB mount type with 3.5mm pinning and solder terminals, facilitating easy and stable installation on printed circuit boards.

Its compact size with 29mm length, 12.7mm width, and 15.7mm height allows seamless incorporation into various electronic assemblies without occupying excessive space. The contacts are gold plated to enhance electrical conductivity and resist corrosion ensuring long-term performance.

The specified coil power consumption of 500mW and coil resistance of 350 ohms deliver efficient power management. It operates reliably within environmental temperatures ranging from -40°C to 70°C, making it suitable for demanding industrial and laboratory environments.

Conforming to IEC 61810 standards and RoHS regulations, the relay meets international safety and environmental directives. Manufactured in Austria, it reflects robust design and premium quality standards.

Typical use cases include interfacing circuits, automation control systems, domestic appliances, security lighting circuits, and heating system components in industrial, commercial, and laboratory settings.

Operates efficiently with 24V AC coil voltage for diverse power applications. 12A switching current capacity supports medium to high load operations. SPDT contact configuration offers flexible switching options in control circuits.

Gold plated contacts improve reliability with enhanced conductivity and corrosion resistance. Compact dimensions enable versatile integration in PCB designs. Meets IEC 61810 safety standards and complies with RoHS environmental regulations.

Wide temperature range supports usage in harsh environmental conditions. Designed for solder terminal type mounting on PCBs for stable electrical connections. Manufactured in Austria ensuring quality manufacturing processes.
