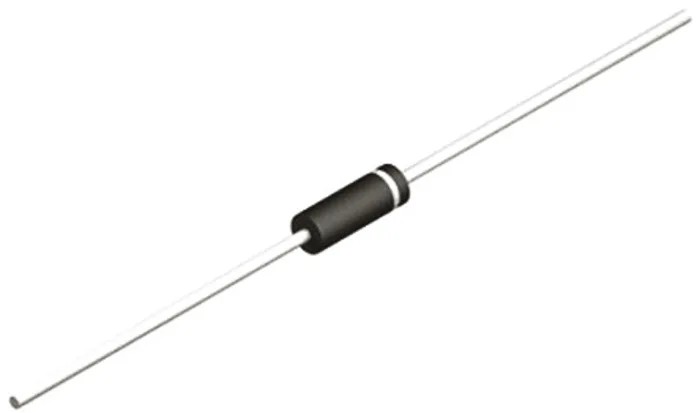

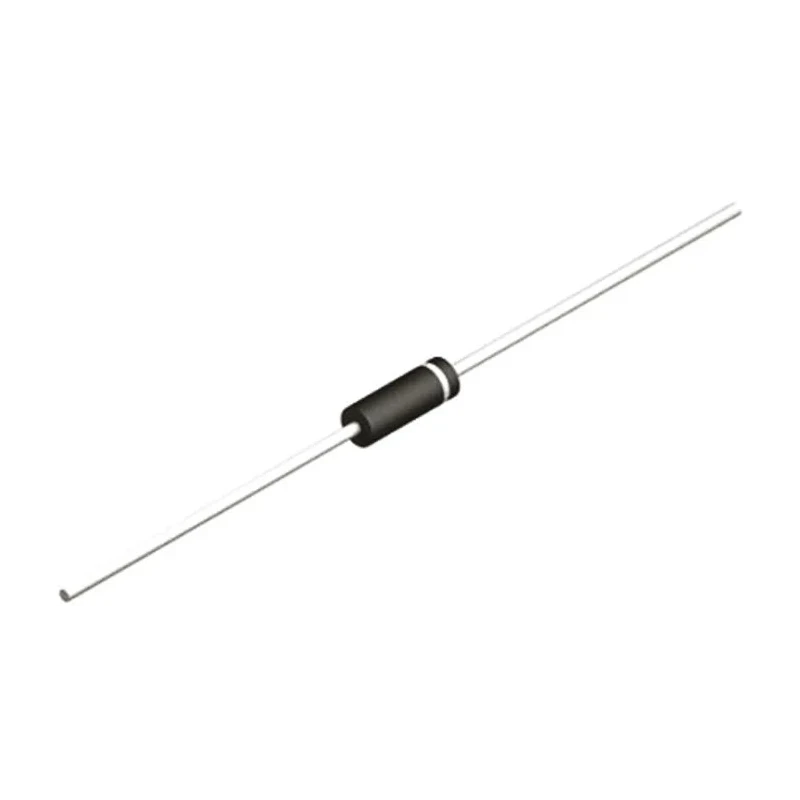

Vishay 1-Element Bi-Directional Transient Voltage Suppressor Diode 500 W, 2-Pin DO-204AC SA6.5CA-E3/54

Vishay SA6.5CA-E3/54 is a 1-element bi-directional transient voltage suppressor diode designed to protect electronic circuits from voltage surges and transient events. This TVS diode is housed in a DO-204AC through-hole package with 2 pins, providing an excellent solution for PCB mounting in various applications requiring reliable surge suppression.

The device features a single diode configuration capable of bi-directional operation with a high peak pulse power dissipation of 500 W, making it suitable for transient voltage suppression in sensitive electronics used in automotive systems, industrial controls, and consumer electronics.

Operating over a wide temperature range of -55°C to 175°C, this diode ensures consistent protection even under challenging environmental conditions. Its minimum breakdown voltage is 7.22 V with a maximum reverse stand-off voltage of 6.5 V. Clamping voltage of 11.2 V and a peak pulse current rating of 44.7 A offer robust defense against voltage spikes and electrostatic discharge (ESD).

The TVS Diode complies with automotive standard AEC-Q101, guaranteeing quality and performance standards for automotive electronics and other safety-critical applications. Its compact dimensions (Length: 7.6 mm, Diameter: 3.6 mm, Height and Width: 3.3 mm) make it a space-efficient component for use on printed circuit boards.

Single diode configuration with bi-directional transient voltage suppression. 500 W Peak pulse power dissipation for effective surge protection. Minimum breakdown voltage of 7.22 V and reverse stand-off voltage of 6.5 V.

Axial lead DO-204AC package with 2 pins for through-hole mounting. Wide operating temperature range from -55°C to 175°C. Clamping voltage of 11.2 V and peak pulse current of 44.7 A. ESD protection provided for device reliability.

Automotive standard AEC-Q101 compliant. Compact size: 7.6 mm length, 3.6 mm diameter, 3.3 mm height and width. Manufactured in China with stringent quality standards.

This Vishay transient voltage suppressor diode is ideal for industrial, automotive, laboratory, and consumer electronic circuit protection applications. Available in a convenient through-hole package, it supports efficient circuit board layout and manufacturing processes.
