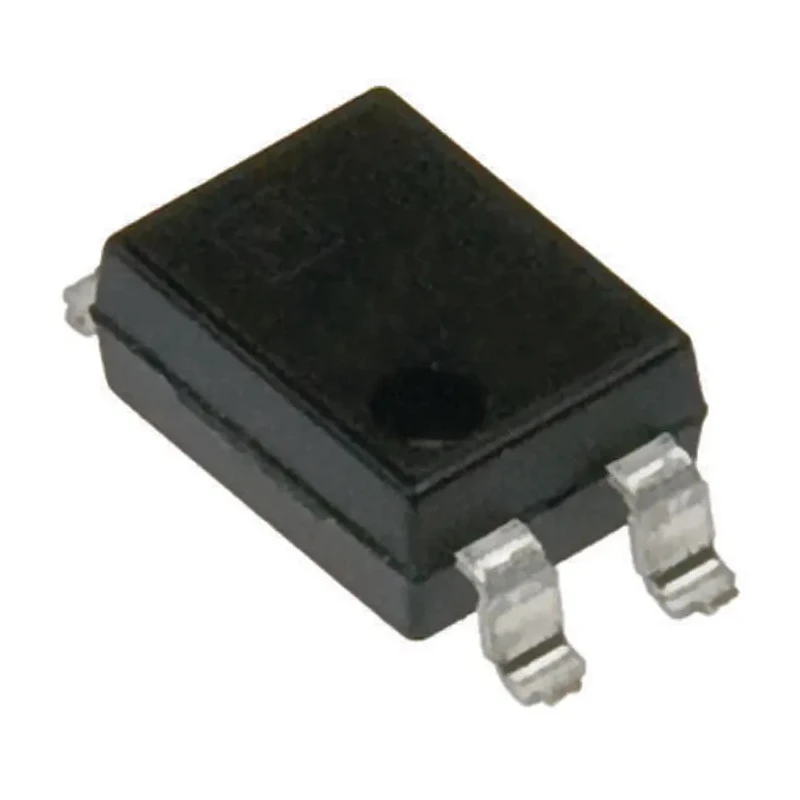

Panasonic Solid State Relay Through Hole Mount 1.1A Load 60V Load 5V dc Control AQY212GHA

Panasonic AQY212GHA Solid State Relay is a high capacity PhotoMOS relay designed for industrial and electronic applications requiring reliable switching of low-level analog signals. This solid state relay supports a maximum load current of 1.1A with a load voltage of 60V, controlled via a 5V DC signal, providing efficient control and precise switching.

Manufactured to be environmentally friendly, it features a compact four-pin DIP through hole design allowing for easy PCB mounting and excellent board space savings. With a robust isolation voltage of 5KV between coil and contact, it ensures safety and long service life. The relay operates efficiently across a broad temperature range from -40°C up to 85°C, making it suitable for harsh industrial environments.

This model includes a SPST contact configuration with low on-resistance of 2.5Ω and minimal off-state leakage current of 1μA. Its Photo MOSFET output enables low offset voltages, ideal for sensitive instrumentation and control systems. Being RoHS compliant, it supports environmentally conscious manufacturing and use.

Typical applications include measuring instruments, security and disaster-preventing systems, alarm and sensing equipment, and I/O for various control and automation devices in industrial and laboratory settings.

The product is manufactured in Thailand, assuring high-quality standards and durability. The relay supports a maximum load current of 1.1 amperes. Designed for through hole mounting ensuring reliable installation. Operates with load voltages up to 60 volts and control voltages up to 5 V DC.

Features a single pole single throw (SPST) contact configuration. Offers high sensitivity and low power consumption for efficient control. Compact dimensions measuring 6.4mm length, 5mm width, and 2.9mm height. Operates reliably in temperature ranges from -40°C to 85°C.

Low off-state leakage current of 1 microampere and on-state resistance of 2.5 ohms. Photo MOSFET output type ensuring low closed-circuit offset voltage ideal for analog signals. Certified RoHS compliant and manufactured in Thailand.
