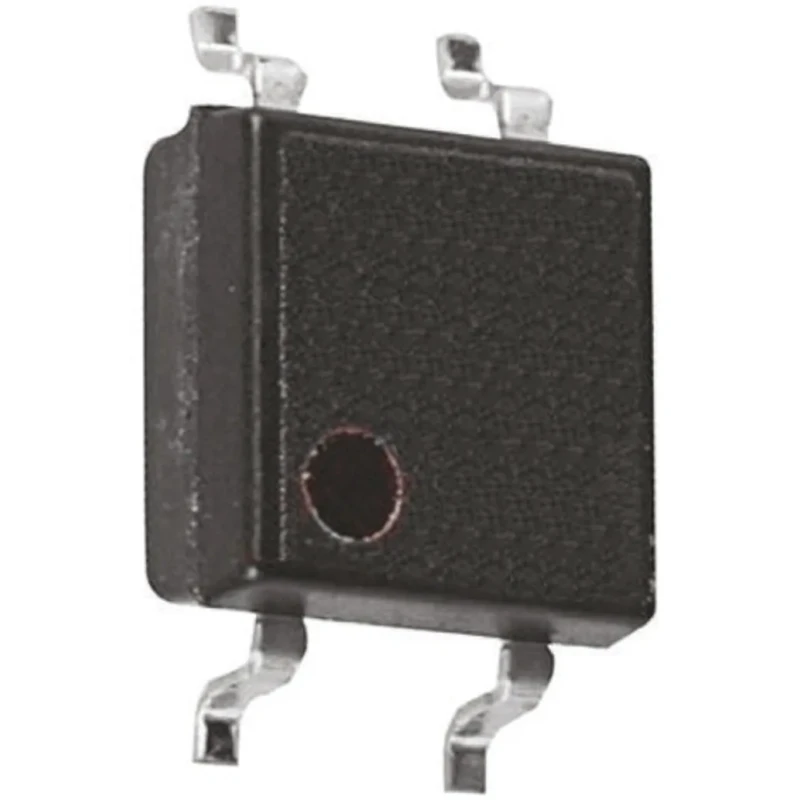

Panasonic Solid State Relay Surface Mount 0.12 A Load Current 350 V Load Voltage 5V DC Control AQY280S

Panasonic AQY280S solid state relay is engineered for low-power switching control in electronic circuits. The surface mount design enables compact and efficient placement in automated assemblies. With a maximum load current of 0.12 A and a load voltage rating of 350 V, this relay suits a range of signal-level switching needs in industrial, automation, and commercial equipment.

Operating over a temperature range of -40°C to 85°C, the AQY280S ensures robust performance in harsh environments. Its SPST contact configuration and photo MOSFET output type facilitate reliable AC and DC current switching with very low on-state resistance of only 20 Ω. The relay’s low off-state leakage current of 1 μA minimizes energy loss when inactive.

The device operates on a control voltage from 1.5 to 5 V DC, making it compatible with standard logic level signals. Its small footprint with dimensions of 5 mm width, 4.4 mm length, and 2.1 mm height makes it ideal for dense circuit board layouts.

Panasonic’s AQY series is recognized for controlling low-level analog signals accurately and efficiently. This model complies with RoHS standards ensuring environmental safety. It is suited for industrial automation systems, process control equipment, instrumentation, and signal conditioning applications.

Supports maximum load current of 0.12 amperes. Designed for surface mount installation for compact assembly. Operates with load voltage rating up to 350 volts. Control voltage input range of 1.5 to 5 volts DC. Low off-state leakage current of 1 microampere reduces power loss.

SPST contact configuration for single circuit switching. On-state resistance of 20 ohms enhances conduction efficiency. Wide operating temperatures of -40°C to 85°C ensure versatility. Compact dimensions ideal for dense electronic assemblies.

Environmentally compliant with RoHS standards.

This Solid State Relay is an excellent choice for electronics designers requiring reliable signal switching in compact packages. Browse EnvMart’s full range of relays and electrical components for comprehensive automation and control solutions.
