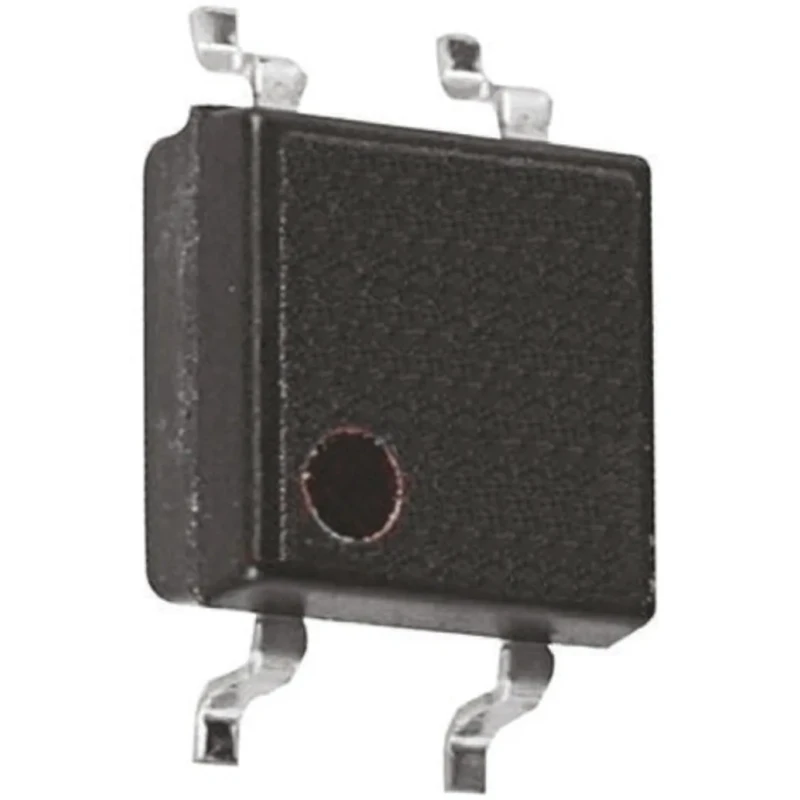

Panasonic Solid State Relay 0.5 A Load, Through Hole Mount, 60 V Load, 5V DC Control AQY282S

Panasonic AQY282S is a compact solid state relay designed for precise control of low-level analog signals in industrial and electronic applications. It supports a maximum load current of 0.5 A and a maximum load voltage of 60 V, making it suitable for switching low current AC or DC loads efficiently. The relay features a through hole mount for easy assembly onto printed circuit boards and employs a photo MOSFET output type to ensure fast and reliable operation.

The device operates with a control voltage ranging from a minimum of 1.5 V up to 5 V DC, providing effective control in automation and signal conditioning systems. It has a very low off-state leakage current of 1 μA, reducing power consumption and enhancing system efficiency. Its low on-state resistance of 0.85 Ω minimizes voltage drop and heat generation during conduction.

Operating temperatures from -40°C to 85°C enable use in various industrial environments, including automation, process control, and instrumentation. The relay’s dimensions are compact, measuring 4.4mm in length, 5mm in width, and 2.1mm in height, allowing integration into space-constrained designs.

The SPST contact configuration supports AC/DC switching functions, expanding its versatility across multiple applications. This model adheres to RoHS compliance standards and is manufactured in Thailand.

Typical applications include industrial automation systems, electronic signal conditioning, and control gear installations requiring reliable, silent, and fast switching components. The Panasonic AQY282S solid state relay enhances operational reliability while reducing mechanical wear associated with electromechanical relays.

Supports maximum load current of 0.5 amperes for reliable operation. Designed for through hole mounting to ensure secure installation. Maximum load voltage rating of 60 volts accommodates various applications. Operates with a minimum control voltage of 1.5V and maximum control voltage of 5V DC.

Low off-state leakage current of 1 microampere for energy efficient performance. On state resistance is low at 0.85 ohms to minimize power loss. Wide operating temperature range from -40°C up to 85°C. Compact dimensions with length 4.4mm, width 5mm, and height 2.1mm.

Single pole single throw (SPST) contact configuration with AC/DC switching function. Photo MOSFET output type ensuring high-performance solid state switching. Explore more Solid State Relays and related components in EnvMart’s Electronics & Electricals category for professional and industrial applications.
