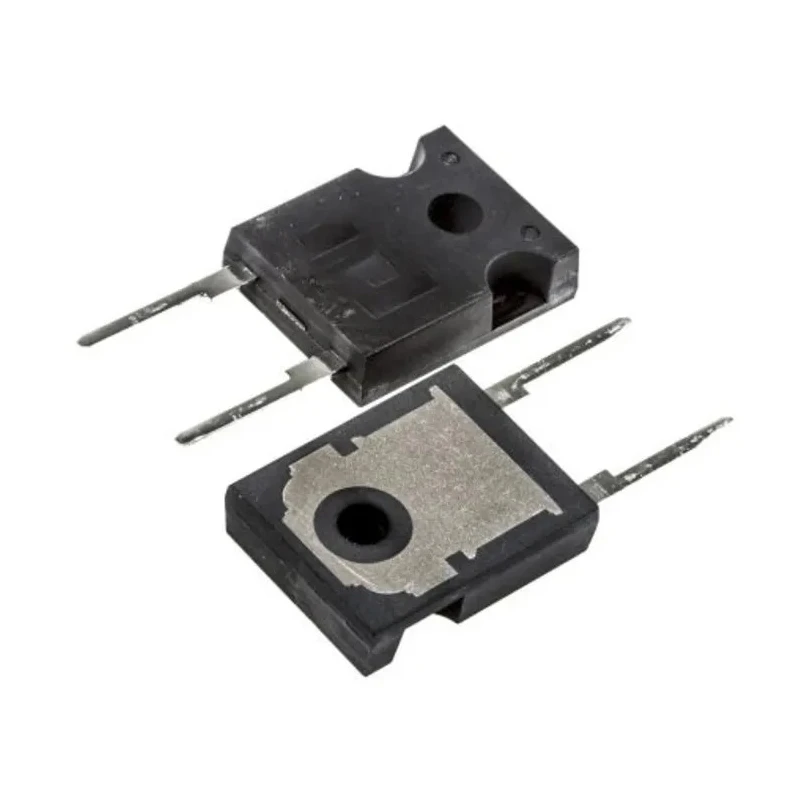

STMicroelectronics 1200 V 15 A Diode Switching 2-Pin DO-247 STTH1512W

STMicroelectronics STTH1512W is a high-performance diode designed for switching applications requiring a blocking voltage up to 1200 V and a continuous forward current of 15 A. Its robust DO-247 through hole package ensures mechanical stability and easy mounting on printed circuit boards.

This diode features a single diode configuration optimized for efficient switching rectification, achieving a maximum forward voltage of 2.1 V which reduces conduction losses during operation. Its low peak reverse current of 100 μA further enhances the efficiency and reliability of electronic circuits.

The device supports a wide operating temperature range from -40°C to 175°C, making it suitable for demanding industrial and power electronics environments. With a peak non-repetitive forward surge current capability of 200 A, it can withstand transient overloads without damage.

Physically, the diode dimensions include a length of 15.75 mm, width of 5.15 mm, height of 20.15 mm, and pin diameter of 3.75 mm, fitting typical industrial board layouts. Its peak reverse recovery time of 105 ns allows it to operate efficiently in high frequency switching power supplies and converters.

STTH1512W complies with RoHS environmental directives, ensuring the device is free from hazardous substances. Note, this diode is not qualified for automotive standard applications.

Designed for through hole mounting with DO-247 package for robust mechanical stability. Single diode configuration optimized for switching rectifier applications. Maximum forward voltage is 2.1 V ensuring efficient conduction.

Low peak reverse current of 100 μA minimizes leakage and power loss. Operating temperature range from -40°C to 175°C supports harsh environments. Peak non-repetitive forward surge current rating of 200 A handles transient overloads.

Compact dimensions with length 15.75 mm, width 5.15 mm, height 20.15 mm, and 3.75 mm diameter pins. Maximum peak reverse recovery time is 105 ns enabling high frequency switching. RoHS compliant ensuring environmental safety and regulatory compliance.

Not suitable for automotive standard applications.

This diode is widely used in industrial semiconductor, power electronic circuits, and electronic component manufacturing. It is ideal for switching power supplies, inverters, and automotive electronics requiring high voltage and current handling with fast switching speeds.
