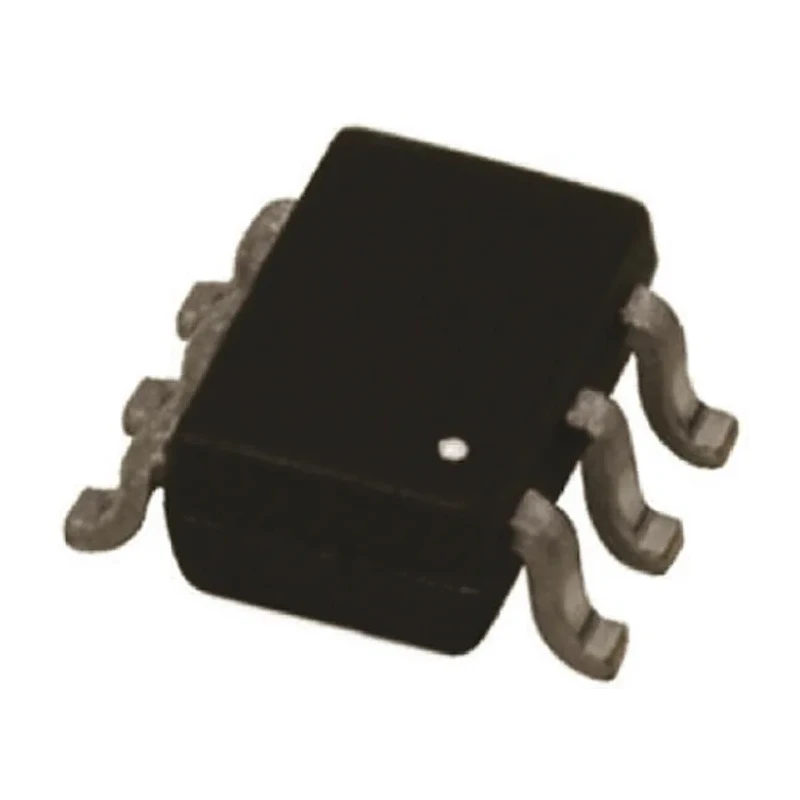

onsemi Small Signal PNP Bipolar Transistor 200 mA, 40 V, 6-Pin SOT-23 FMB3906

The onsemi FMB3906 is a small signal PNP bipolar junction transistor designed in a 6-pin SOT-23 surface mount package. It supports a maximum collector current of 200 mA and a maximum collector-emitter voltage of 40 V, making it suitable for various medium-power switching and amplification applications in electronic circuits.

This transistor features a maximum transition frequency of 200 MHz, ensuring reliable performance in moderate to high-frequency applications such as signal processing, communications, and amplification circuits. Its maximum power dissipation of 700 mW allows it to handle moderate power loads while maintaining operational stability.

The package dimensions, 3 mm in length, 2.1 mm in width, and 1.1 mm in height, make the FMB3906 ideal for compact circuit designs, facilitating space-efficient printed circuit board layouts. The transistor operates effectively in a wide temperature range from -55°C to 150°C, ensuring functionality in industrial, automotive, and commercial electronic environments.

Additional characteristics include an isolated transistor configuration and a minimum current gain (hFE) of 30, ensuring consistent amplification. The PNP polarity supports complementary circuit designs where PNP and NPN transistors are used together.

This device is generally used in switching, amplifying, and signal modulation applications within discrete semiconductor components. Its surface mount mounting type supports modern manufacturing processes aimed at increasing production efficiency and reducing assembly costs.

Maximum 200 mA collector current for effective signal control. 40 V collector-emitter voltage supports medium voltage circuits. 200 MHz transition frequency suitable for high-frequency circuits. 700 mW power dissipation enhances reliability under load.

Compact 6-pin SOT-23 package for space-saving applications. Operating temperature range from -55°C to 150°C for harsh environment resilience. Surface mount package allows automated assembly. PNP polarity for complementary circuit implementation.

Isolated transistor configuration for stable operation. Minimum current gain of 30 for amplification efficiency. Explore and select from a wide range of Bipolar Transistors and semiconductors at EnvMart for your industrial, laboratory, electronic design, and manufacturing needs.
