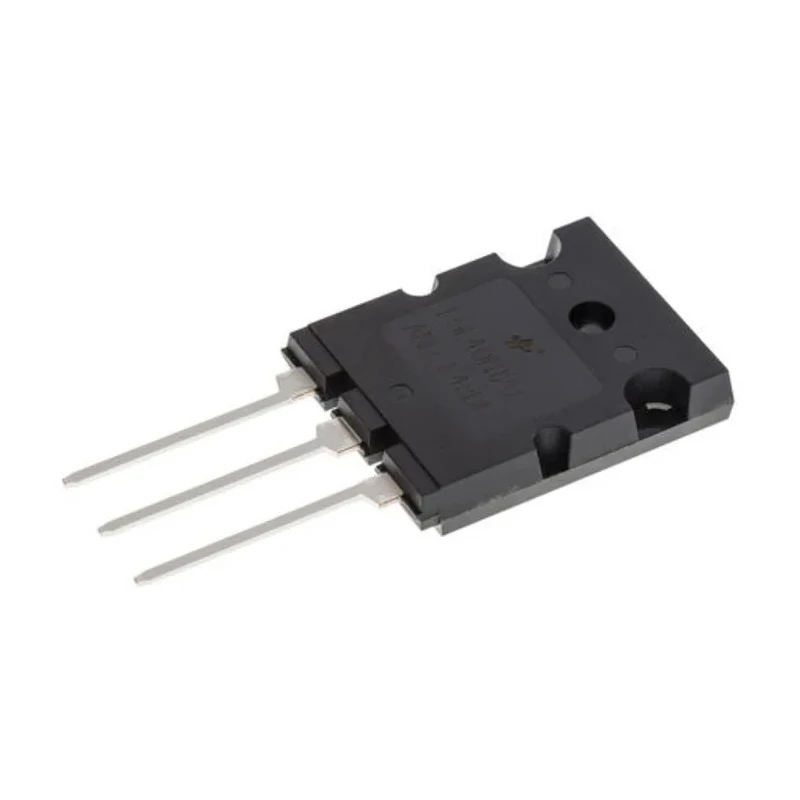

onsemi Power PNP Bipolar Transistor TO-264 Package 17A 250V 150W FJL4215OTU

onsemi FJL4215OTU is a power PNP bipolar junction transistor designed for high current and voltage applications. It is housed in a 3-pin TO-264 package with through hole mount type, providing excellent mechanical strength and thermal dissipation. This transistor supports a maximum DC collector current of 17 amperes and can withstand a collector emitter voltage up to 250 volts. It has a power dissipation capacity of 150 watts, making it suitable for demanding power circuits.

The FJL4215OTU transistor polarity is PNP and it features a single transistor configuration. It offers a minimum DC current gain (hFE) of 55 and a maximum transition frequency of 30 MHz, enabling its use in a variety of amplification and switching scenarios.

The device operates reliably at temperatures up to 150°C and has compact dimensions of approximately 46 mm height, 20 mm length, and 2 mm width. The maximum collector base voltage is rated at -250 V, while the maximum emitter base voltage is -5 V, adding to its robustness in power circuits.

This transistor type finds common applications in industrial, manufacturing, and electronic equipment requiring efficient power control. It is often leveraged in power amplifiers, motor control circuits, and general electronic power management.

Supports maximum DC collector current of 17 amperes. Maximum collector emitter voltage rating of 250 volts ensures high-voltage operation. Power dissipation rating of 150 watts enables efficient heat handling. PNP transistor polarity with single transistor configuration.

Designed for through hole mount with 3-pin TO-264 package for robust mechanical stability. Maximum operating temperature up to 150 degrees Celsius for reliable performance. Minimum DC current gain of 55 supports effective amplification.

Maximum transition frequency of 30 MHz suits moderate frequency applications. Compact dimensions enhance PCB layout flexibility. Wide usage in power amplification, switching, and electronic control systems. Explore more power semiconductor components in the Bipolar Transistors category at EnvMart for your industrial and electronic design needs.
