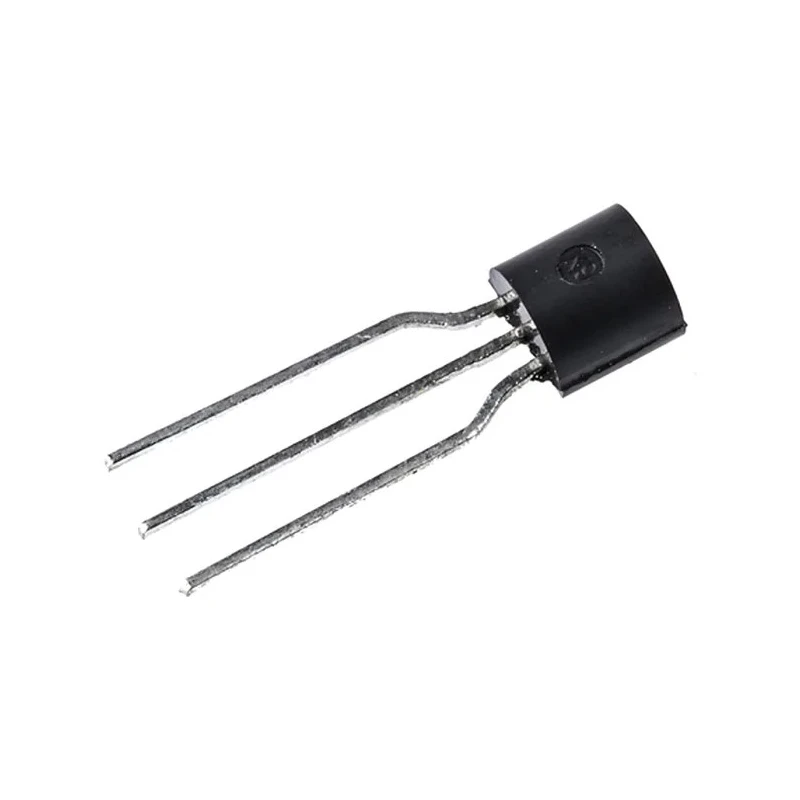

onsemi Small Signal NPN Transistor 1 A 60 V 3-Pin TO-92 KSD1616AYTA

The onsemi KSD1616AYTA is a small signal NPN bipolar junction transistor designed with a collector current rating of 1 A and a maximum collector-emitter voltage of 60 V, packaged in a compact 3-pin TO-92 form factor. This transistor is optimized for through-hole mounting, making it ideal for a range of electronic applications including signal amplification, switching, and general-purpose industrial electronics.

This transistor exhibits a maximum power dissipation of 750 mW and can operate reliably at temperatures up to 150°C, ensuring rugged performance in demanding environments often found in industrial, manufacturing, and laboratory equipment. The device features a minimum DC current gain (hFE) of 81, providing efficient amplification capabilities in various semiconductor circuits.

With a maximum collector-base voltage of 120 V and maximum emitter-base voltage of 6 V, the KSD1616AYTA transistor offers versatility for many analog and digital electronics projects. Its transition frequency of 1 MHz enables effective operation in moderate frequency applications.

The compact size defined by a height of 21.77 mm, width of 4.19 mm, and length of 5.2 mm allows for easy integration into circuit boards without occupying excessive space, consistent with industry-standard TO-92 packaging. The transistor is designed for standard three-pin connection, facilitating straightforward circuit assembly.

This product is suitable for use in industrial, laboratory, construction, automotive, and manufacturing sectors where reliable transistor performance is critical. Its design supports diverse semiconductor applications needing robust NPN Bipolar Transistors for switching and amplification.

Designed for through-hole mounting in electronic devices. Handles maximum collector current of 1 A. Maximum voltage ratings: 60 V collector-emitter and 120 V collector-base. Power dissipation capability up to 750 mW. Operating temperature up to 150°C provides industrial reliability.

Compact 3-pin TO-92 package for flexible circuit design. Suitable for signal amplification and switching applications. Explore more bipolar transistor solutions and electronic components at EnvMart for innovative and reliable products meeting industrial quality standards.
