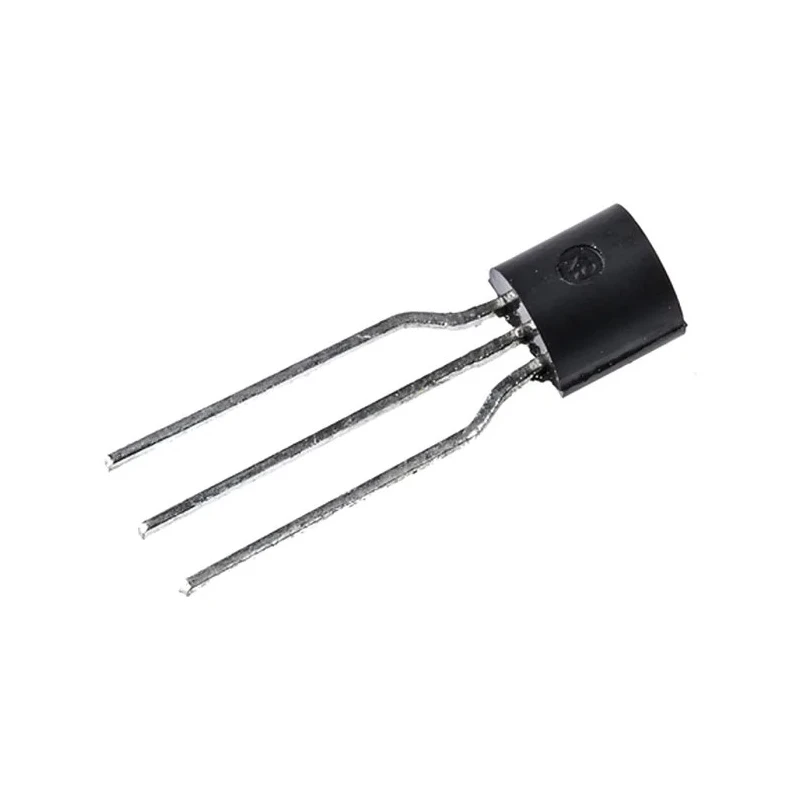

onsemi Small Signal NPN Transistor 1 A 60 V TO-92 Through Hole KSD1616AYTA

onsemi KSD1616AYTA is a Small Signal NPN Bipolar Junction Transistor designed for electronic circuits requiring reliable switching and amplification. Featuring a maximum collector current of 1 ampere and collector emitter voltage of 60 volts, this device supports diverse low to medium voltage applications in consumer electronics, industrial controls, and embedded systems.

The transistor is housed in a compact TO-92 3-pin package for convenient through-hole mounting, offering flexibility in prototype and production PCB layouts. With a minimum DC current gain (hFE) of 81 and a transition frequency of 1 MHz, it ensures effective signal amplification and switching speed.

Its power dissipation rating of 750 milliwatts and maximum operating temperature of 150°C provide dependable thermal performance even under demanding conditions. Typical applications include amplification stages, switching regulators, and signal processing modules within industrial, electronics manufacturing, and automotive electronic control units.

Key features include its single transistor configuration, NPN polarity, and a maximum emitter base voltage of 6 volts. The compact dimensions (Height 21.77 mm, Width 4.19 mm, Length 5.2 mm) allow use in space-restricted circuits without sacrificing performance.

Maximum collector current 1 A for sustained operation. Collector emitter voltage rating of 60 V for versatile low-medium voltage use. 750 mW power dissipation rating for thermal stability. Minimum current gain (hFE) of 81 for efficient signal amplification.

Transition frequency 1 MHz meets medium frequency requirements. TO-92 package with 3 pins enables easy through-hole PCB mounting. Operating temperature up to 150°C ensures rugged performance. NPN transistor polarity for common circuit topologies.

Compact size suited for diverse embedded system designs.

This transistor belongs to the KSD1616A series from onsemi and is not automotive standard certified. It is ideal for industrial, laboratory, electronic manufacturing, and HVAC related circuit applications.
