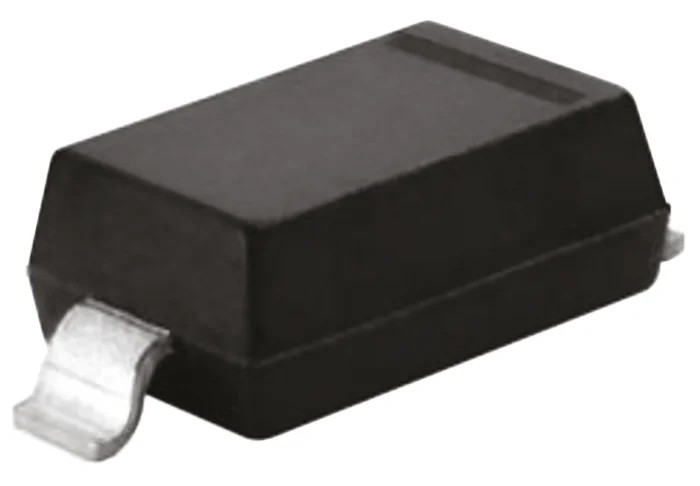

onsemi 1.14 V Zener Diode Single 500 mW 5% Surface Mount SOD-123 SZMMSZ5244ET1G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1.35mm |
| Length | 3.86mm |
| Model | SZMMSZ5244ET1G |
| Mount Type | Surface |
| Series | SZMMSZ52xxxT1G |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-123 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 500mW |
| Diode Configuration | Single |
| Test Current It | 9mA |
| Maximum Reverse Leakage Current | 100nA |
| Nominal Zener Voltage Vz | 14V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 15Ω |
| Surface Mount case | SOD-123 |
Key Features
- The device features a nominal Zener voltage of 14 V and operates at a power dissipation of 500 mW.
- It has a surface mount SOD-123 package type with 2 pins for efficient PCB integration.
- The Zener diode exhibits a voltage tolerance of ±5% ensuring precise voltage regulation.
- Tested at 9 mA test current with a maximum Zener impedance of 15 Ohms.
- Operates across a temperature range from -55°C to 150°C, suitable for demanding environments.
- Maximum reverse leakage current is 100 nA, providing high reliability in circuits.
- Compact dimensions with length 3.86 mm and height 1.35 mm allow space-efficient mounting.
- Complies with RoHS standards for environmental safety and quality assurance.
Product Description
onsemi SZMMSZ5244ET1G is a single Zener diode designed for voltage regulation with a nominal Zener voltage of 14 V and maximum power dissipation of 500 mW. This diode uses a surface mount SOD-123 package with 2 pins, making it suitable for automated PCB assembly in industrial and electronic applications.
The device features a voltage tolerance of ±5% and a maximum Zener impedance of 15 Ohms, ensuring stable voltage regulation performance in circuits operating at a 9 mA test current.
Designed to operate reliably under temperatures from -55°C up to 150°C, it supports robust application environments including industrial electronics and power supply protection. The maximum reverse leakage current is only 100 nA, contributing to energy efficiency and reduced leakage losses.
Compact size with dimensions length 3.86 mm and height 1.35 mm allows use in high-density PCB designs, conserving space on modern electronic equipment. The diode configuration is single element, suitable for voltage regulator roles.
The surface mount package type SOD-123 supports high-volume manufacturing processes. It meets RoHS compliance ensuring it is free from hazardous substances. The device is part of the SZMMSZ52xxxT1G series by onsemi, known for quality semiconductor components.
Applications include electronic power supplies, industrial automation, consumer electronics, and voltage reference circuits.
This semiconductor diode from onsemi provides reliable performance for diverse electronics and electrical system designs. Finding it useful for design engineers focusing on compact, low-power voltage regulation circuits.
