| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 2.72mm |
| Length | 5.2mm |
| Model | 1N4746ATR |
| Mount Type | Through Hole |
| Series | 1N47 |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-41 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 1W |
| Diode Configuration | Single |
| Test Current It | 14mA |
| Maximum Reverse Leakage Current | 5μA |
| Nominal Zener Voltage Vz | 18V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 20Ω |

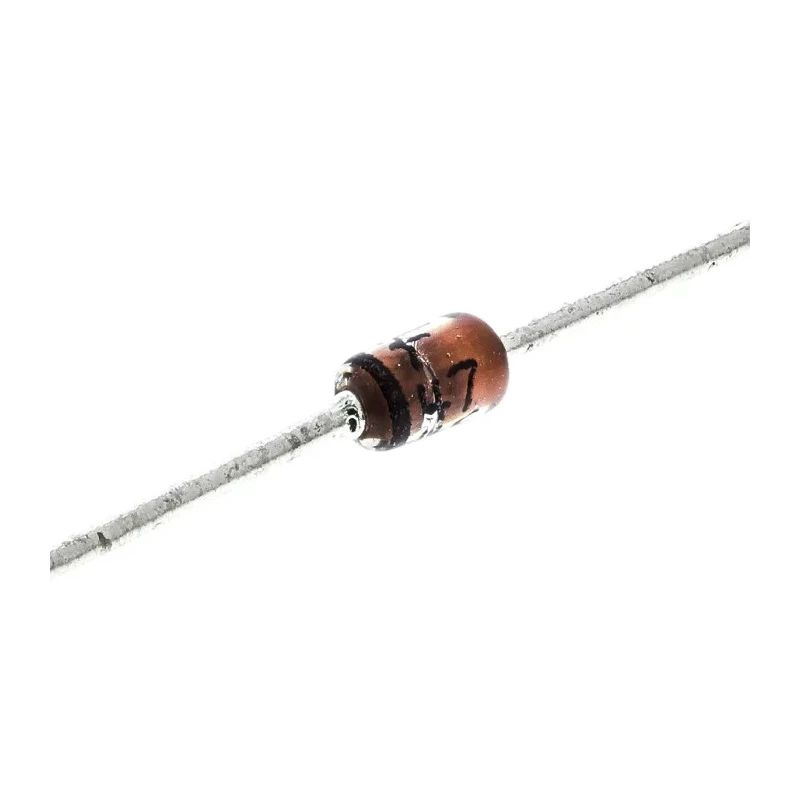

onsemi 1N4746ATR Zener Diode is a high-quality general purpose semiconductor device with a nominal Zener voltage rating of 18 volts and power dissipation capacity of 1 watt. It features a single diode configuration with 2-pin DO-41 through hole mounting package, making it suitable for a wide array of electronic, electrical, and industrial applications.
This Zener diode provides voltage regulation and stabilization in circuits, protecting sensitive components from voltage surges and fluctuations. Its maximum Zener impedance of 20 ohms and low maximum reverse leakage current of 5 microamperes support efficient and reliable performance in varied operating conditions.
With an operating temperature between -65°C and 200°C, the 1N4746ATR meets demands for use in harsh industrial, manufacturing, and electronic component environments. The device’s test current of 14 mA ensures quality and consistency for designers and engineers.
Compact physical dimensions including a height of 2.72 mm and length of 5.2 mm enable versatile PCB layouts with through hole mounting. Nominal Zener voltage of 18 volts ensures stable voltage regulation. Capable of dissipating up to 1 watt of power for reliable operation.
Package type DO-41 with 2-pin configuration facilitates through hole mounting. Features a maximum Zener impedance of 20 ohms and maximum reverse leakage current of 5 microamperes. Operates effectively in temperature range from -65°C to 200°C for diverse industrial environments.
Test current rating is 14 mA to verify diode electrical characteristics. Single element per chip design suitable for discrete semiconductor applications. Designed without automotive standard compliance for general purpose usage.
Compact size with height of 2.72 mm and length of 5.2 mm.
This product is ideal for use in electronic manufacturing, power supply regulation, industrial instrumentation, and laboratory electronic applications. onsemi’s 1N4746ATR offers dependable quality and performance for industrial semiconductor usage.
Browse additional onsemi Zener Diodes and related semiconductor components available at EnvMart for your precise industrial and engineering requirements.
