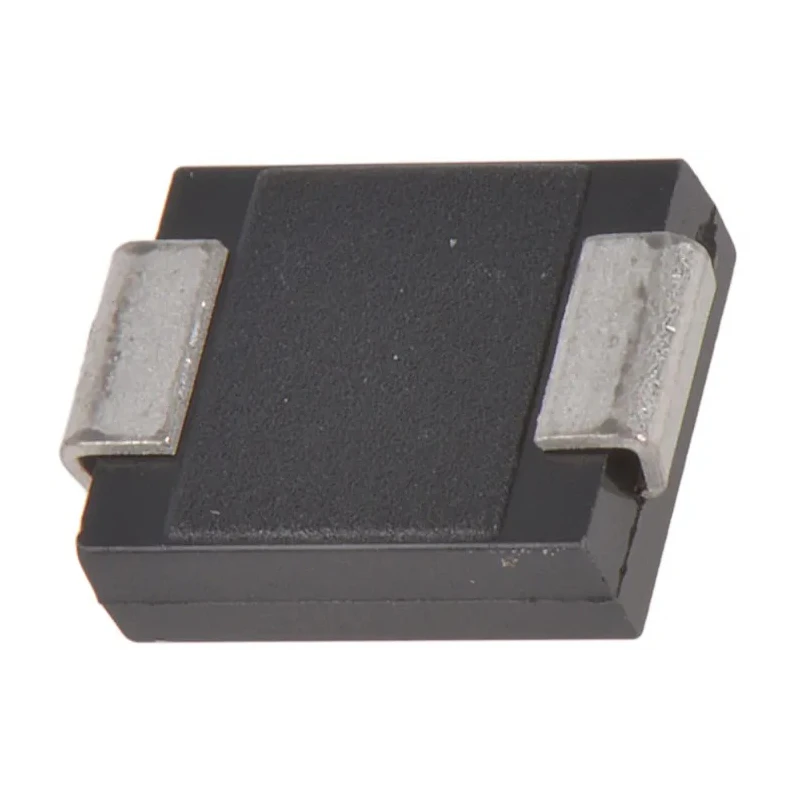

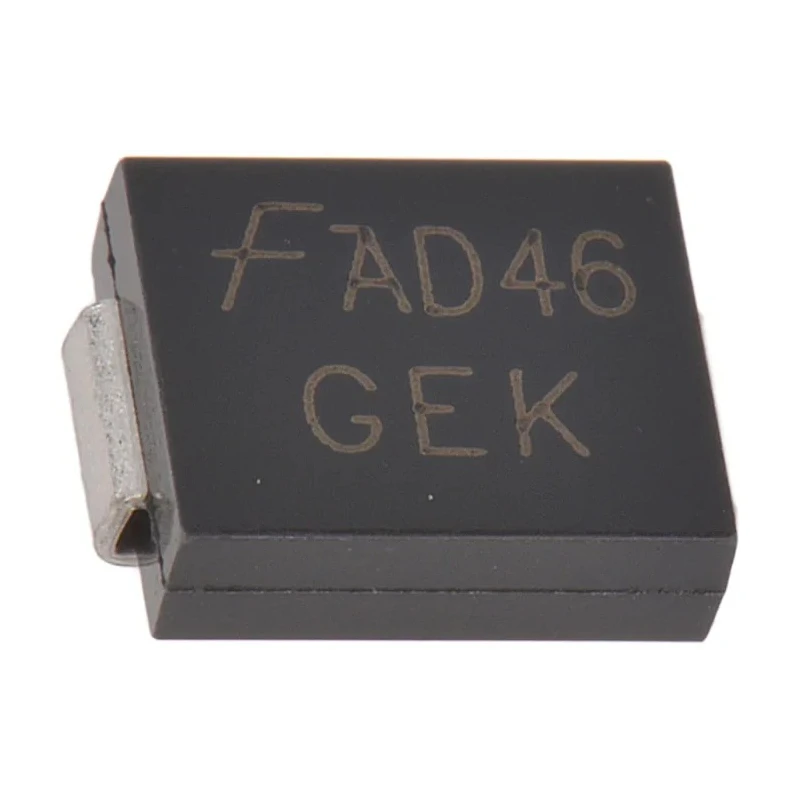

Taiwan Semiconductor 1-Element Bi-Directional TVS Diode Surface Mount 1.5 kW Peak Pulse Power 2-Pin DO-214 SMCJ14CA

Free Delivery in India | Lowest Global Shipping Charges

Taiwan Semiconductor 1-Element Bi-Directional TVS Diode Surface Mount 1.5 kW Peak Pulse Power 2-Pin DO-214 SMCJ14CA

Name: Taiwan Semiconductor 1-Element Bi-Directional TVS Diode Surface Mount 1.5 kW Peak Pulse Power 2-Pin DO-214 SMCJ14CA
Brand: Taiwan Semiconductor
SKU: 373497
Price: 0.33 USD
Availability: InStock



Category TVS Diode Brand Taiwan Semiconductor Condition New

Specifications

Country of Origin	India
Brand	Taiwan Semiconductor
Height	2.75mm
Length	7.15mm
Model	SMCJ14CA
Width	6.25mm
Mount Type	Surface
Series	SMCJ
Maximum Operating Temperature	150°C
Package Type	DO-214
Minimum Operating Temperature	-55°C
Standards/Approvals	FBI
Pin Count	2
Number of Elements per Chip	1
Clamping Voltage VC	23.2V
Diode Configuration	Single
Direction Type	Bi-Directional
Minimum Breakdown Voltage Vbr	15.6V
Maximum Reverse Stand-off Voltage Vwm	14V
Peak Pulse Power Dissipation Pppm	1.5kW
Test Current It	1mA
Maximum Peak Pulse Current Ippm	64.7A
Maximum Reverse Leakage Current	5μA

Key Features

Designed for bi-directional protection with a single diode element.
Surface mount package type DO-214 with 2 pins for easy PCB assembly.
Maximum peak pulse power dissipation of 1.5 kW ensures robust protection against voltage spikes.
Operating temperature range from -55°C to 150°C suitable for industrial applications.
Low maximum reverse leakage current of 5μA enhances performance efficiency.
Minimum breakdown voltage of 15.6 V and maximum reverse stand-off voltage of 14 V.
Clamping voltage of 23.2 V for rapid voltage spike suppression.
Compact dimensions with length 7.15 mm, width 6.25 mm, and height 2.75 mm.

Product Description

Taiwan Semiconductor SMCJ14CA is a 1-element bi-directional transient voltage suppressor (TVS) diode providing surge protection to electronic circuits with a peak pulse power dissipation of 1.5 kW. This surface mount device is housed in a compact DO-214 package featuring 2 pins for direct PCB mounting.

The diode configuration is single-element bi-directional, designed to clamp and absorb voltage spikes effectively, protecting sensitive electronics in industrial, automotive, and electronic system applications.

The device operates reliably across a temperature range from -55°C to 150°C and features a minimum breakdown voltage of 15.6 V with a maximum reverse stand-off voltage of 14 V. Its low leakage current of 5μA minimizes power loss during normal operation.

Its fast response time and excellent clamping capability with a clamping voltage of 23.2 V and peak pulse current of 64.7 A ensure efficient suppression of transient voltage surges commonly experienced in power management and semiconductor circuits. The component meets FBI standards and is certified with UL Certificate #E258596 and UL94V-0 flammability classification.

Typical applications include protection in electronics components, semiconductor devices, power management circuits, and electronic control systems. Designed for bi-directional transient voltage suppression. Surface mount DO-214 package with 2 pins.

1.5 kW peak pulse power dissipation for robust surge protection. Operating temperature from -55°C to 150°C suitable for harsh environments. Low leakage current of 5μA improves device efficiency. Fast response time and excellent clamping performance.

Compact physical footprint: 7.15 mm length, 6.25 mm width, 2.75 mm height. UL certified with flammability rating.

Choose Taiwan Semiconductor SMCJ14CA TVS diodes for reliable transient voltage protection in electronic and industrial applications. Explore more semiconductor components and TVS Diodes on EnvMart for your power management needs.
