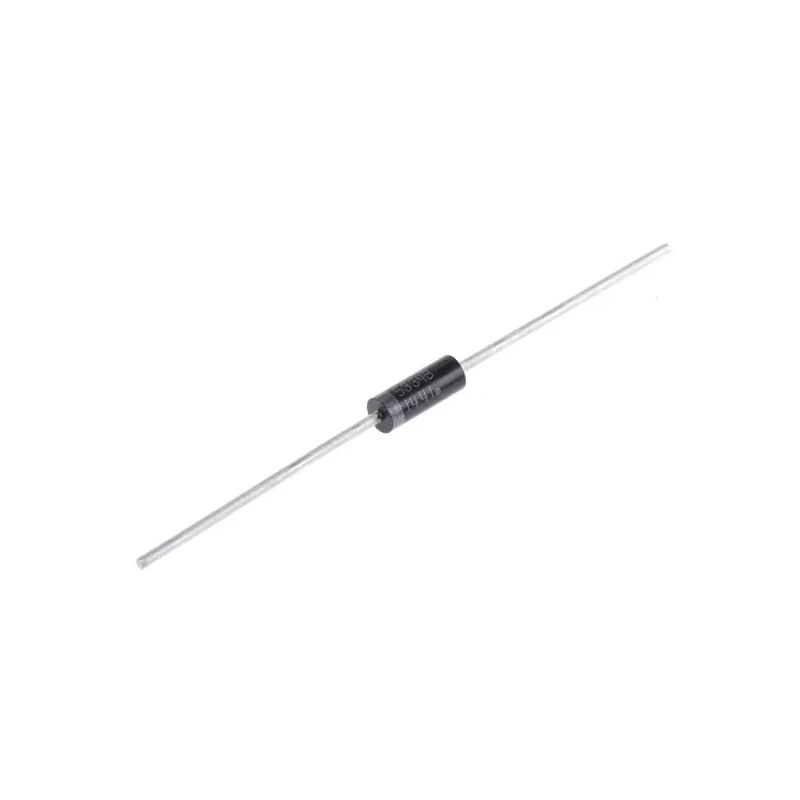

onsemi 3.6 V 5 W Zener Diode, Single, Through Hole 2-Pin DO-15 1N5334BRLG

Free Delivery in India | Lowest Global Shipping Charges

onsemi 3.6 V 5 W Zener Diode, Single, Through Hole 2-Pin DO-15 1N5334BRLG

Name: onsemi 3.6 V 5 W Zener Diode, Single, Through Hole 2-Pin DO-15 1N5334BRLG
Brand: onsemi
SKU: 373128
Price: 0.24 USD
Availability: InStock



Category Zener Diodes Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	3.68mm
Length	8.89mm
Model	1N5334BRLG
Mount Type	Through Hole
Series	1N53
Maximum Operating Temperature	200°C
Package Type	DO-15
Minimum Operating Temperature	-65°C
Pin Count	2
Number of Elements per Chip	1
Maximum Power Dissipation Pd	5W
Diode Configuration	Single
Test Current It	350mA
Maximum Reverse Leakage Current	150μA
Nominal Zener Voltage Vz	3.6V
Zener Type	Voltage Regulator
Maximum Zener Impedance	500Ω

Key Features

This Zener diode features a nominal Zener voltage of 3.6 volts with a 5% tolerance.
It has a maximum power dissipation of 5 watts.
Axial-leaded, through-hole DO-15 package with 2 pins allows easy mounting.
The maximum reverse leakage current is limited to 150 microamperes.
Operating temperature ranges from -65°C up to 200°C.
The diode has a test current of 350 milliamperes and maximum Zener impedance of 500 ohms.
Corrosion resistant exterior and readily solderable leads.

Product Description

onsemi 1N5334BRLG is a single-element 3.6 V Zener Diode designed for precise voltage regulation in industrial and electronic applications. It is encapsulated in a robust through-hole DO-15 package, featuring a molded thermosetting plastic construction that is void-free and corrosion resistant, making it suitable for harsh environments.

The diode offers a nominal Zener voltage of 3.6 volts with a tolerance of ±5%, supporting a maximum power dissipation of 5 watts. Its electrical characteristics include a test current of 350 mA and a maximum Zener impedance of 500 ohms, which provide stable and reliable voltage regulation behavior.

Engineered for through-hole mounting with 2 pins, the axial-leaded diode facilitates easy installation on printed circuit boards. It maintains operation across a wide temperature spectrum from -65°C to 200°C, ensuring durability in diverse industrial applications. The maximum reverse leakage current remains low at 150 microamperes to reduce energy loss.

This voltage regulator diode is part of onsemi's 1N53 series, known for silicon-oxide passivated junctions that enhance performance. The diode's external surfaces are corrosion resistant and its leads are readily solderable, promoting long service life and high reliability.

This Zener diode features a nominal Zener voltage of 3.6 volts with a 5% tolerance. It has a maximum power dissipation of 5 watts. Axial-leaded, through-hole DO-15 package with 2 pins allows easy mounting. The maximum reverse leakage current is limited to 150 microamperes.

Operating temperature ranges from -65°C up to 200°C. The diode has a test current of 350 milliamperes and maximum Zener impedance of 500 ohms. Corrosion resistant exterior and readily solderable leads.

Typical applications include industrial voltage regulation and electronic circuit protection. This Zener diode series offers reliable performance in semiconductor discrete components for electrical engineering sectors including manufacturing, automotive (non-automotive certified), and HVAC controls.

EnvMart presents the onsemi 1N5334BRLG as a durable and precise voltage regulator Zener diode suited for diverse electronic and industrial needs.
