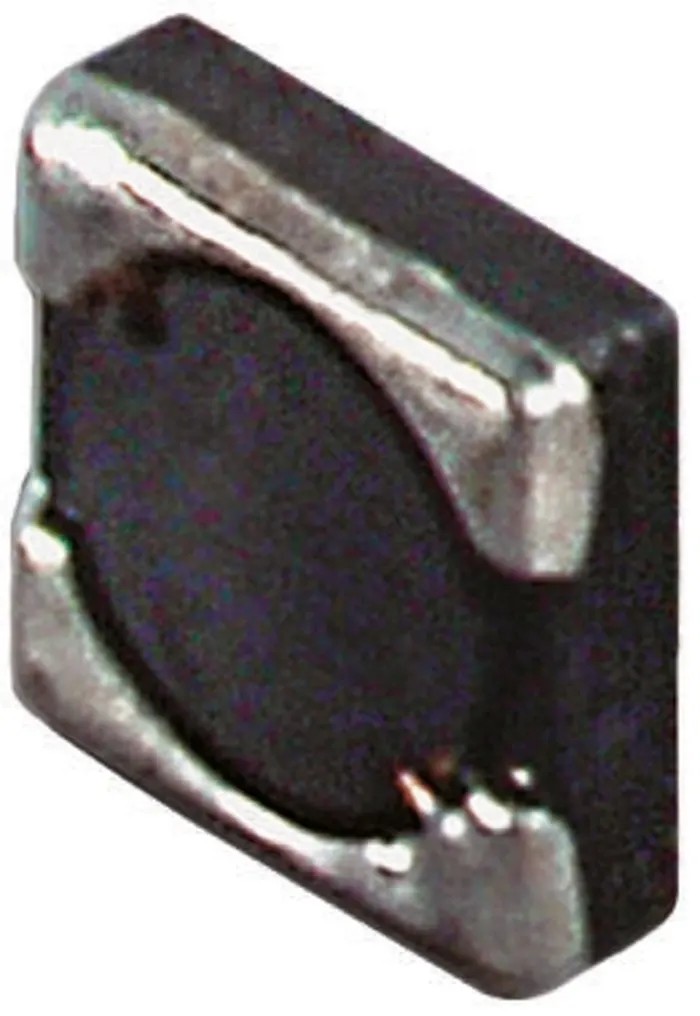

Wurth Elektronik WE-TPC 4828 Shielded Wirewound Surface Mount Inductor with Ferrite Core 1 mH ±30% 140 mA 744043102
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Operating Temperature | - 40 to +125°C |
| Height | 4.8mm |
| Length | 4.8mm |
| Depth | 2.8mm |
| Packaging | Tape & Reel |
| Series | WE-TPC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 1mH |
| Package/Case | 4828 |
| Maximum DC Current | 140mA |
| Maximum DC Resistance | 7Ω |
| Inductance Tolerance | ±30 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 2.3MHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
| Standards/ApprovalsREACH, IEC 60286-3 | 2013, IEC 61249-2-21, IPC/JEDEC J-STD-020E, JEDEC JS709B, RoHS |
Key Features
- This inductor features a ferrite core for efficient magnetic performance.
- It is magnetically shielded to minimize electromagnetic interference.
- The package case size is 4828 with a compact length and height of 4.8 mm each and a depth of 2.8 mm.
- Designed to withstand operating temperatures from -40°C to 125°C.
- The device complies with automotive standard AEC-Q200 and international standards such as REACH and RoHS.
- The maximum DC resistance is 7 ohms with a tolerance of ±30% on inductance.
- Packaging is supplied on tape & reel suitable for automated assembly.
- The inductor supports a maximum self-resonant frequency of 2.3 MHz.
Product Description
Wurth Elektronik 744043102 WE-TPC Series 4828 Shielded Wirewound Surface Mount Inductor offers a high current capability with a 1 mH inductance at ±30% tolerance.
Constructed with a ferrite core and magnetically shielded, this wirewound surface mount inductor effectively reduces magnetic leakage, ensuring reliable performance in sensitive electronics.
Its compact 4.8 mm x 4.8 mm x 2.8 mm package allows for space-saving design in portable power applications such as PDAs, digital cameras, PCMCIA cards, and embedded PC systems.
Capable of handling a maximum DC current of 140 mA and operating over a wide temperature range from -40°C to 125°C, this device is suitable for demanding environments including automotive electronics compliant with AEC-Q200 standards.
The low maximum DC resistance of 7 ohms and maximum self-resonant frequency of 2.3 MHz support efficient power conversion in DC/DC converters and telemetric applications. Supplied on tape and reel packaging, it facilitates automated mounting on printed circuit boards for manufacturing efficiency.
This inductor features a ferrite core for efficient magnetic performance. It is magnetically shielded to minimize electromagnetic interference. Complies with standards including REACH, IEC 60286-3:2013, IEC 61249-2-21, IPC/JEDEC J-STD-020E, JEDEC JS709B, and RoHS.
Compact package size 4828 with surface mount termination style. Maximum operating temperature of 125°C for robust performance. Maximum DC current rating of 140 mA for high current applications. Packaging: Tape & Reel for automated assembly processes.
Maximum self-resonant frequency reaching 2.3 MHz. Inductance tolerance ±30% ensures reliability in circuit design. This inductor is ideal for industrial, automotive, telecommunications, and consumer electronics where compact size and electromagnetic compatibility are critical.
Explore more Surface Mount Inductors and Wurth Elektronik products on EnvMart for your electronic component requirements.
