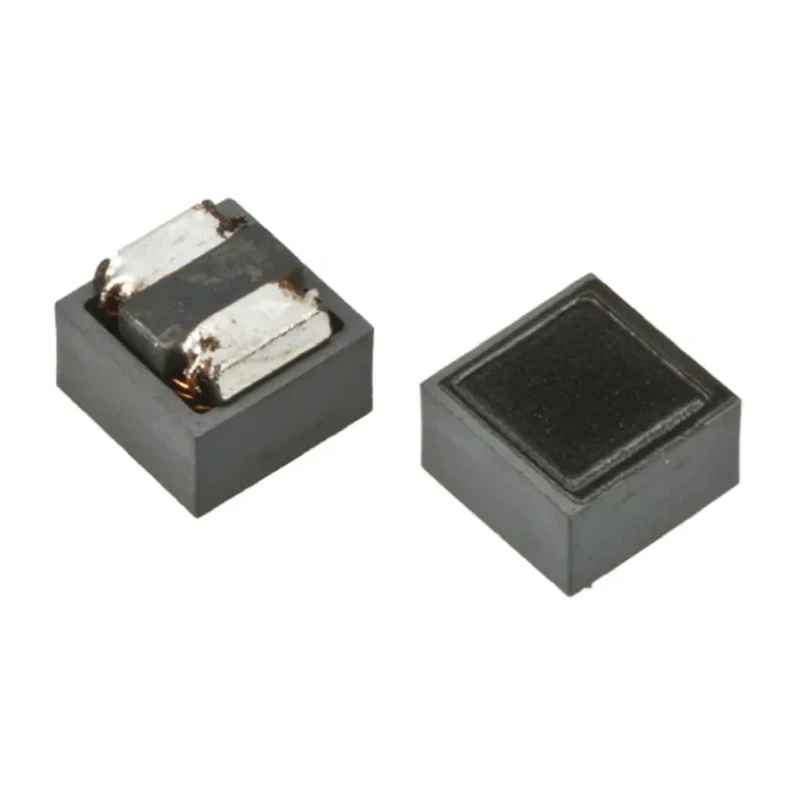

Murata 2225 Shielded Wirewound Surface Mount Inductor with Ferrite Core 270 nH ±20% 6A Idc LQH66SNR27M03L

Murata LQH66SNR27M03L is a 2225 shielded wirewound Surface Mount Inductor designed with a ferrite core, providing an inductance of 270 nH with ±20% tolerance. It supports a maximum DC current of 6 A and features a low maximum DC resistance of 7 milliohms. The compact dimensions of 6.3 mm length, 4.7 mm height, and 6.3 mm depth allow high-density mounting on PCBs, making it suitable for space-constrained electronics.

This wirewound inductor includes magnetic shielding, helping to minimize electromagnetic interference in sensitive circuits. It operates over a temperature range of -40°C to 80°C, providing reliable performance in various industrial and commercial applications, including DC-DC converters, power supply circuits, and other electronic systems requiring stable inductance.

With a maximum self-resonant frequency of 300 MHz, LQH66SNR27M03L can effectively handle high-frequency signals, making it useful in RF and power electronics. The surface mount termination style facilitates automated PCB assembly processes and improves production efficiency.

The inductor complies with RoHS standards, ensuring it meets environmental safety regulations. Manufactured in Japan, this component reflects Murata's commitment to quality and reliability.

The inductor features a compact 2225 package size suitable for high-density mounting. Provides a maximum DC resistance of 7 milliohms ensuring low power loss. Operating temperature range from -40°C to 80°C ensuring reliability.

Constructed with wirewound design and ferrite core for magnetic shielding. Supports high-frequency operation up to 300 MHz self-resonant frequency. Surface mount termination style for easy PCB installation. RoHS compliant for environmental safety.

Manufactured in Japan adhering to quality standards.

This inductor is ideal for use in industrial, electronic manufacturing, telecommunications, automotive electronics, power supplies, and HVAC control systems where efficient current handling and magnetic shielding are essential. For additional Murata electronic components, browse the Electronics & Electricals categories on EnvMart.
