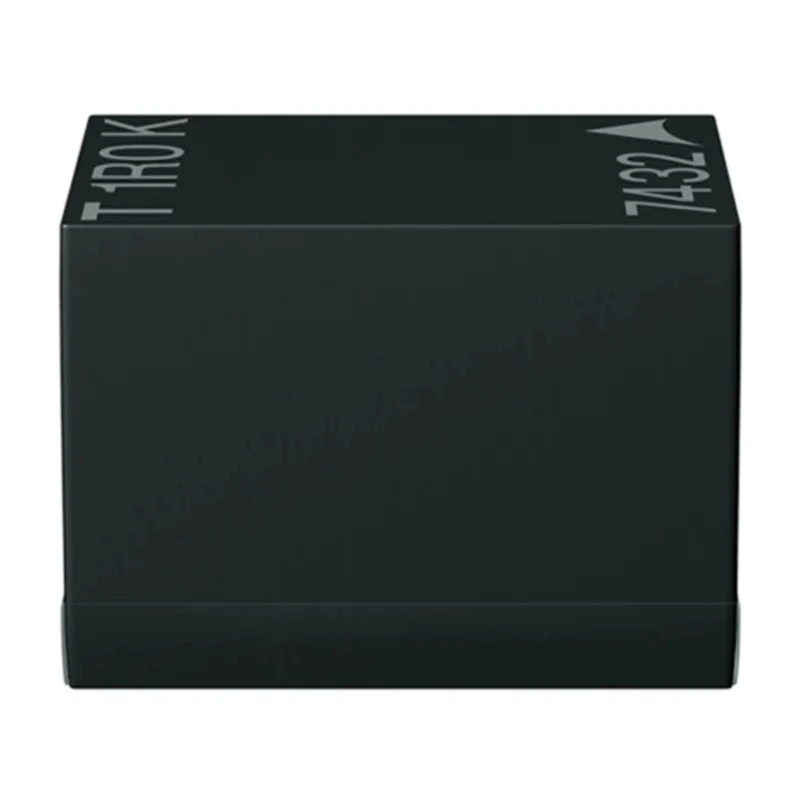

TDK SIMID 1812 Shielded Wirewound Surface Mount Inductor 22 μH ±10% 450 mA Idc Q:10 B82432T1223K000

TDK B82432T1223K000 is a shielded wirewound surface mount inductor in a compact 1812 package, designed with a ferrite core to provide 22 μH inductance and a maximum DC current rating of 450 mA. This inductor features a ±10% tolerance on its inductance values and a maximum DC resistance of 700 mΩ, ensuring efficient performance in demanding electronic circuits. Its solder termination style facilitates easy PCB mounting using surface mount technology.

The component operates reliably over a wide temperature range from -55°C minimum to 150°C maximum, making it suitable for automotive and industrial applications. It complies with the RoHS directive and meets the rigorous AEC-Q200 automotive standard, assuring quality and safety.

With a maximum self-resonant frequency of 15 MHz and a minimum quality factor of 10, this inductor supports filtering, coupling, decoupling, and DC/DC conversion functions in telecommunications, automotive electronics, and industrial electronic systems. The wirewound and molded construction enhances mechanical strength and electromagnetic compatibility.

The device comes packaged in tape and reel format, optimized for automated placement in high-volume manufacturing environments. Its 2-pin count and shielding provide electromagnetic interference (EMI) suppression, improving circuit reliability.

Manufactured in Hungary, this TDK SIMID series inductor offers robust performance for demanding surface mount applications requiring high current handling and precision inductance in a small footprint.

Compact 1812 package size with a length of 4.5mm, height and depth of 3.2mm each. Ferrite core wirewound inductor design with shielding for EMI reduction. Inductance of 22 μH ±10% tolerance for stable frequency response.

Maximum DC current of 450 mA suitable for moderate power circuits. Operating temperature range from -55°C to +150°C for automotive and industrial use. Solder termination style suited for automated PCB assembly. Conforms to RoHS and AEC-Q200 automotive standards.

Tape and reel packaging facilitates high efficiency in manufacturing. High self-resonant frequency of 15 MHz and quality factor of 10 for signal integrity. Explore TDK Surface Mount Inductors on EnvMart for reliable components in electronics manufacturing and design.
