Wurth Elektronik WE-TPC 4818 Shielded Wirewound Surface Mount Inductor 2.7μH ±30% 2.03A DC Current 7440420027

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik WE-TPC 4818 Shielded Wirewound Surface Mount Inductor 2.7μH ±30% 2.03A DC Current 7440420027

Name: Wurth Elektronik WE-TPC 4818 Shielded Wirewound Surface Mount Inductor 2.7μH ±30% 2.03A DC Current 7440420027
Brand: Wurth Elektronik
SKU: 373110
Price: 1.07 USD
Availability: InStock



Category Surface Mount Inductor Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Brand	Wurth Elektronik
Operating Temperature	- 40 to +125°C
Height	4.8mm
Length	4.8mm
Depth	1.8mm
Packaging	Tape & Reel
Series	WE-TPC
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Core Material	Ferrite
Inductance	2.7μH
Package/Case	4818
Maximum DC Current	2.03A
Maximum DC Resistance	60mΩ
Inductance Tolerance	±30 %
Termination Style	Surface Mount
Maximum Self Resonant Frequency	90MHz
Inductor Construction	Wirewound
Automotive Standard	AEC-Q200
JEDEC JS709B, IPC/JEDEC J-STD-020E, IEC 61249-2-21, IEC 60286-3	2013, RoHS, REACH

Key Features

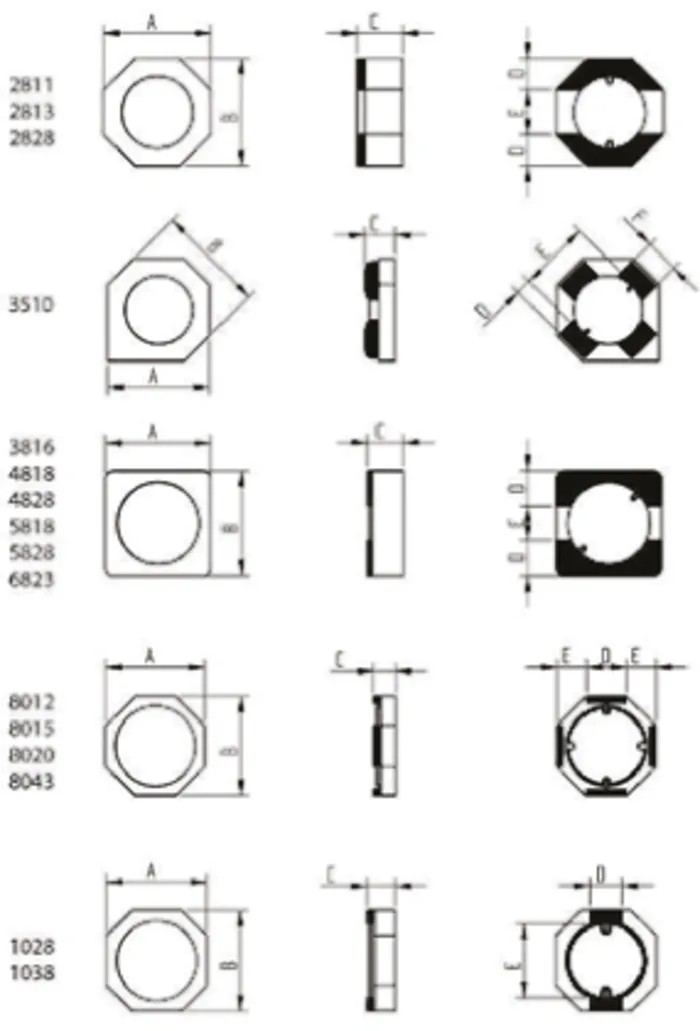

This inductor features a 4818 package size with a 4.8mm length and height, and 1.8mm depth.
It uses a ferrite core and wirewound construction for efficient magnetic shielding and low leakage.
Designed to operate reliably between -40°C and 125°C, compliant with automotive AEC-Q200 standards.
Packaging is tape and reel, suitable for surface mount technology assembly.
Maximum DC resistance is 60 milliohms ensuring low power loss.
Suitable for use in power management circuits such as DC/DC converters and portable electronics.
Complies with JEDEC JS709B, IPC/JEDEC J-STD-020E, RoHS, and REACH regulations.
Magnetically shielded to reduce electromagnetic interference in compact applications.

Product Description

Wurth Elektronik 7440420027 WE-TPC series shielded wirewound surface mount inductors provide a nominal inductance of 2.7μH with a tolerance of ±30%, designed for high current capability up to 2.03A DC. These inductors incorporate a ferrite core with wirewound construction to deliver efficient magnetic shielding and reduced leakage fields.

The compact 4818 package measures 4.8mm in length and height, with a depth of 1.8mm, optimized for surface mount applications requiring low profile components. Operating temperature ranges from -40°C to 125°C, meeting rigorous automotive AEC-Q200 standards for reliability.

Equipped with a maximum DC resistance of 60 milliohms, the inductor supports efficient power management with minimal energy loss. It is packed on tape and reel for automated PCB assembly processes.

Common uses include portable power applications such as PDAs, digital cameras, PCMCIA cards, mobile data gathering, and embedded PCs. They are ideal for DC/DC converters and other power supply circuits where space and efficiency are critical.

2.7μH inductance with ±30% tolerance. Maximum DC current of 2.03 amperes. Compact 4818 surface mount package (4.8mm x 4.8mm x 1.8mm). Ferrite core and wirewound construction for magnetic shielding. Operating temperature range -40°C to 125°C.

Compliance with JEDEC, IPC, RoHS, and REACH standards. Packaging: Tape and reel suitable for SMT. Low maximum DC resistance of 60 milliohms.

These components are engineered for demanding industrial, automotive, and commercial electronic products requiring robust power inductors. Wurth Elektronik's reputation assures quality and performance in a shielded wirewound inductor suitable for high-current surface mount applications.
