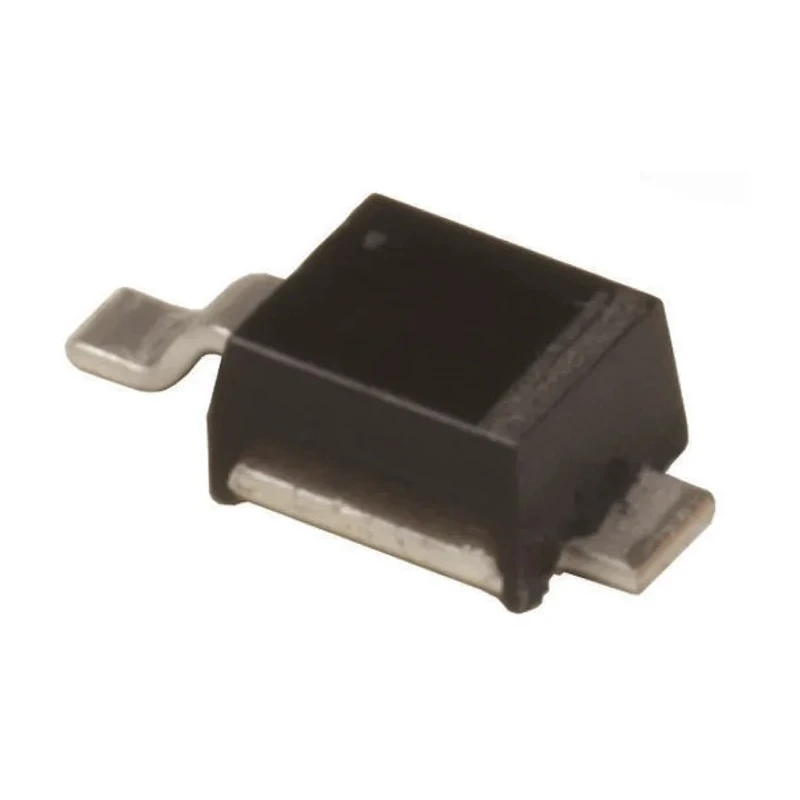

onsemi 20 V 1 A Surface Mount Schottky Diode 2-Pin POWERMITE MBRM120ET1G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1.15mm |
| Length | 2.05mm |
| Model | MBRM120ET1G |
| Width | 2.18mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | POWERMITE |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 20V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1.6mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 540mV |
Key Features
- Compact 2-pin POWERMITE package designed for surface mounting.
- Maximum continuous forward current of 1 ampere to handle typical circuit loads.
- Peak reverse repetitive voltage rated at 20 volts ensuring reliable blocking performance.
- Low forward voltage drop of 540 millivolts reduces power loss and improves efficiency.
- Operation over a wide temperature range from -65°C to 150°C for robust performance.
- Automotive qualified to AEC-Q101 standard ensuring high reliability in automotive environments.
- Epoxy moulded lightweight package weighing approximately 11.7 mg enhances compact design.
- Peak non-repetitive forward surge current up to 50 amperes for transient protection.
Product Description
onsemi MBRM120ET1G is a surface mount Schottky barrier diode designed to deliver optimized forward voltage drop and reverse current exchange for efficient rectification at low voltages.
This 2-pin POWERMITE packaged diode supports a maximum continuous forward current of 1 ampere and peak repetitive reverse voltage of 20 volts. Its forward voltage drop of only 540 mV helps minimize conduction losses in power supply and signal conditioning circuits.
Engineered for robust performance, it operates reliably over a temperature range of -65°C to 150°C and meets stringent AEC-Q101 automotive qualification standards, making it suitable for demanding automotive and industrial applications.
The epoxy moulded, lightweight package with compact dimensions (1.15 mm height, 2.05 mm length, 2.18 mm width) enables high-density PCB designs, essential in space-constrained environments.
Typical applications include low-voltage high-frequency rectification, freewheeling diode functions, polarity protection, and use in power and signal circuits where size and weight are critical factors.
Compact 2-pin surface mount POWERMITE package ensures easy automated assembly. Low forward voltage drop reduces energy waste and thermal dissipation. High surge current capability provides transient robustness. Wide operating temperature range supports harsh industrial environments.
Automotive standard AEC-Q101 rating ensures reliability in vehicle electronics. Epoxy moulded case protects internal die from mechanical and environmental damage. Lightweight package suitable for portable and embedded electronics.
This diode is ideal for applications in industrial, automotive, telecommunications, and consumer electronics sectors requiring compact, efficient power rectification solutions. Explore more semiconductor components and Schottky Diodes in EnvMart's extensive catalog to find complementary products for your design or manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the MBRM120ET1G is 1 ampere, suitable for typical circuit loads.
This model has a peak reverse repetitive voltage rating of 20 volts, ensuring reliable blocking performance in circuits.
The forward voltage drop is 540 millivolts, which helps to minimize conduction losses in power supply and signal conditioning circuits.
It operates over a wide temperature range from -65°C to 150°C, making it suitable for harsh environments.
The dimensions of the POWERMITE package are 1.15 mm in height, 2.05 mm in length, and 2.18 mm in width.
This diode is qualified to the AEC-Q101 standard, ensuring high reliability in automotive applications.
The peak non-repetitive forward surge current is rated at 50 amperes, providing transient protection.
This model supports surface mounting, which facilitates easy automated assembly.
The peak reverse current is 1.6 milliamperes, which is a measure of the reverse leakage current.
It is suitable for low-voltage high-frequency rectification, freewheeling diode functions, and polarity protection in power and signal circuits.
The epoxy moulded package weighs approximately 11.7 mg, enhancing the compact design.
The low forward voltage drop reduces power loss and improves efficiency in power supply and signal conditioning circuits.
