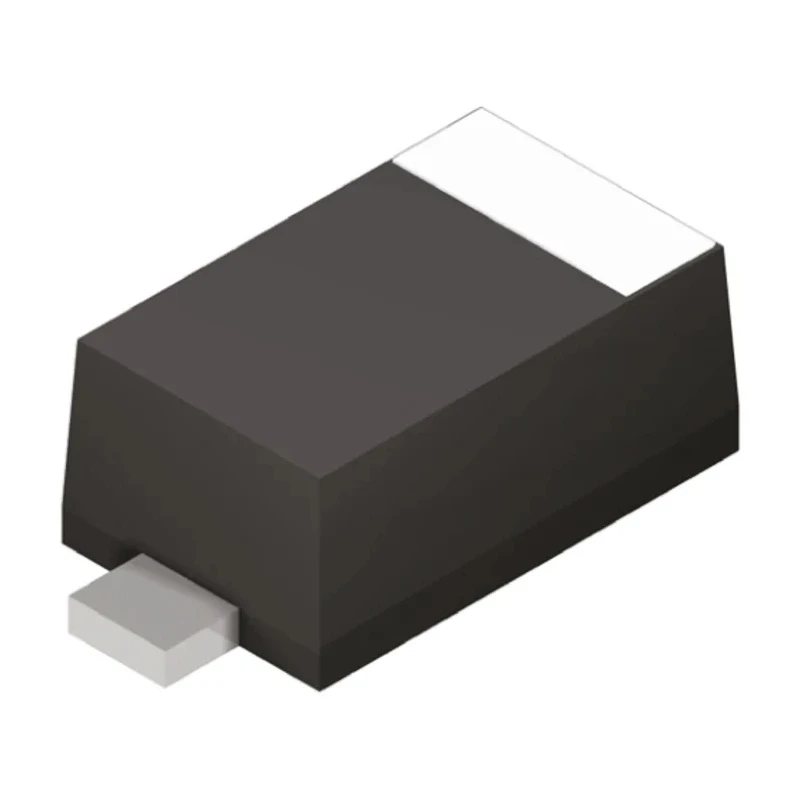

onsemi 20 V 1 A Schottky Diode 2-Pin SOD-123FL MBR120LSFT1G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 0.88mm |
| Length | 2.9mm |
| Model | MBR120LSFT1G |
| Width | 1.8mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 125°C |
| Package Type | SOD-123FL |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 20V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 18mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 670mV |
| onsemi 60V 2A, Schottky Diode, 2-Pin SOD-123FL NRVTS260ESFGBrand | onsemi |
Key Features
- The surface mount package type is SOD-123FL, suitable for automated PCB assembly.
- Maximum continuous forward current is rated at 1 ampere for stable operation.
- Peak reverse repetitive voltage is 20 volts, ensuring robust voltage handling.
- Maximum forward voltage drop is 670 millivolts, enhancing efficiency.
- The diode offers a wide operating temperature range from -55°C to 125°C.
- It supports peak non-repetitive forward surge current up to 50 amperes.
- Package dimensions are compact with a length of 2.9 mm, width of 1.8 mm, and height of 0.88 mm.
- Compliance to automotive standard AEC-Q101 makes it suitable for automotive applications.
Product Description
onsemi MBR120LSFT1G is a Schottky Barrier Diode designed for low voltage, high-frequency rectification applications, packaged in a 2-pin SOD-123FL surface mount case. It supports a maximum continuous forward current of 1 A and a peak reverse voltage of 20 V, making it ideal for efficient power conversion and polarity protection in compact electronic devices.
This diode employs the Schottky barrier principle using a barrier metal to optimize the balance between forward voltage drop and reverse current leakage, providing enhanced efficiency and low heat dissipation.
The device offers a wide operating temperature range of -55°C to 125°C, ensuring reliable performance in automotive, industrial, and consumer electronics applications. Its peak non-repetitive surge current capability of 50 A adds robustness for transient conditions.
Compact package dimensions (2.9 mm length, 1.8 mm width, 0.88 mm height) and a lightweight epoxy moulded case (approximately 11.7 mg) allow for space-saving, automated assembly on printed circuit boards.
Compliant with the AEC-Q101 automotive standard, this diode is suitable for demanding automotive and industrial environments requiring high reliability and long-term stability. The SOD-123FL package type enables effective automated mounting and soldering processes.
Its low forward voltage drop of 670 mV reduces power loss and improves energy efficiency. The diode's robust surge current rating ensures durability under power spikes. It is Pb-free, contributing to environmentally friendly manufacturing processes.
Applications include power supplies, voltage clamping, freewheeling diodes, and polarity protection in automotive and industrial devices. Explore the onsemi brand for trusted semiconductor components suitable for various electronic and industrial applications, available at EnvMart.
Explore more products in our Schottky Diode category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is rated at 1 ampere, allowing for stable operation in various applications.
This diode supports a peak reverse repetitive voltage of 20 volts, ensuring robust voltage handling in electronic circuits.
The package dimensions are compact, measuring 2.9 mm in length, 1.8 mm in width, and 0.88 mm in height.
It operates within a wide temperature range from -55°C to 125°C, making it suitable for various environments.
The maximum forward voltage drop is 670 millivolts, which enhances efficiency in power applications.
This model can handle a peak non-repetitive forward surge current of up to 50 amperes, providing robustness for transient conditions.
Yes, it complies with the AEC-Q101 automotive standard, making it suitable for automotive applications requiring high reliability.
It uses a surface mount type, specifically designed for automated PCB assembly.
The peak reverse current for this diode is specified at 18 milliamperes.
It is suitable for applications including power supplies, voltage clamping, freewheeling diodes, and polarity protection.
The diode has a lightweight epoxy moulded case, approximately weighing 11.7 mg, which aids in space-saving designs.
This model features a single diode configuration, typical for Schottky diodes used in various electronic applications.
