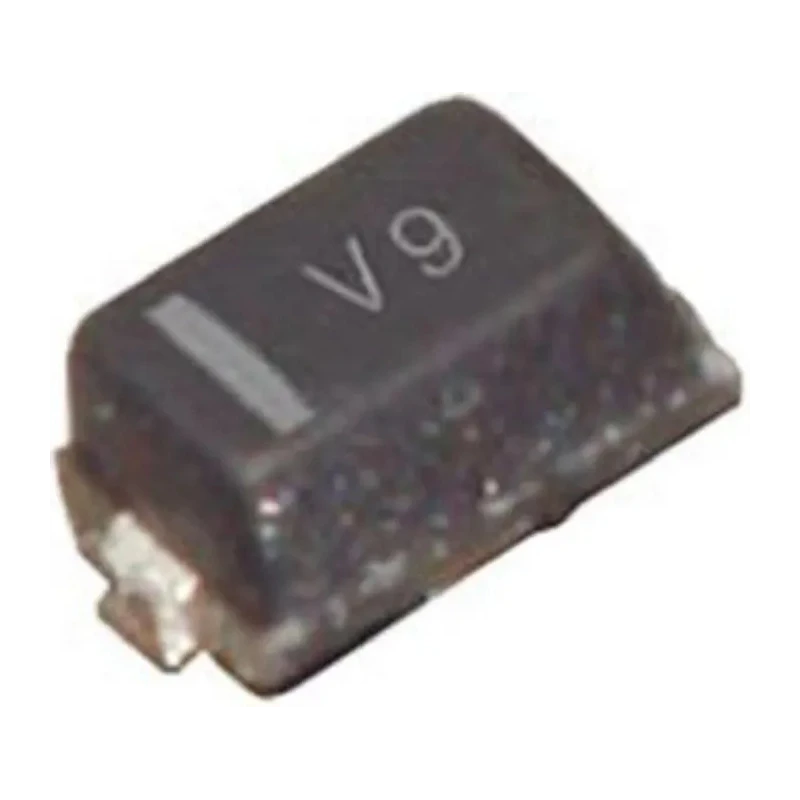

onsemi Schottky Diode 30 V 100 mA Surface Mount 2-Pin SOD-923 NSR0130P2T5G

onsemi NSR0130P2T5G Schottky Diode is a high-performance surface mount component designed for low voltage, high frequency applications requiring fast switching and low forward voltage drop. The diode utilizes Schottky barrier principle with a barrier metal to deliver efficient forward voltage and reverse current trade-off.

This diode is housed in a compact SOD-923 package with dimensions of 0.85 mm length, 0.65 mm width, and 0.43 mm height, making it ideal for space-constrained industrial and commercial electronic assemblies. It weighs just 11.7 mg, facilitating ease of automated board assembly.

It can safely conduct a maximum continuous forward current of 100 mA and endure peak non-repetitive forward surge currents up to 1 A. The diode provides a peak reverse repetitive voltage rating of 30 V with low peak reverse current leakage of 3 μA.

Operating within a wide temperature range from -55°C to 125°C, this Schottky diode is suitable for power rectification, polarity protection, and freewheeling diode roles in automotive, industrial control systems, communication devices, and consumer electronics.

Uses robust Schottky barrier technology for efficient rectification. Compact surface mount design supports high-density PCB layouts. Low forward voltage drop reduces power losses. Epoxy moulded casing protects against mechanical and environmental stresses.

Wide operating temperature range ensures versatility across applications. Ideal for high-frequency switching in power conversion circuits. Facilitates automation with reel packaging for assembly lines.

This diode is part of onsemi's portfolio of Schottky diodes tailored for optimal performance in discrete semiconductor applications. Explore additional Schottky Diode options and related semiconductor components within the Electronics & Electricals category on EnvMart for your industrial or laboratory needs.
