| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 1mm |
| Length | 3mm |
| Model | BZX84B3V3-7-F |
| Mount Type | Surface |
| Series | BZX84B3V3 |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 350mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 5μA |
| Nominal Zener Voltage Vz | 3.3V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 95Ω |
| Typical Voltage Temperature Coefficient | -3.5mV/°C |
| Surface Mount case | SOT-23 |

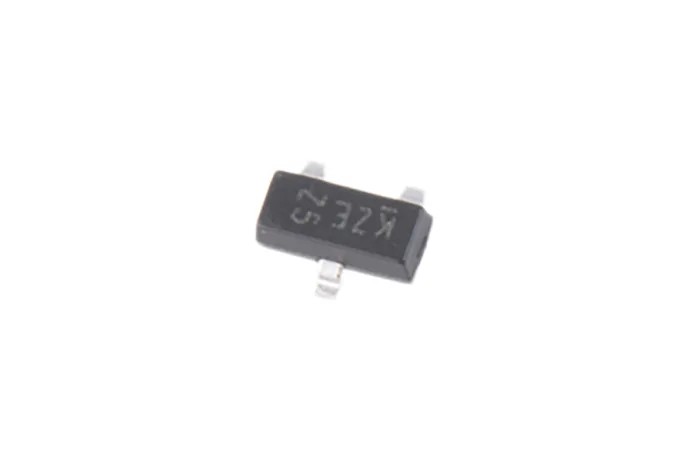

DiodesZetex BZX84B3V3-7-F is a precision Zener Diode designed for voltage regulation applications requiring a nominal voltage of 3.3 V. It supports a maximum power dissipation of 350 mW and comes in a compact 3-pin surface mount SOT-23 package, ideal for space-constrained electronic circuit boards. This diode is engineered for reliable operation in demanding industrial, automotive, and consumer electronic circuits.
Featuring a single diode configuration, it provides precise voltage regulation with a tolerance of ±2%, ensuring stable performance across temperature variations. The typical voltage temperature coefficient is -3.5 mV/°C, helping to maintain voltage stability under thermal changes.
Designed to operate within a wide temperature range of -65°C to 150°C and certified to AEC-Q101 automotive standards, the diode is suitable for automotive electronics and harsh environmental conditions. The maximum reverse leakage current is limited to 5 μA to reduce power loss and enhance efficiency.
The device has a test current rating of 5 mA and a maximum Zener impedance of 95 ohms, making it suitable for voltage regulator applications in power supplies, voltage reference circuits, and protection circuits.
Operates with a nominal Zener voltage of 3.3 V and 2% tolerance. Maximum power dissipation rating of 350 mW for stable energy handling. Compact SOT-23 package with 3 pins for surface mounting on PCBs. Wide operating temperature range suitable for automotive and industrial use.
Compliance with AEC-Q101 ensures quality and reliability in automotive electronics. Low maximum reverse leakage current to minimize losses. Voltage temperature coefficient of -3.5 mV/°C for thermal stability. Height of 1 mm and length of 3 mm for compact integration.
This Zener Diode is essential in industrial and automotive electronics for voltage regulation, overvoltage protection, and voltage reference circuits. It supports applications in power electronics, automotive control modules, and telecommunications equipment. Its compact form factor aids in miniaturization of electronic modules without compromising reliability.
