Wurth Elektronik WE-PD 1050 Shielded Wirewound Surface Mount Inductor 10 μH ±20% 4.3 A Idc 7447714100

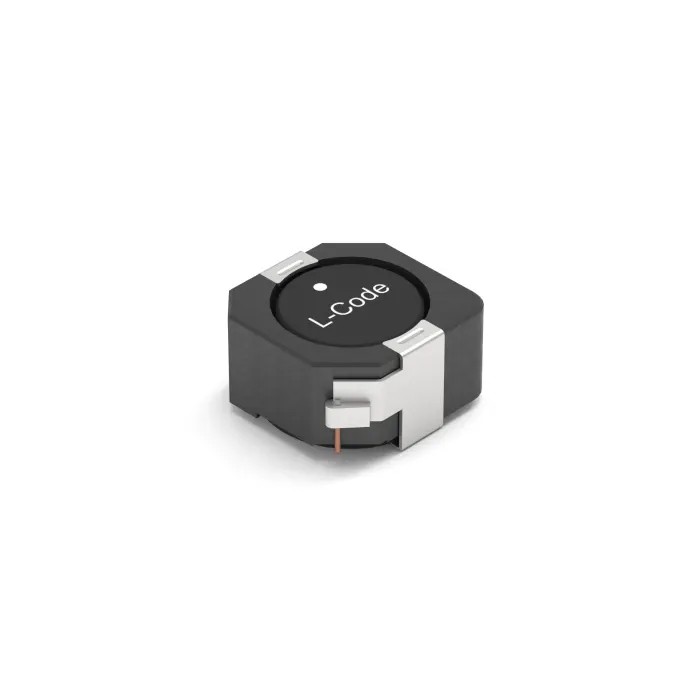

Wurth Elektronik 7447714100 WE-PD series shielded wirewound surface mount inductor is designed for high current and power applications, featuring a 10 μH inductance with ±20% tolerance. This 1050 package inductor measures 10 mm in length, 5 mm in height, and 10 mm in depth, with a magnetically shielded wirewound construction that reduces electromagnetic interference and leakage flux effectively.

The inductor supports a maximum DC current of 4.3 A, making it suitable for demanding switching regulators and integrated DC-DC converters. It operates reliably over a wide temperature range from -40°C to 125°C, making it applicable in automotive and industrial environments that adhere to AEC-Q200 automotive quality standards.

The device exhibits a maximum DC resistance of 27 mΩ ensuring low conduction losses and features a maximum self-resonant frequency of 20.5 MHz, which supports high-frequency power supply designs and high efficiency (>86%) switching regulators.

The surface mount termination style facilitates automated PCB assembly and reflow soldering processes. It is RoHS compliant, ensuring environmental safety and contemporary manufacturing standards.

Typical applications include switching regulators with low operating voltages, integrated DC-DC converters, high-efficiency switching regulators, and graphic cards requiring compact inductors with high storage capacity and current loading.

The plastic base variant construction also helps this inductor to withstand high vibration and shock environments, making it robust for automotive and industrial applications. Maximum DC current rating of 4.3 amperes ensures high current handling capacity.

Compact 1050 package with dimensions 10 mm length, 5 mm height, and 10 mm depth. Magnetically shielded wirewound construction reduces electromagnetic interference. Operating temperature from -40°C to 125°C supports automotive quality standards AEC-Q200.

Low maximum DC resistance reduces power dissipation. Maximum self-resonant frequency of 20.5 MHz supports high-frequency switching applications. RoHS compliant, suitable for environmentally conscious production. Surface mount termination style for automated PCB assembly.

Robust construction suitable for high vibration and shock environments. Explore more Surface Mount Inductors and power inductors in the Wurth Elektronik range at EnvMart.
