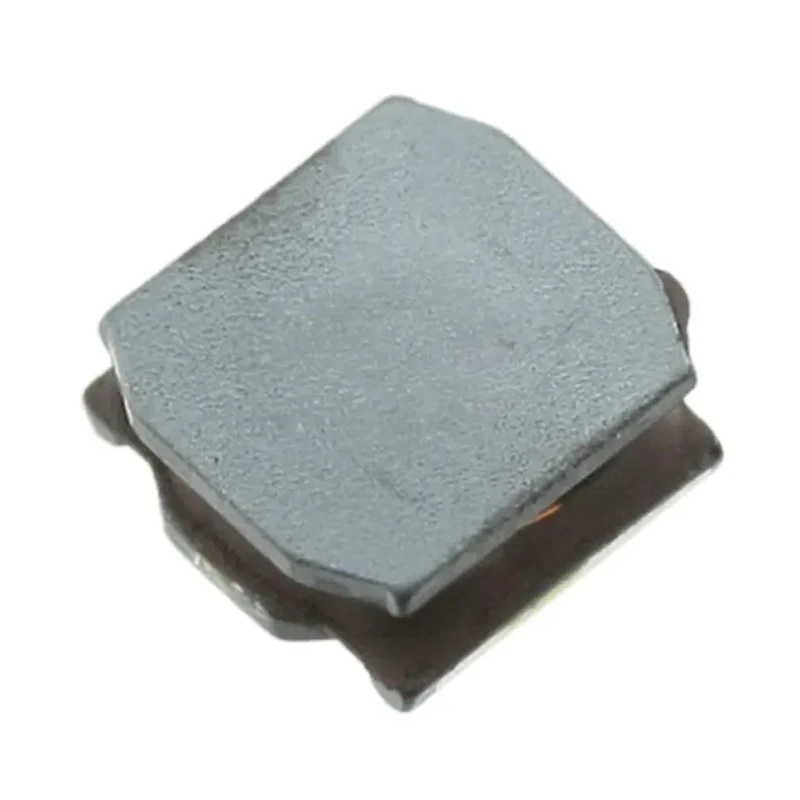

Murata 1515 Shielded Surface Mount Inductor with Ferrite Core 3.3μH ±20% 1 A Idc LQH44PN3R3MJ0L
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 1.1mm |
| Length | 4mm |
| Model | LQH44PN3R3MJ0L |
| Depth | 4mm |
| Packaging | Embossed Tape |
| Series | LQH |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 3.3μH |
| Standards/Approvals | RoHS |
| Package/Case | 1515 |
| Maximum DC Current | 1A |
| Pin Count | 2 |
| Maximum DC Resistance | 88mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 55MHz |
| Inductor Construction | Wirewound |
Key Features
- Compact 1515 package for space-saving PCB designs.
- Ferrite core providing magnetic shielding and stability.
- Inductance tolerance of ±20% for flexible circuit requirements.
- Wirewound construction with low DC resistance of 88mΩ.
- Operating temperature range from -40°C to 85°C for reliability.
- Maximum self-resonant frequency of 55MHz suitable for high-frequency circuits.
- Termination style designed for solder surface mounting.
- Compliant with RoHS standards ensuring environmental safety.
Product Description
Murata LQH44PN3R3MJ0L is a 1515 size shielded surface mount inductor featuring a ferrite core and wirewound construction. It offers an inductance value of 3.3μH with a tolerance of ±20%, suitable for a variety of DC power supply applications. This inductor supports a maximum DC current of 1 A and exhibits a low DC resistance of 88mΩ, ensuring efficient performance in compact electronic circuits.
The component is designed to operate reliably within a temperature range of -40°C to 85°C, making it appropriate for both industrial and commercial electronics. Its maximum self-resonant frequency is 55MHz, providing stable operation in high-frequency signal filtering and power management circuits. The solder termination style supports surface mounting technology on printed circuit boards.
Constructed with a ferrite core for effective electromagnetic shielding, this inductor also meets the Restriction of Hazardous Substances (RoHS) environmental standards. The embossed tape packaging facilitates automated assembly processes, enhancing manufacturing efficiency.
Common applications include use as inductors or chokes in DC power supply circuits within industrial electronics, telecommunications, and consumer devices. Its compact 1515 package size allows integration into space-constrained PCB layouts.
Compact 1515 package ensures minimal PCB footprint. Ferrite core provides magnetic shielding and stability. Wirewound construction reduces DC resistance and improves current handling. Wide operating temperature range supports diverse environmental conditions.
RoHS compliant for environmentally safe manufacturing and disposal. High self-resonant frequency suitable for high-frequency applications. Solder termination supports reliable surface mounting assembly. Manufactured in Japan, ensuring strict quality control.
Explore more Surface Mount Inductors and related electronic components on EnvMart for your industrial and commercial electronic design needs.
