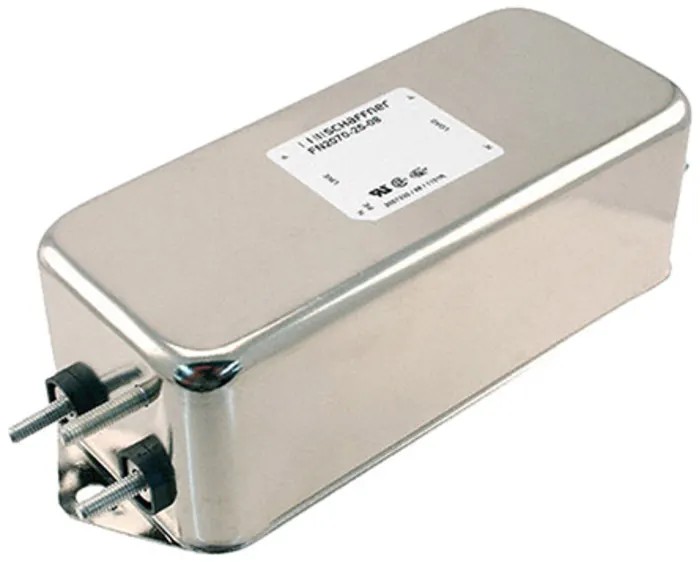

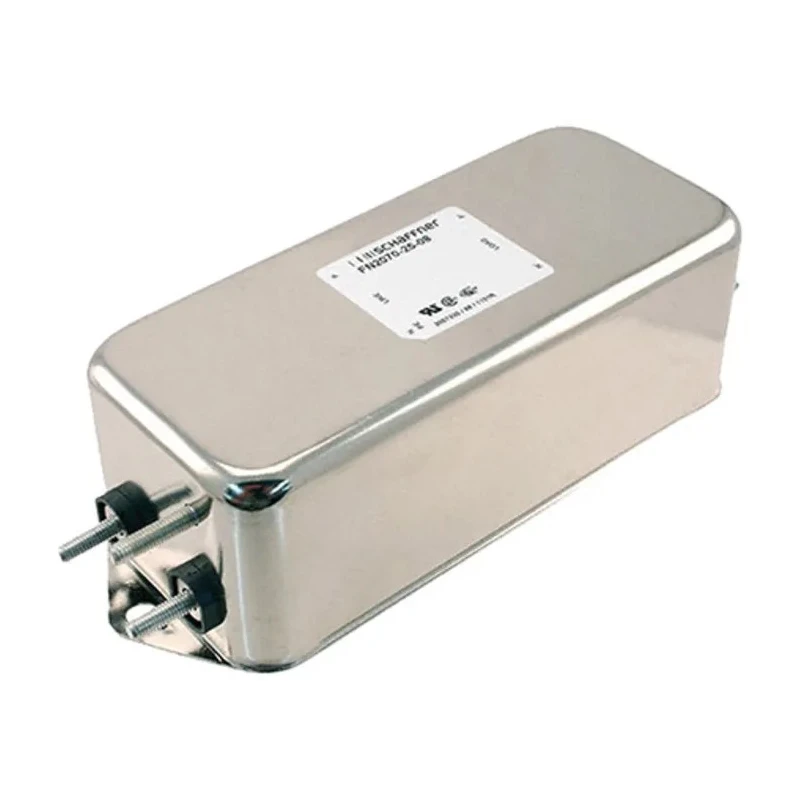

Schaffner Chassis Mount EMI Filter 25 A 250V AC/DC 400Hz 2-Stage Stud 1 Phase FN2070 25-08
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schaffner |
| Height | 57.5mm |
| Length | 156mm |
| Model | FN2070 |
| Depth | 45.4mm |
| Mount Type | Chassis Mount |
| Operating Frequency | 400Hz |
| Series | FN2070 |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 2 |
| Resistance | 220kΩ |
| Capacitance | 4.7nF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 25A |
| Number of Phases | 1 |
| Leakage Current | 734μA |
| Maximum Voltage | 250V ac/dc |
| Inductance | 2mH |
| Termination Style | Stud |
| Power Loss | 11.6W |
Key Features
- Designed as a two-stage filter providing excellent attenuation for both differential and common mode noise.
- Compact aluminium case ensures robust mechanical support and efficient heat dissipation.
- Easy chassis mount installation with 0.25 inch Faston stud terminals for quick connection.
- Wide operating temperature range from -25°C to 100°C suitable for industrial applications.
- Low leakage current of 734μA to maintain system efficiency and safety.
- Capacitance of 4.7nF and inductance of 2mH tailored for improved EMI filtering performance.
- Rated for power loss of 11.6W and resistance of 220kΩ ensuring durability and reliability.
- Ideal for electrical, industrial, manufacturing, medical equipment, and building automation systems.
Product Description
Schaffner FN2070 25-08 chassis mount EMI filter is engineered for effective electromagnetic interference suppression in diverse industrial, medical, manufacturing, and automation environments. This two-stage filter supports a maximum current of 25A and voltage up to 250V AC/DC. It operates efficiently at 400Hz, adapting well to applications requiring high-frequency noise attenuation.
The aluminum casing provides robust mechanical protection and excellent thermal management for reliable long-term operation. Its compact dimensions of 156mm length, 57.5mm height, and 45.4mm depth allow flexible installation into electronic assemblies.
Equipped with stud termination style and designed for chassis mounting, this model allows fast and secure connections via standard 0.25 inch Faston terminals. The filter's component values, including 4.7nF capacitance and 2mH inductance, optimize common and differential mode noise reduction.
The product functions effectively within a temperature range of -25°C to 100°C, serving a wide range of equipment such as electrical panels, industrial machinery, medical devices, and building automation controls. Its low leakage current of 734μA helps maintain operational safety and compliance.
Two-stage construction enhances EMI attenuation across multiple frequencies. Aluminium case ensures durability and improved thermal performance. Stud 1-phase mount type enables straightforward chassis installation. Rated for high current (25A) and voltage (250V AC/DC) applications.
Compact size with dimensions 156x45.4x57.5 mm for versatile usage. Low leakage current minimizes energy loss and interference risks. Power loss rated at 11.6W ensures operational efficiency. Supports various industrial and electronic equipment requiring EMI suppression.
This EMI filter is especially suitable for applications demanding reliable noise filtering in electrical and electronic devices, machinery, medical equipment, and building automation systems. Schaffner’s FN2070 series demonstrates a commitment to performance and robustness in EMI filtering solutions.
Discover more products in the EMI Filters category to complement your electronic components and improve system reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 25A.
It is rated for a maximum voltage of 250V AC/DC.
This EMI filter operates efficiently at 400Hz.
The dimensions are 156mm in length, 57.5mm in height, and 45.4mm in depth.
It features a chassis mount type for easy installation.
The leakage current is rated at 734μA.
It has a capacitance of 4.7nF.
The inductance is rated at 2mH.
It is rated for a power loss of 11.6W.
It operates within a temperature range of -25°C to 100°C.
This model has a two-stage design for enhanced EMI attenuation.
It is suitable for electrical, industrial, manufacturing, medical equipment, and building automation systems.
