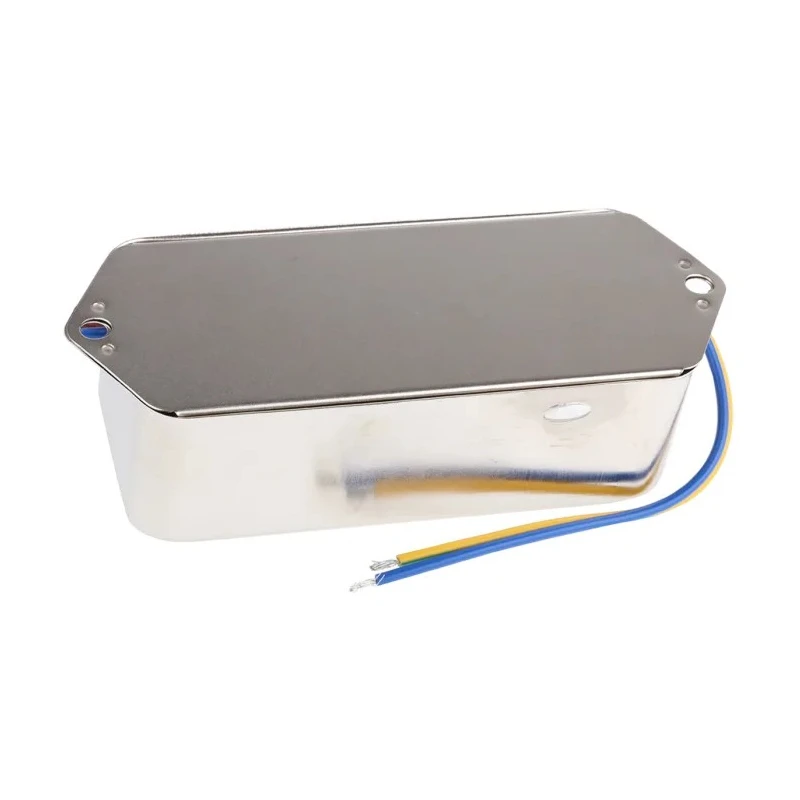

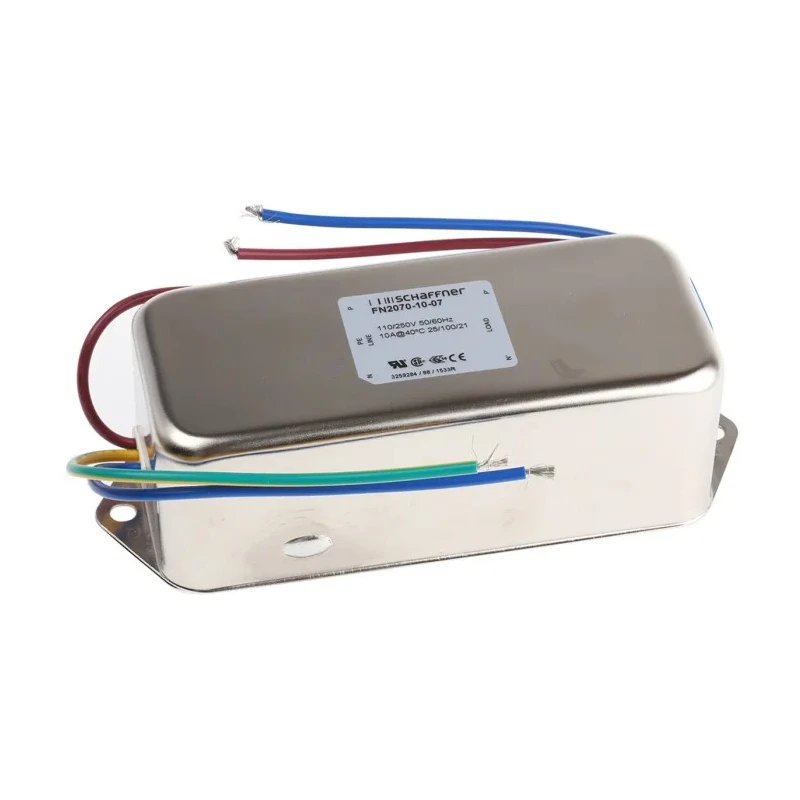

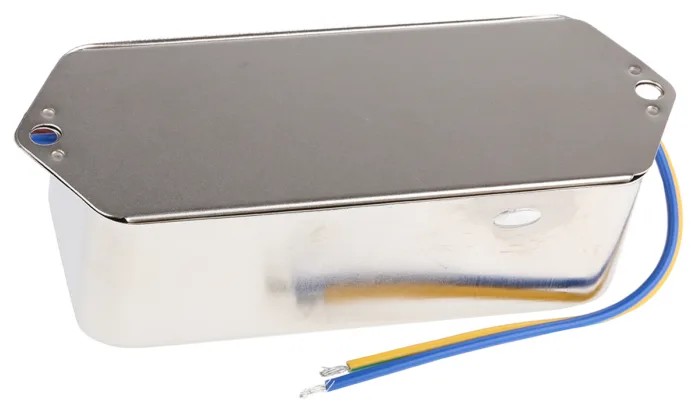

Schaffner Chassis Mount EMI Filter 10 A 250V ac/dc 400Hz Wire 1 Phase FN2070

Schaffner FN2070 chassis mount EMI filter, model FN2070, rated for a maximum current of 10 A and a maximum voltage of 250V ac/dc at 400Hz, is designed for one-phase applications requiring electromagnetic interference suppression. It features a sturdy two-stage filter housed in an aluminium case for chassis mounting with wire termination style for secure connectivity.

This filter utilizes high-quality choke components with elevated saturation resistance and excellent thermal behavior, providing a high level of conducted attenuation performance to effectively reduce both differential and common mode noise. The capacitive and inductive components, with capacitance at 4.7nF and inductance at 4.5mH respectively, are optimized for high-frequency noise filtering.

Operating temperature ranges from -25°C to 100°C, making it suitable for demanding industrial environments. The compact dimensions (156mm length x 57.5mm height x 45.4mm depth) allow easy integration into electrical and electronic equipment, machinery, medical devices, building automation systems, and other noisy industrial applications.

Leakage current is low at 734μA, ensuring minimal power loss, which is approximately 9.1W. The filter is connected through 0.25 inch Faston terminals that facilitate quick and reliable wiring. The resistance of the filter is 220kΩ, enhancing its electrical characteristics.

Schaffner FN2070 filters meet rigorous performance needs but are not accompanied by specific safety certifications in this model. Optional safety (A type) and medical (B type) versions are available for specialized requirements.

This two-stage EMI filter improves attenuation of electromagnetic noise for sensitive electrical components. Robust aluminium chassis mount designed for industrial and medical equipment use. Wide operating temperature range from -25°C to 100°C ensures reliability in diverse conditions.

Compact size with precise dimensions for straightforward installation. Low leakage current and controlled power loss promote energy efficiency. Quick connection through standardized Faston terminals reduces installation time.

Suitable for applications in manufacturing, industrial control, building automation, and medical fields. Optimized component values for enhanced high-frequency noise suppression. Two-phase design targeting both differential and common mode noise for improved electromagnetic compatibility.

Effective for use in a variety of electrical and electronic equipment requiring EMI filtering. EnvMart offers a comprehensive range of Schaffner EMI Filters to meet industrial and commercial electromagnetic compatibility needs.
