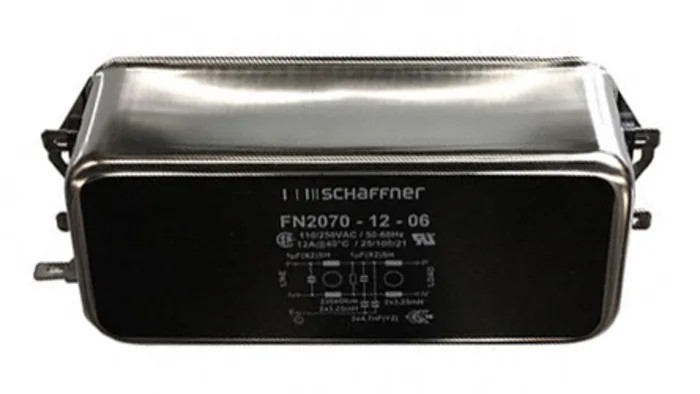

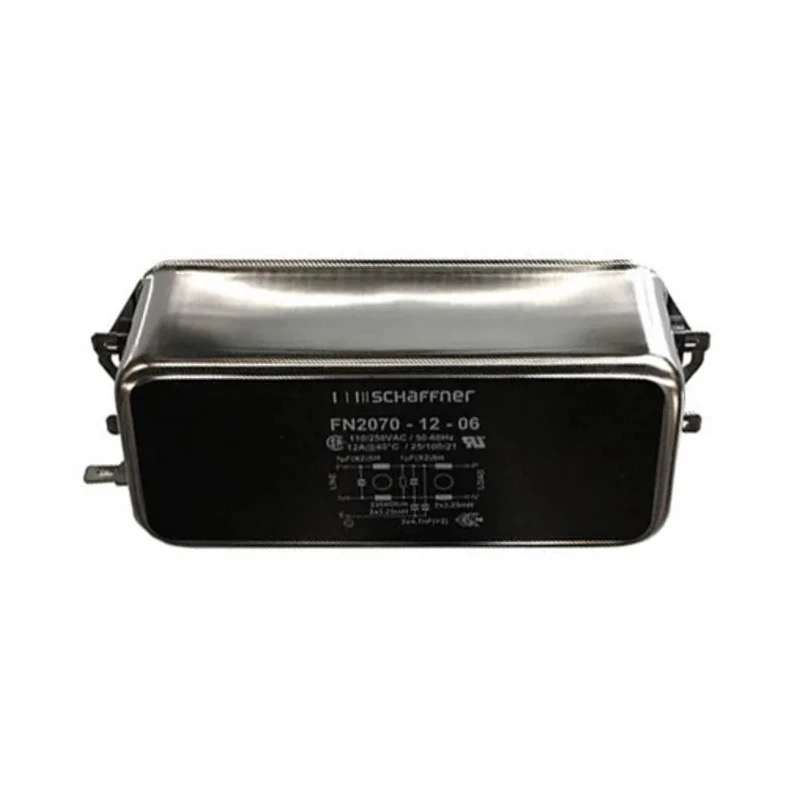

Schaffner Chassis Mount EMI Filter 12 A 250V ac/dc 400Hz Fast-On Termination FN2070
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schaffner |
| Height | 57.5mm |
| Length | 156mm |
| Model | FN2070 |
| Depth | 45.4mm |
| Mount Type | Chassis Mount |
| Operating Frequency | 400Hz |
| Series | FN2070 |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 2 |
| Resistance | 220kΩ |
| Capacitance | 4.7nF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 12A |
| Number of Phases | 1 |
| Leakage Current | 734μA |
| Maximum Voltage | 250V ac/dc |
| Inductance | 3.25mH |
| Termination Style | Fast-On |
| Power Loss | 13.1W |
Key Features
- Two-stage filter construction for enhanced EMI attenuation performance.
- Compact aluminium housing suitable for chassis mounting applications.
- Capacitance of 4.7nF and inductance of 3.25mH optimize noise suppression.
- Fast-On terminals enable quick and secure electrical connections.
- Suitable for single-phase electrical and electronic equipment applications.
- Operating temperature range from -25°C to 100°C ensures reliable performance.
- Low leakage current of 734µA promotes energy efficiency.
- Filter offers high saturation resistance and excellent thermal behavior.
Product Description
Schaffner FN2070 is a high-performance two-stage EMI filter designed for chassis mounting with fast-on termination. Rated for a maximum current of 12 A and operating voltage of 250V ac/dc at 400Hz frequency, it provides effective suppression of electromagnetic interference in sensitive electrical and electronic applications.
The filter's aluminium case offers robust mechanical protection and excellent thermal management. Its component values, including a capacitance of 4.7nF and an inductance of 3.25mH, are carefully optimized to deliver superior performance in both differential and common mode noise frequencies.
Equipped with 0.25-inch fast-on terminals, the FN2070 enables quick and reliable electrical connections, facilitating efficient assembly and maintenance. It features a leakage current of 734μA and power loss of 13.1W, suitable for demanding industrial environments.
This chassis mount EMI filter is widely used across applications such as industrial automation, machinery, medical electronics, and building automation systems where excellent filter performance is critical to device reliability and compliance.
Dimensions are 156mm length, 57.5mm height, and 45.4mm depth, ensuring compatibility with a broad range of equipment form factors. Operating temperature ranges from -25°C minimum to 100°C maximum, supporting reliable operation in varied environments.
Two-stage chassis mount design for optimized EMI filtering. Capacitance of 4.7nF and inductance of 3.25mH for high attenuation. Fast-On termination allowing fast and secure connections. Suitable for single phase systems with 12A max current.
Robust aluminium housing with excellent thermal characteristics. Operating temperature range from -25°C to 100°C. Applications in industrial, medical, and building automation equipment. Compact dimensions support easy integration.
Low leakage current and power loss enhances energy efficiency. Designed to meet demanding EMI suppression requirements. Discover more professional EMI Filter solutions from Schaffner at EnvMart to optimize your electronic system's electromagnetic compatibility.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The FN2070 has a maximum current rating of 12 A.
It operates at a maximum voltage of 250V ac/dc.
The dimensions are 156mm in length, 57.5mm in height, and 45.4mm in depth.
The FN2070 operates at an operating frequency of 400Hz.
This model has a capacitance of 4.7nF and an inductance of 3.25mH.
It features Fast-On termination style for quick and secure connections.
The leakage current for the FN2070 is 734μA.
The operating temperature range is from -25°C to 100°C.
The power loss for this model is 13.1W.
It is suitable for single-phase electrical and electronic equipment applications, including industrial automation, medical electronics, and building automation systems.
This model supports chassis mounting applications.
The FN2070 has a two-stage filter construction for enhanced EMI attenuation performance.
