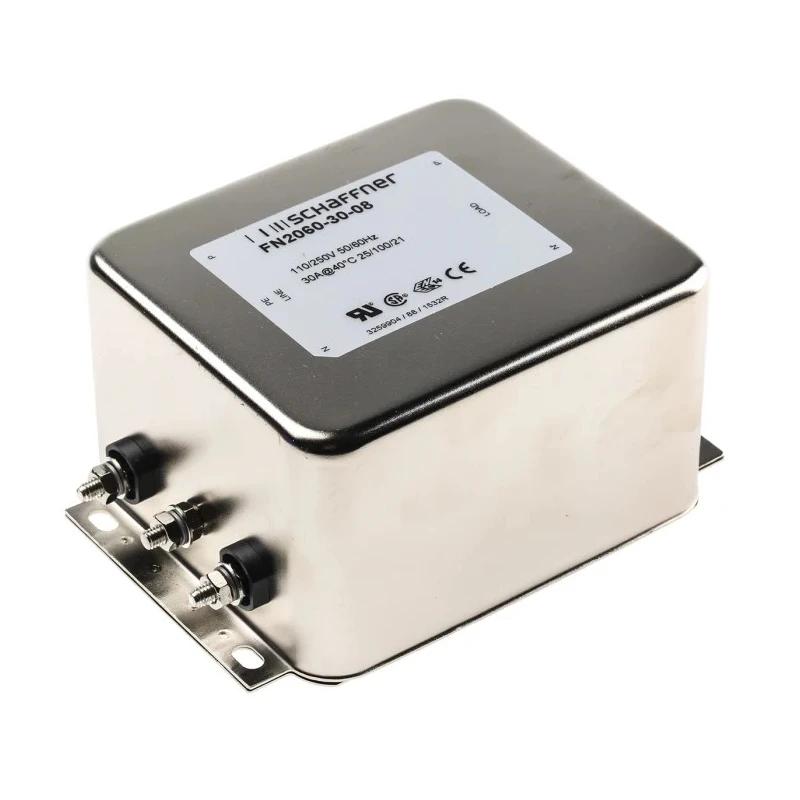

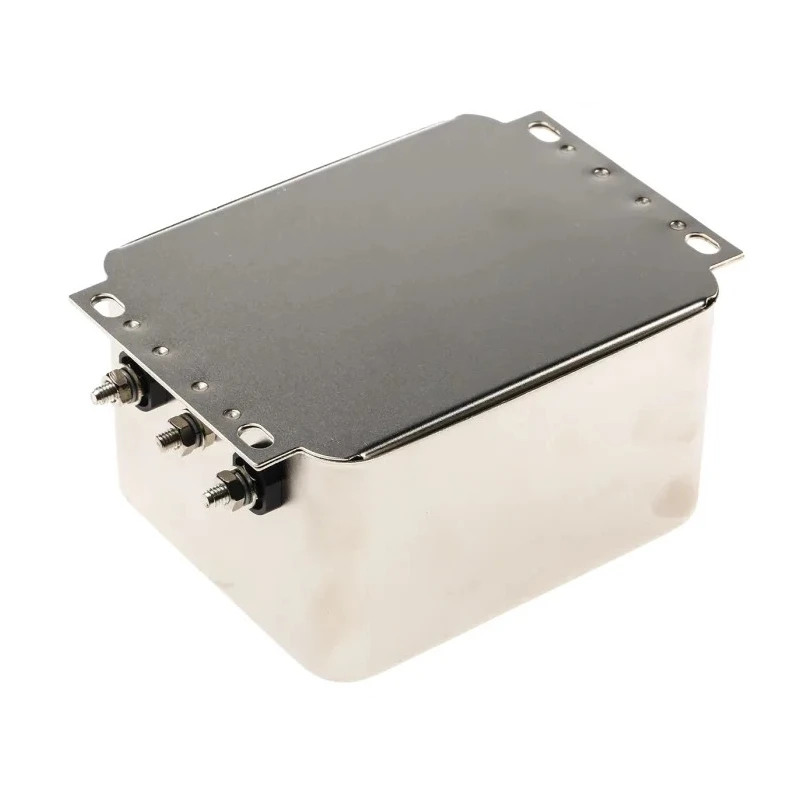

Schaffner Chassis Mount EMI Filter 30 A 250V ac/dc 400Hz Two-Stage Stud Termination 1 Phase FN2060

Schaffner FN2060 is a high-performance chassis mount EMI filter designed for effective suppression of electromagnetic interference in electronic and electrical systems. This two-stage filter features a robust aluminium enclosure ensuring durability and efficient heat dissipation, suitable for mounting in various chassis environments.

Operating at a maximum current of 30 amperes and voltage rating of 250 volts AC/DC at 400Hz frequency, the FN2060 model is engineered to handle rigorous industrial demands including machinery, automation systems, medical devices, and building control electronics. Its stud termination style facilitates secure and reliable electrical connections, making installation straightforward.

The filter provides 10 nF capacitance combined with 600μH inductance to maximize noise attenuation while limiting leakage current to 867μA. It is rated for temperature operation from -25°C up to 100°C, allowing consistent performance under wide environmental conditions. The compact dimensions (119mm length, 85.5mm height, and 57.6mm depth) make it adaptable to tight chassis spaces.

This EMI filter’s two-stage design is specifically tailored to improve common mode noise suppression, crucial for reducing electromagnetic disturbances in sensitive electronic systems. Its high resistance of 220kΩ and aluminium construction further augment its thermal stability and reliability in continuous operations.

Durable aluminium chassis mount enclosure enhances thermal performance. Two-stage filtering optimizes common mode noise attenuation. Rated for 30 A current and 250 V AC/DC voltage at 400Hz. Stud termination ensures secure and easy mounting.

Compact physical size supports integration in space-restricted applications. Low leakage current minimizes interference with surrounding components. Wide operating temperature range from -25°C to 100°C. Capacitance and inductance values provide balanced EMI filtering.

Suitable for use in industrial, medical, building automation, and electronic equipment. Manufactured in Thailand maintaining quality standards.

This Schaffner FN2060 EMI filter is ideal for demanding EMI suppression tasks in industrial, laboratory, construction, HVAC, manufacturing, and commercial electronic applications. Explore the wide range of EMI Filters available at EnvMart for reliable noise management solutions.
