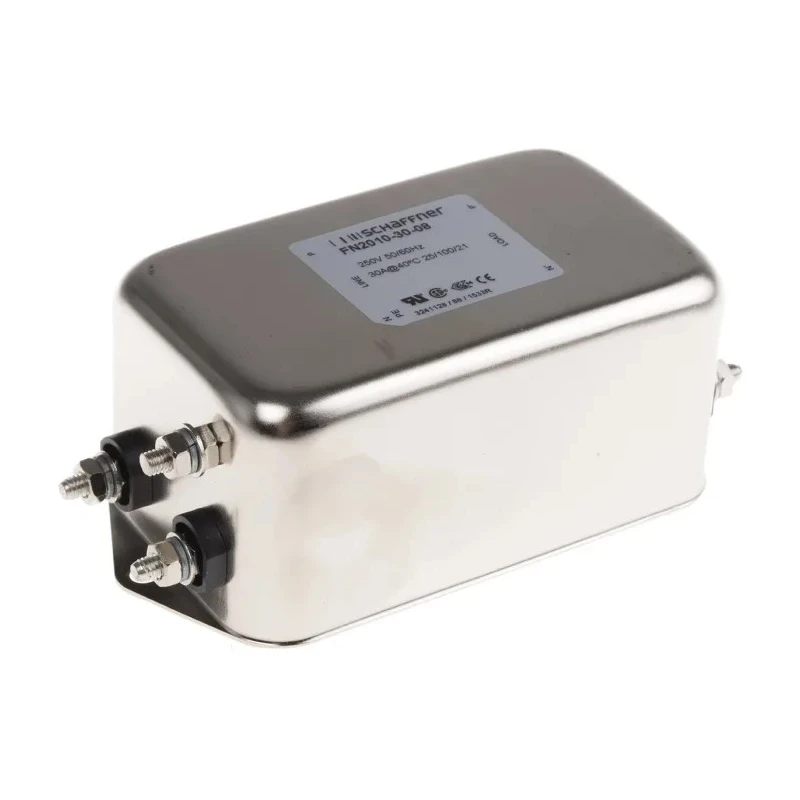

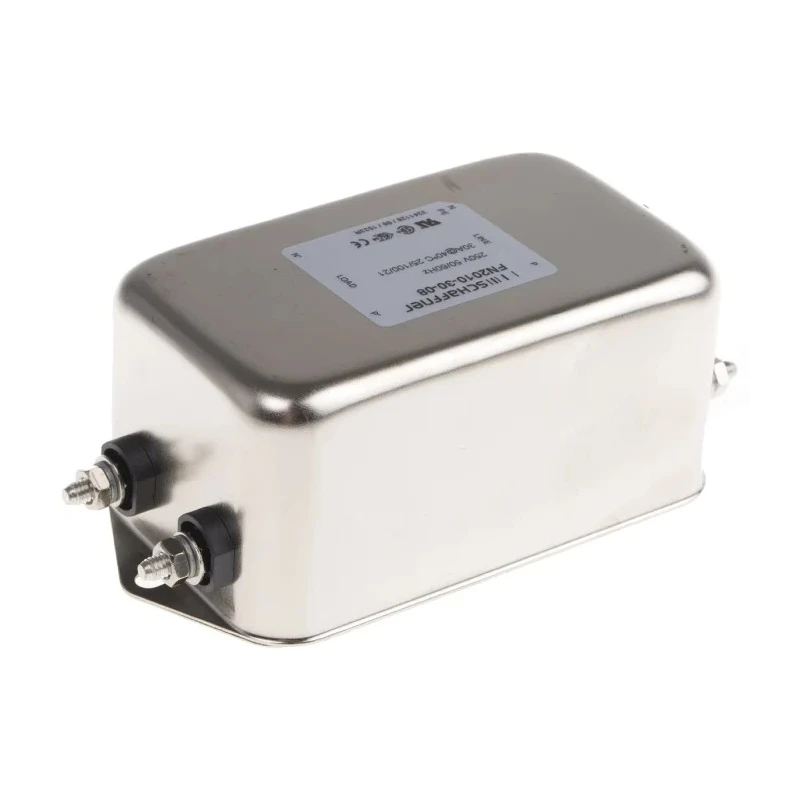

Schaffner Chassis Mount EMI Filter 30 A 250V AC/DC 0Hz-400Hz, Stud Termination, 1 Phase FN2010

Schaffner FN2010 chassis mount EMI filter offers industrial-grade electromagnetic interference suppression suitable for various electronic and electrical applications. It supports a maximum current rating of 30A and can operate safely at up to 250V AC/DC, covering frequency ranges from DC 0 Hz through 400 Hz.

Its chassis mount design with stud termination provides secure mechanical and electrical connection, and the aluminium case ensures robust construction and excellent heat dissipation. The filter features a capacitance of 470 nF and inductance of 870 μH, effectively reducing conducted EMI noise in power lines.

Engineered to operate in harsh environments, it performs reliably across temperatures from -25°C to 100°C, with low power dissipation of 6.3 W enhancing energy efficiency. The leakage current is low at 870 μA, helping maintain system safety and compliance.

Measuring 113.5 mm length, 57.5 mm depth, and 45.4 mm height, the compact form factor suits space-constrained industrial setups. Resistance of 1 mΩ contributes to minimal voltage drops and optimized performance.

This FN2010 Series filter is UL recognized, CSA certified, and aligns with VDE standards, making it trustworthy for general-purpose filtering in industrial, manufacturing, laboratory, and commercial environments requiring electromagnetic compatibility and noise suppression.

Manufactured in Thailand, it reflects Schaffner’s commitment to quality and reliable EMI filtering solutions suitable for chassis mounting requirements. Supports operating frequencies from DC 0 Hz to 400 Hz for versatile applications.

Features stud termination style on a durable chassis mount for secure installation. Constructed with aluminium case housing for reliable EMI filtering performance. Has a capacitance of 470 nF and inductance of 870 μH ensuring effective noise suppression.

Designed for operating temperatures ranging from -25°C to 100°C with low power loss at 6.3 W. Compact dimensions of 113.5mm length, 57.5mm depth, and 45.4mm height facilitate easy integration. Leakage current is minimal at 870 μA, with a resistance of 1 mΩ providing efficiency in filtering.

Manufactured in Thailand, this filter complies with UL recognition, CSA certification, and VDE standards. Discover more from our extensive Schaffner EMI Filter range in the Electronics Components category at EnvMart.
