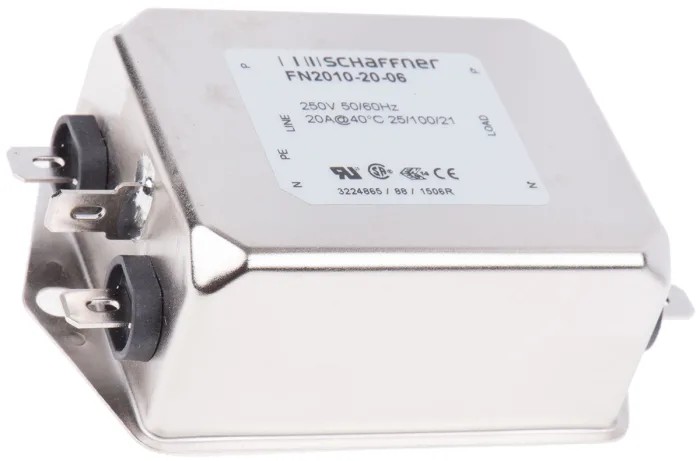

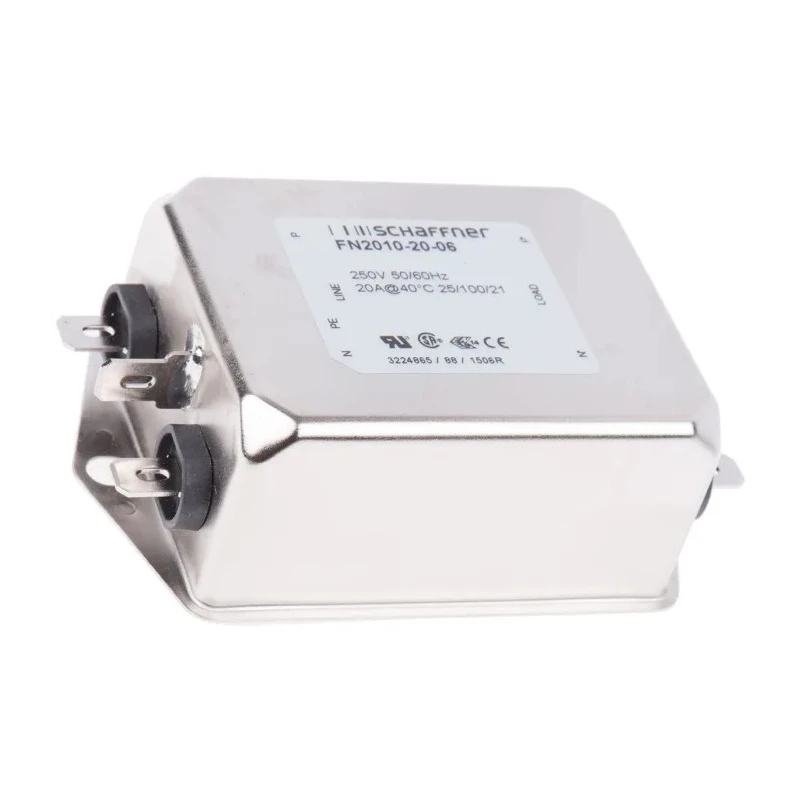

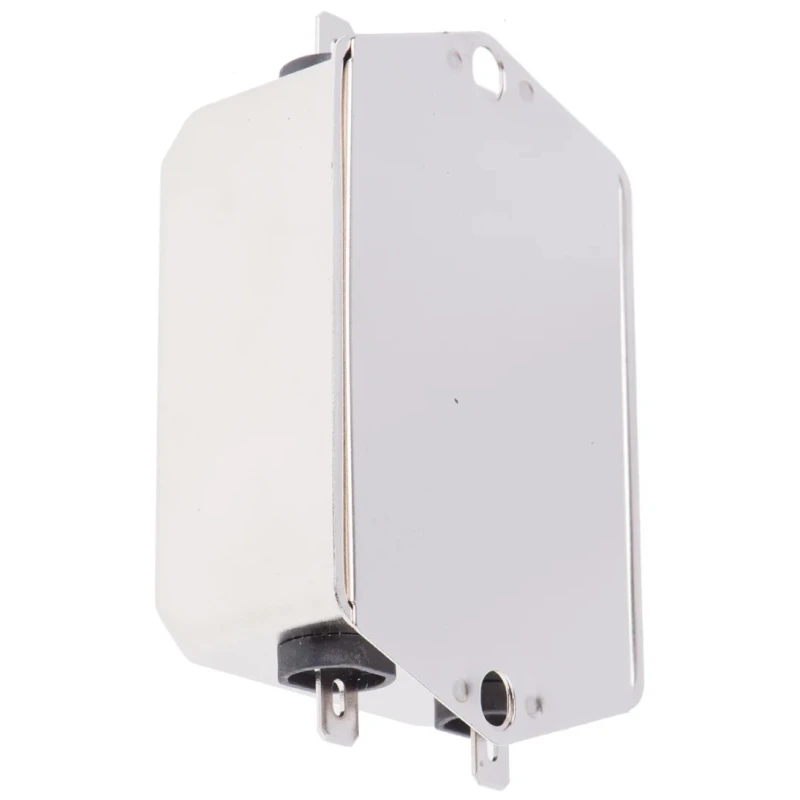

Schaffner Chassis Mount EMI Filter 20 A 250V ac/dc 0Hz - 400 Hz Fast-On Termination FN2010

Schaffner FN2010 EMI filter series is engineered for low-cost, general-purpose suppression of electromagnetic interference in electrical power and electronic systems. The chassis mount aluminium case ensures robust installation and efficient cooling under typical industrial conditions.

Specifically designed for single-phase power line filtering, the FN2010 model supports a maximum current rating of 20 amperes and AC/DC voltages up to 250 V. Operating frequency range spans from 0 Hz (DC) to 400 Hz, suitable for power supplies and motor controls operating across standard and specialized frequencies.

The filter features fast-on terminals for easy connection and secure attachment within control panels or equipment enclosures. Its electrical characteristics include a capacitance of 100 nanofarads and an inductance of 600 microhenries, providing effective filtering while maintaining low leakage current of 740 microamps and minimal resistance of 1 milliohm. Power loss is rated at 3.8 W, making it efficient for sustained industrial operation.

Operating temperature suitability ranges from -25°C to +100°C, allowing deployment in harsh or varying environments. With dimensions of 85 mm length, 54 mm depth, and 30.3 mm height, it fits compact chassis or panel mount installations.

Manufactured in Thailand, the FN2010 complies with recognized safety standards including UL and CSA. It is a trusted choice for industrial manufacturing systems, laboratory instruments, HVAC controllers, and power management electronics requiring reliable EMI protection.

The filter supports operating frequencies from direct current up to 400 Hz. Fast-On termination style allows for quick, secure electrical connections. Compact aluminium chassis mount design measures 85 mm length, 54 mm depth, and 30.3 mm height.

Capacitance rating of 100 nF with an inductance of 600 μH ensures effective EMI attenuation. Operates reliably in ambient temperatures from -25°C up to 100°C. Low leakage current of 740 μA and resistance value of 1 mΩ minimize power loss.

Power loss rated at 3.8 W suitable for general purpose filtering applications. Designed as a low-cost, general-purpose EMI filter with no built-in stages (single stage configuration). Manufactured in Thailand, the filter meets UL recognition and CSA certification standards.

Ideal for industrial, electronic, power & control systems, and laboratory use cases requiring EMI suppression.

This Schaffner FN2010 EMI filter is an essential component for electronics manufacturers, equipment builders, and systems integrators seeking robust electromagnetic interference solutions. Explore further Schaffner products and EMI Filter selections within the Electronics Components category at EnvMart.
