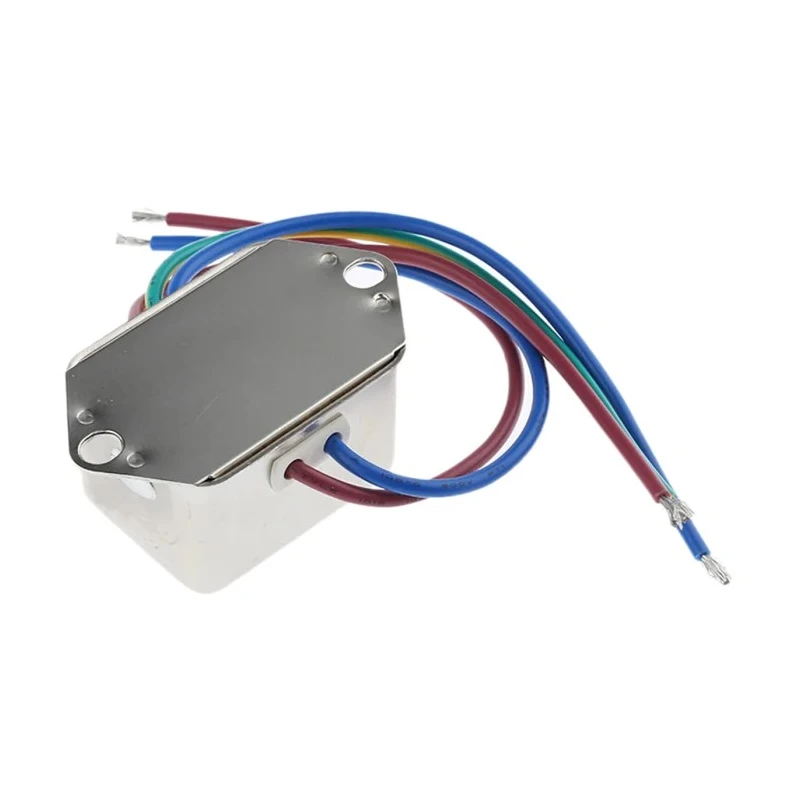

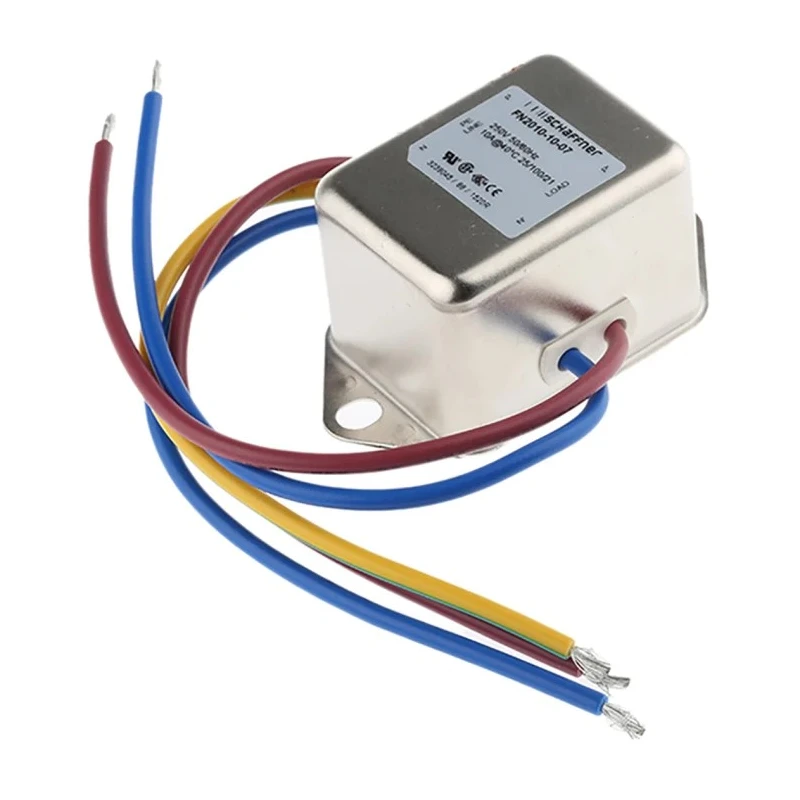

Schaffner Chassis Mount EMI Filter FN2010 10A 250V ac/dc 0Hz-400Hz Wire Termination FN2010

Schaffner FN2010 chassis mount EMI filter, model FN2010, is engineered for effective suppression of electromagnetic interference in electronic and electrical applications. Rated for a maximum current of 10A and maximum voltage of 250V ac/dc, this filter supports single-phase systems and operates across frequencies from 0 Hz up to 400 Hz. It features a robust aluminum chassis mount housing, making it suitable for industrial and commercial electrical assemblies.

The filter termination is via wire type with faston type terminals, facilitating secure and reliable electrical connections. With a capacitance of 100nF and inductance of 800μH, the FN2010 series provides excellent EMI mitigation, reducing noise and improving the performance of sensitive equipment.

It is designed to operate in temperature ranges between -25°C and 100°C, ensuring stable performance under varied environmental conditions. The product offers low resistance of 1mΩ for minimal power loss and has a leakage current of 740μA promoting operational safety.

Compact in size, the filter measures 64mm in length, 35mm in depth, and 29.3mm in height, fitting efficiently within electrical enclosures. Manufactured in Thailand, it conforms to global quality standards, although it does not carry specific certifications or approvals. This new-condition EMI filter is ideal for use in electrical manufacturing, automation, HVAC systems, and power supply setups requiring noise reduction.

Designed for general purpose EMI filtering applications in electrical systems. Chassis mount aluminum case provides robust mechanical protection. Wire termination utilizes faston type terminals for secure connections. Operates at frequencies ranging from 0 Hz to 400 Hz for versatile compatibility.

Capacitance of 100nF and inductance of 800μH for effective noise attenuation. Operating temperature range from -25°C to 100°C ensures reliability. Low resistance of 1mΩ minimizes power losses. Leakage current rated at 740μA for enhanced safety.

Compact form factor with dimensions 64mm x 35mm x 29.3mm. Manufactured in Thailand with new product quality assurance. Explore EnvMart's comprehensive range of EMI Filters and power line filters to find compatible solutions for your electronic and electrical manufacturing needs.
