| Country of Origin | Malaysia |
|---|---|
| Brand | Nexperia |
| Height | 1mm |
| Length | 2.25mm |
| Model | 74HCT1G14GW,125 |
| Width | 1.35mm |
| Mount Type | Surface |
| Compatibility | Input TTL, Output CMOS |
| Output type | Inverting |
| Series | 74HCT1G14 |
| Input Type | Schmitt Trigger |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 5 |
| Number of Elements per Chip | 1 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | HCT |
| Logic Function | Inverter |
| Minimum Supply Voltage | 4.5V |
| Maximum High Level Output Current | -2mA |
| Maximum Propagation Delay Time @ CL | 190ns |
| Maximum Low Level Output Current | 2mA |

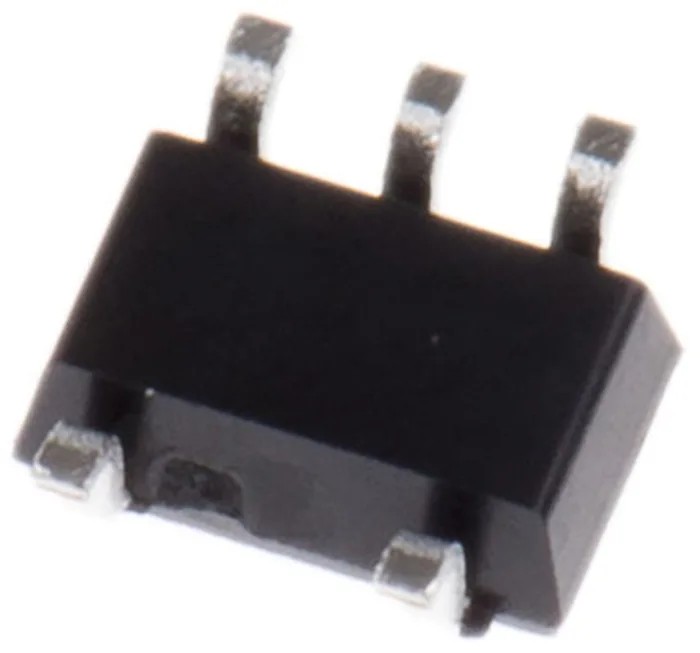

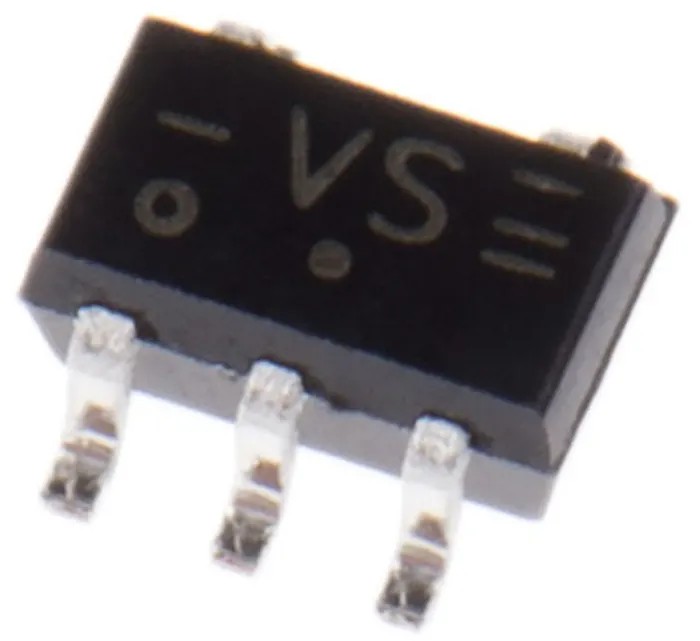

Nexperia 74HCT1G14GW,125 is a high-performance Schmitt Trigger input inverter IC from the 74HCT1G14 series, implemented in low-power, high-speed CMOS technology. It operates within a supply voltage range of 4.5 to 5.5 volts and comes in a compact 5-pin TSSOP surface mount package designed for space-efficient printed circuit board layouts.
This inverter IC provides a Schmitt trigger input for improved noise immunity and a clean output signal, making it ideal for applications requiring signal conditioning, waveform shaping, and switching. The device offers a typical maximum propagation delay time of 190 nanoseconds under standard load conditions, ensuring fast signal transitions suitable for industrial and commercial electronics.
The IC supports operation over a wide temperature range from -40°C to 125°C, catering to harsh environmental conditions in industrial automation, embedded systems, and logic control units. It features compatibility with TTL input logic levels and CMOS output, ensuring interoperability with a broad range of digital circuits.
The maximum high-level output current is -2 mA and the low-level output current is 2 mA, enabling reliable driving of various digital loads without external buffering.
Applications include industrial control systems, instrumentation, computing equipment, and electronic switching circuits where precise signal inversion with hysteresis is necessary.
Provides a Schmitt trigger input with inverting output functionality. Features low propagation delay time of 190 ns at specified load conditions. Supports operating temperatures from -40°C to 125°C for industrial applications.
Compact surface-mount package with 5 pins for PCB mounting. Compatible with TTL input and CMOS output logic levels. Maximum supply voltage up to 5.5 V for flexible power supply use. Maximum output current ratings of ±2 mA to accommodate diverse load conditions.
Manufactured in Malaysia ensuring high quality and reliability.
This product is suited for use in industrial, electronic components, power connectors, semiconductor, logic ICs, and inverter ICs applications. Explore more inverter ICs and Nexperia products at EnvMart for your specialized electronics manufacturing needs.
Explore more products in our Inverters ICs category.
