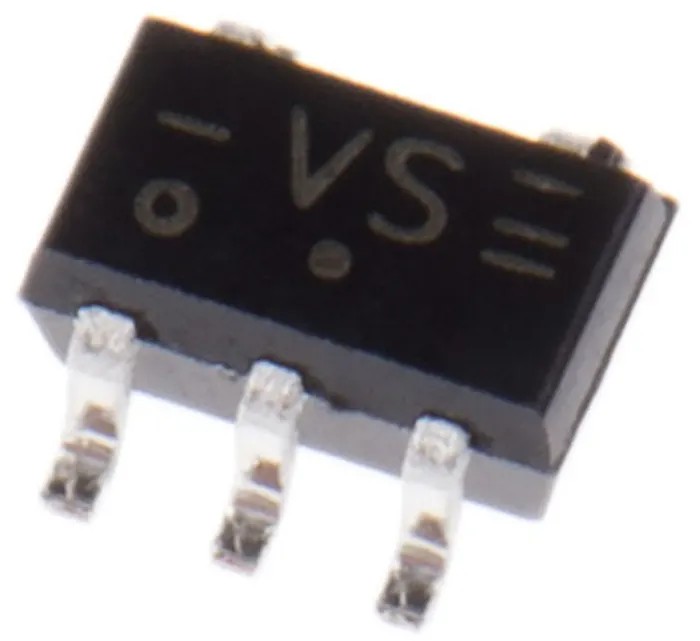

Nexperia Schmitt Trigger Input Inverter 1 Element CMOS Logic 4.5V to 5.5V 5-Pin TSSOP 74HCT1G14GW,125

Nexperia 74HCT1G14GW,125 is a Schmitt Trigger Input Inverter IC in a compact 5-pin TSSOP package, designed for high-speed CMOS logic applications operating between 4.5 V and 5.5 V. It features a single inverter element with Schmitt trigger input, providing noise immunity and signal stabilization in digital circuit designs.

The device complies with the 74HCT logic family standards and supports compatibility with TTL inputs and CMOS output levels, making it ideal for integration in various industrial, electronic, and embedded systems. The inverter has a maximum propagation delay time of 190 nanoseconds, facilitating quick signal transitions.

Its pin count of 5 facilitates surface mount technology (SMT) assembly, with package dimensions of approximately 2.25 mm (length) × 1.35 mm (width) × 1 mm (height), suitable for space-constrained PCB designs. Operating temperature ranges from -40°C to 125°C, ensuring reliable performance under diverse environmental conditions.

The inverter provides a maximum output current of -2 mA (high level) and 2 mA (low level), enabling proper driving capabilities for logic signals. This device does not carry automotive-specific certifications and is manufactured in Malaysia.

The product is commonly used in electronic circuits for logic signal inversion with Schmitt trigger input advantages, including noise rejection and improved signal integrity in industrial, laboratory, and consumer electronics applications.

This inverter features a single element per chip for precise logic operations. Operating voltage ranges from 4.5 to 5.5 V, compatible with TTL inputs and CMOS outputs. The package type is Surface Mount TSSOP with 5 pins ensuring compact PCB footprint.

It offers a maximum propagation delay time of 190 nanoseconds, enabling efficient signal processing. Designed for operation over a wide temperature range from -40°C to 125°C for industrial applications. The device includes inverting Schmitt trigger input functionality for improved noise immunity.

Dimensions measure approximately 2.25 mm in length, 1.35 mm in width, and 1 mm in height. Maximum output current is ±2 mA with a logic family of HCT ensuring high compatibility. This component is suitable for integration in electronic circuits requiring signal conditioning and inversion.
