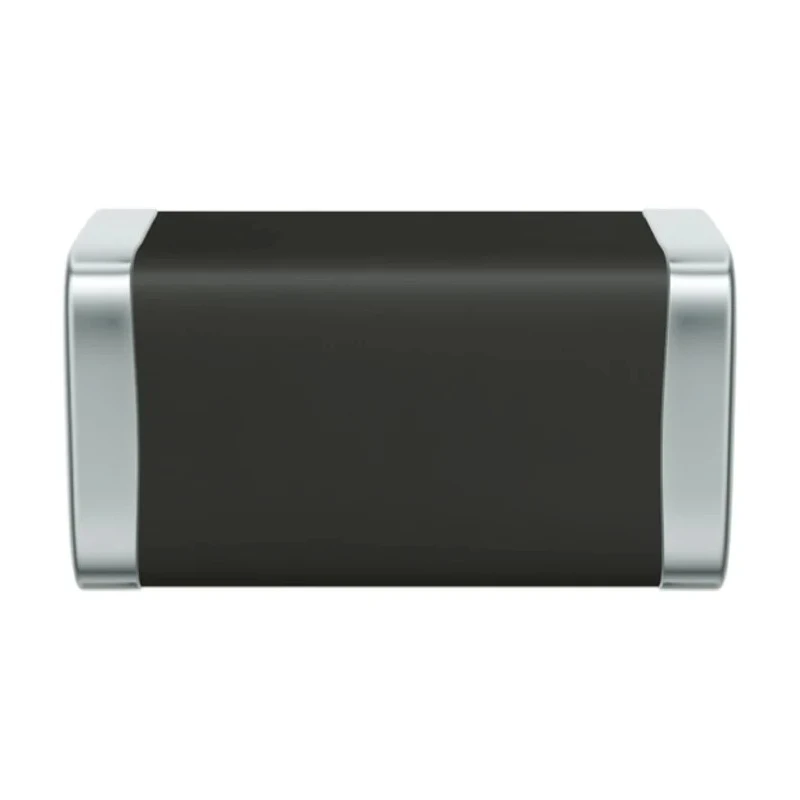

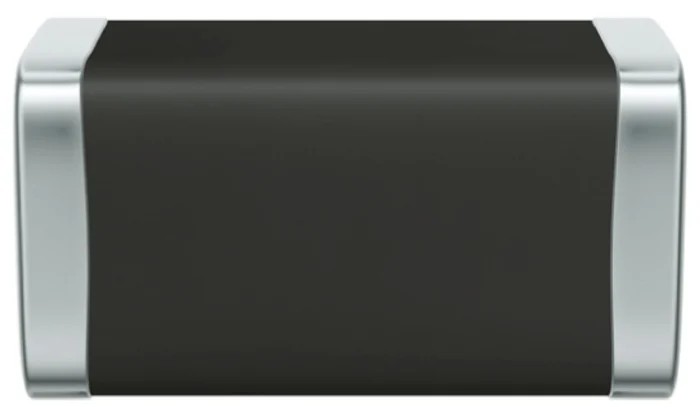

TDK Multilayer Varistor 1 A Clamping 17 V Ceramic Surface Mount CT Series CT1206M4G

Free Delivery in India | Lowest Global Shipping Charges

TDK Multilayer Varistor 1 A Clamping 17 V Ceramic Surface Mount CT Series CT1206M4G



Category Varistor Brand TDK Condition New

Specifications

Country of Origin	Croatia
Brand	TDK
Material	Ceramic
Height	1.7mm
Length	3.2mm
Model	CT1206M4G
Depth	1.6mm
Mount Type	Surface
Series	CT
Energy Rating	0.3J
Maximum Operating Temperature	85°C
Maximum dc Voltage	5.5V dc
Standards/Approvals	RoHS
Maximum AC Voltage	4V ac
Clamping Voltage VC	17V
Clamping Current	1A
Maximum Surge Current	150A
Number of Circuits	1

Key Features

Constructed with ceramic material for reliable surge protection.
Surface mount chip varistor optimized for electronic components.
Rated for maximum AC voltage of 4 V AC and DC voltage of 5.5 V DC.
Capable of handling maximum surge current up to 150 A.
Compact dimensions of 3.2 mm length, 1.7 mm height, and 1.6 mm depth.
Maximum operating temperature rating of 85°C ensuring device durability.
Provides an energy rating of 0.3 joules suitable for transient voltage suppression.
Complies with RoHS standards ensuring environmental safety.

Product Description

TDK CT1206M4G is a multilayer varistor designed for surface mount applications providing surge protection with a clamping current of 1 A and clamping voltage of 17 V. This ceramic varistor belongs to the CT series, which is engineered for high reliability in electronic circuit protection.

The device supports a maximum AC voltage rating of 4 V AC and a maximum DC voltage rating of 5.5 V DC, making it suitable for various low voltage electronic circuits. With a maximum surge current capacity of 150 A, it provides robust protection against transient voltage spikes.

Its compact package dimensions measure 3.2 mm in length, 1.7 mm in height, and 1.6 mm in depth, allowing efficient use of PCB space in modern electronic designs. The maximum operating temperature is rated at 85°C, making it capable of stable performance under normal operating conditions.

The energy rating of 0.3 joules further defines the varistor's ability to absorb transient energy, ensuring long-term circuit protection. The product is RoHS compliant, confirming adherence to environmental directives and safety standards.

Manufactured in Croatia, this varistor is part of the TDK CT series surface mount chip varistors featuring nickel barrier terminations for enhanced durability and solderability. Constructed from ceramic material for high surge suppression efficiency.

Surface mount design supports automated PCB assembly processes. High maximum surge current of 150 A protects against voltage transients. Compact size suits applications with limited PCB space. Energy rating of 0.3 J ensures protection against short transient events.

RoHS compliant for environmental safety and quality assurance.

This multilayer varistor is ideal for electronic component protection in consumer electronics, industrial controls, and power supply circuits, thereby enhancing product reliability and lifespan. Browse similar Varistors and surge protection components to find complementary solutions for your applications on EnvMart.
