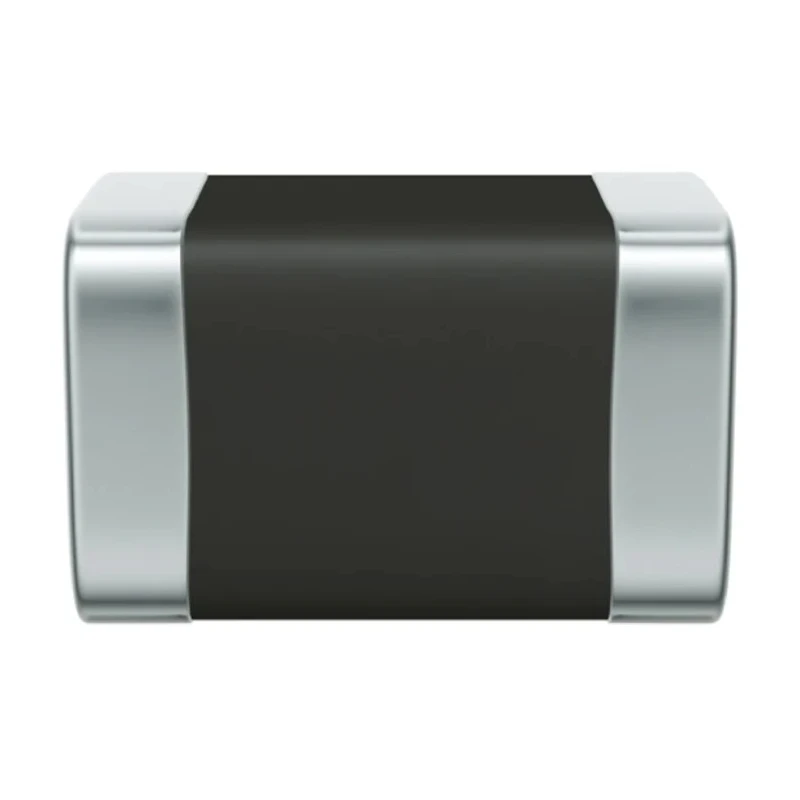

TDK Automotive E Metal Oxide Varistor Surface Mount 250 pF 1 A Clamping Voltage 290 V Model B72510E0250K062
Specifications
| Country of Origin | Croatia |
|---|---|
| Brand | TDK |
| THICKNESS | 2.5mm |
| Length | 2mm |
| Model | B72510E0250K062 |
| Depth | 1.25mm |
| Mount Type | Surface |
| Series | Automative E |
| Energy Rating | 25J |
| Maximum Operating Temperature | 150°C |
| Capacitance | 250pF |
| Minimum Operating Temperature | -55°C |
| Maximum dc Voltage | 56V dc |
| Standards/Approvals | RoHS |
| Package/Case | 0805 |
| Pin Count | 24 |
| Termination Style | Nickel Barrier Termination |
| Maximum AC Voltage | 25V ac |
| Clamping Voltage VC | 290V |
| Clamping Current | 1A |
| Maximum Surge Current | 80A |
| Automotive Standard | AEC-Q200 |
| Varistor Voltage | 18 to 68 V |
Key Features
- Capacitance value of 250 pF ensures effective transient voltage suppression.
- Clamping voltage rated at 290 V for reliable protection.
- Varistor voltage ranges from 18 to 68 volts.
- Compact 0805 package suitable for PCB mounting.
- Nickel barrier termination provides durability and stable electrical connection.
- Operating temperature ranges from -55°C to 150°C for automotive environments.
- Complies with RoHS standards and automotive AEC-Q200 qualification.
- Maximum surge current withstand of 80 amperes enhances transient robustness.
Product Description
TDK B72510E0250K062 is an Automotive E series Metal Oxide Varistor designed for surface mount applications offering a capacitance of 250 pF and a clamping current rating of 1 A. This varistor features a clamping voltage of 290 V and operates effectively across a varistor voltage range between 18 and 68 volts.
The device comes in a compact 0805 package with dimensions approximately 2 mm in length, 2.5 mm thickness, and 1.25 mm depth, designed for efficient PCB integration in automotive and industrial electronic circuits. Nickel barrier termination guarantees reliable electrical contact and mechanical robustness, suitable for automotive environments requiring high reliability.
Operating temperatures span from -55°C up to 150°C, meeting the stringent requirements of automotive applications. It is RoHS compliant and meets the automotive industry standard AEC-Q200 ensuring quality and durability under harsh conditions. The maximum surge current capability of 80 A and an energy rating of 25 Joules make it efficient in protecting sensitive electronics from transient voltage spikes.
This varistor is suitable for use in automotive electronics, industrial controls, and other high-reliability environments where compact size and surge protection are critical. Its low capacitance value allows compatibility with high-speed communication lines while providing transient suppression.
Capacitance value of 250 pF ensures effective transient voltage suppression. Clamping voltage rated at 290 V for reliable protection. Varistor voltage ranges from 18 to 68 volts. Compact 0805 package suitable for PCB mounting.
Nickel barrier termination provides durability and stable electrical connection. Operating temperature ranges from -55°C to 150°C for automotive environments. Complies with RoHS standards and automotive AEC-Q200 qualification.
Maximum surge current withstand of 80 amperes enhances transient robustness. Energy rating of 25 Joules ensuring effective energy absorption during transient events. Explore more automotive and electronic components like Varistors on EnvMart for quality industrial and electronic solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value is 250 pF, ensuring effective transient voltage suppression.
The clamping voltage is rated at 290 V, providing reliable protection against voltage spikes.
The varistor voltage ranges from 18 to 68 volts, suitable for various applications.
This model has dimensions of approximately 2 mm in length, 2.5 mm in thickness, and 1.25 mm in depth.
It can withstand a maximum surge current of 80 A, enhancing its robustness against transient events.
The operating temperature ranges from -55°C to 150°C, making it suitable for automotive environments.
It features a nickel barrier termination, which provides durability and stable electrical connections.
Yes, it complies with RoHS standards and meets the automotive AEC-Q200 qualification.
The energy rating is 25 Joules, ensuring effective energy absorption during transient events.
It comes in a compact 0805 package, designed for surface mount applications.
The maximum DC voltage rating is 56 V, suitable for various electronic applications.
It is suitable for automotive electronics, industrial controls, and other high-reliability environments requiring surge protection.
