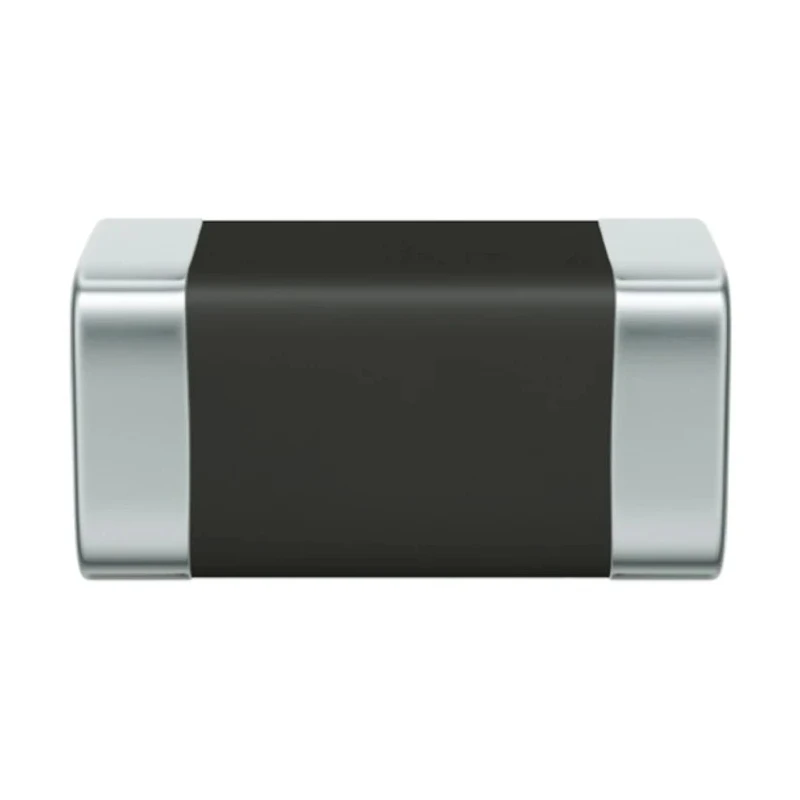

TDK Automative E Metal Oxide Varistor, 90 pF Capacitance, 1 A Clamping Current, 290 V Clamping Voltage, 0603 B72500E0250K060
Specifications
| Country of Origin | Croatia |
|---|---|
| Brand | TDK |
| THICKNESS | 2.5mm |
| Length | 1.6mm |
| Model | B72500E0250K060 |
| Depth | 0.8mm |
| Packaging | Cardboard/Blister Reel |
| Mount Type | Surface |
| Series | Automative E |
| Energy Rating | 25J |
| Maximum Operating Temperature | 150°C |
| Capacitance | 90pF |
| Minimum Operating Temperature | -55°C |
| Maximum dc Voltage | 56V dc |
| Standards/Approvals | RoHS, UL 94 V-0, AEC-Q200 |
| Package/Case | 0603 |
| Termination Style | Nickel Barrier (AgNiSn) |
| Maximum AC Voltage | 25V ac |
| Clamping Voltage VC | 290V |
| Clamping Current | 1A |
| Maximum Surge Current | 30A |
| Automotive Standard | AEC-Q200 |
| Varistor Voltage | 18 to 68 V |
Key Features
- Capacitance of 90 pF ensures stable performance in signal circuits.
- Clamping current rated at 1 A offers effective transient voltage suppression.
- Clamping voltage of 290 V provides protection against voltage spikes.
- Surface mount type with Nickel Barrier (AgNiSn) termination for easy PCB integration.
- Operating temperature range from -55°C to 150°C suits automotive applications.
- Complies with RoHS, UL 94 V-0, and automotive AEC-Q200 standards.
- Energy rating of 25J supports high surge energy absorption.
Product Description
TDK B72500E0250K060 Metal Oxide Varistor is designed for robust surge protection in automotive and industrial electronic applications. This surface mount device, featuring a compact 0603 case, combines high performance with space-efficiency suitable for modern PCB layouts.
With a capacitance of 90 pF, the varistor is ideal for stabilizing circuits against voltage transients while maintaining signal integrity. It provides clamping current up to 1 A and withstands clamping voltage of 290 V, ensuring effective transient voltage suppression.
The varistor supports a maximum AC voltage of 25 V and DC voltage of 56 V, and a maximum surge current rating of 30 A, making it suitable for protecting sensitive automotive electronics from power surges and spikes.
Operating reliably from -55°C to 150°C, this component meets stringent automotive standards including AEC-Q200, and is RoHS and UL 94 V-0 compliant, assuring safety and environmental compliance.
The device is terminated with Nickel Barrier (AgNiSn) contacts to ensure solder integrity and long-term reliability in harsh conditions. Its small dimensions (1.6 mm length, 0.8 mm depth, and 2.5 mm thickness) allow use in compact, high-density designs.
This Metal Oxide Varistor from TDK is manufactured in Croatia and is an established choice for industrial, automotive, and electronic surge protection applications. Capacitance of 90 pF ensures stable performance in signal circuits.
Clamping current rated at 1 A offers effective transient voltage suppression. Clamping voltage of 290 V provides protection against voltage spikes. Surface mount type with Nickel Barrier (AgNiSn) termination for easy PCB integration.
Operating temperature range from -55°C to 150°C suits automotive applications. Complies with RoHS, UL 94 V-0, and automotive AEC-Q200 standards. Compact dimensions: 1.6 mm length, 0.8 mm depth, 2.5 mm thickness facilitate space-saving designs.
Energy rating of 25J supports high surge energy absorption. Explore more high-quality Varistors and surge protection components in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance of this varistor is 90 pF, ensuring stable performance in signal circuits.
The clamping voltage for this varistor is 290 V, providing protection against voltage spikes.
This model has a maximum surge current rating of 30 A, suitable for protecting sensitive electronics from power surges.
The operating temperature range for this varistor is from -55°C to 150°C, making it suitable for automotive applications.
The dimensions of this varistor are 1.6 mm in length, 0.8 mm in depth, and 2.5 mm in thickness.
It features a Nickel Barrier (AgNiSn) termination style for easy PCB integration and solder integrity.
This model complies with RoHS, UL 94 V-0, and automotive AEC-Q200 standards.
The maximum DC voltage rating for this varistor is 56 V.
The energy rating of this model is 25 J, which supports high surge energy absorption.
It is packaged in a cardboard/blister reel, suitable for surface mount applications.
The maximum AC voltage rating for this varistor is 25 V.
This varistor is designed for robust surge protection in automotive and industrial electronic applications.
