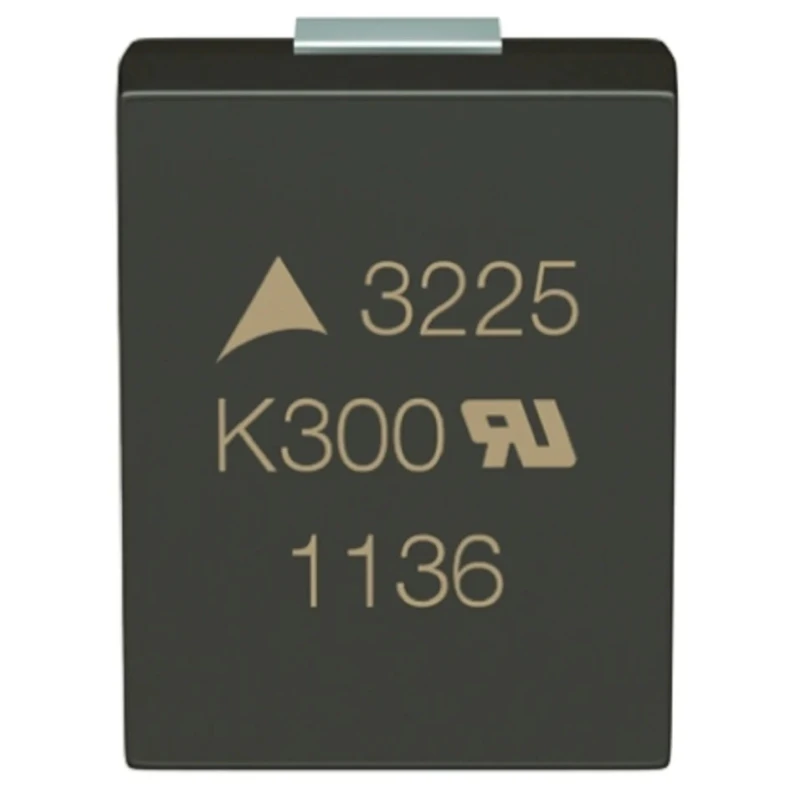

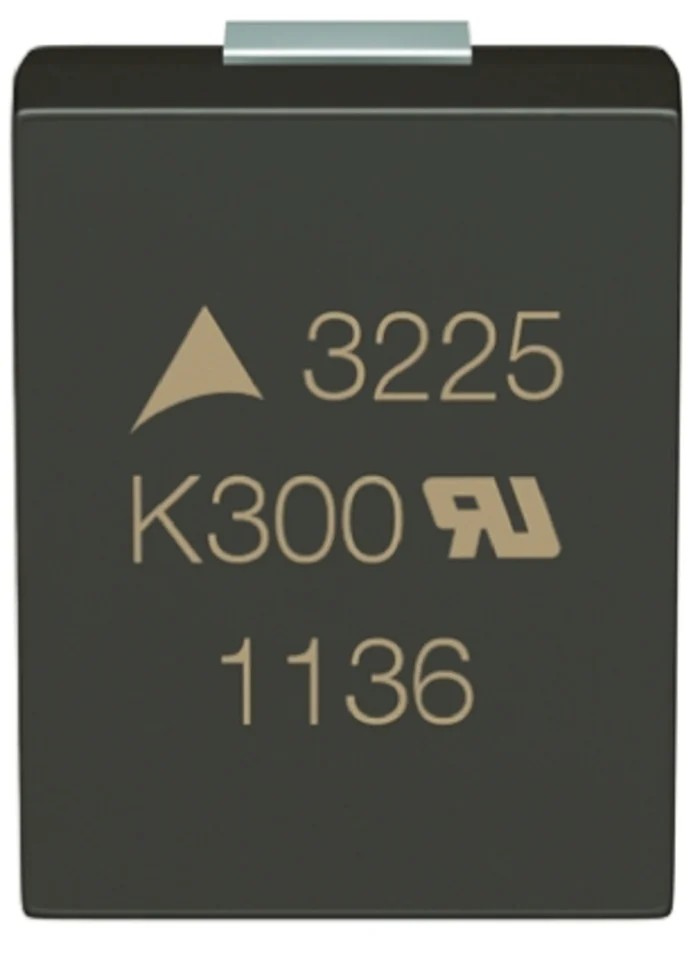

TDK CU Metal Oxide Varistor Surface Mount 5 A Clamping Current 650 V B72650M0251K072

TDK B72650M0251K072 is a surface mount metal oxide varistor from the CU series designed for effective surge protection in electronic and electrical circuits. This varistor features a clamping voltage of 650 V and a clamping current rated at 5 A, making it ideal for protecting sensitive components against voltage spikes.

Its robust construction includes a thermoplastic encapsulation compliant with UL94 V0 standards and tinned copper terminations to ensure reliable mounting and electrical connectivity.

The component's compact cylindrical form measures 8 mm in length, 6.3 mm in depth, and 4.5 mm in height, suitable for space-constrained PCB designs.

With a maximum AC voltage rating of 250 V and DC voltage rating of 320 V, this varistor can handle surges up to 400 A in peak current, providing excellent transient voltage suppression.

Designed for operation up to 85°C, it meets CSA, UL, and RoHS compliance standards, assuring safety and environmental quality. Encapsulated in thermoplastic for UL94 V0 compliance. Rated 5 A clamping current and 650 V clamping voltage.

Maximum AC voltage of 250 V and DC voltage of 320 V. Compact dimensions of 8 mm length, 6.3 mm depth, and 4.5 mm height. Energy rating of 23 Joules for surge absorption. RoHS compliant and certified by CSA and UL standards.

Suitable for industrial, electronic, power supply, and surge protection applications.

The TDK B72650M0251K072 varistor is a reliable component choice for engineers designing circuit protection solutions in industrial and commercial electronics, HVAC, manufacturing, and power management equipment.

Explore more high-quality surge protection components and Varistors in the Electronics Components category at EnvMart.
