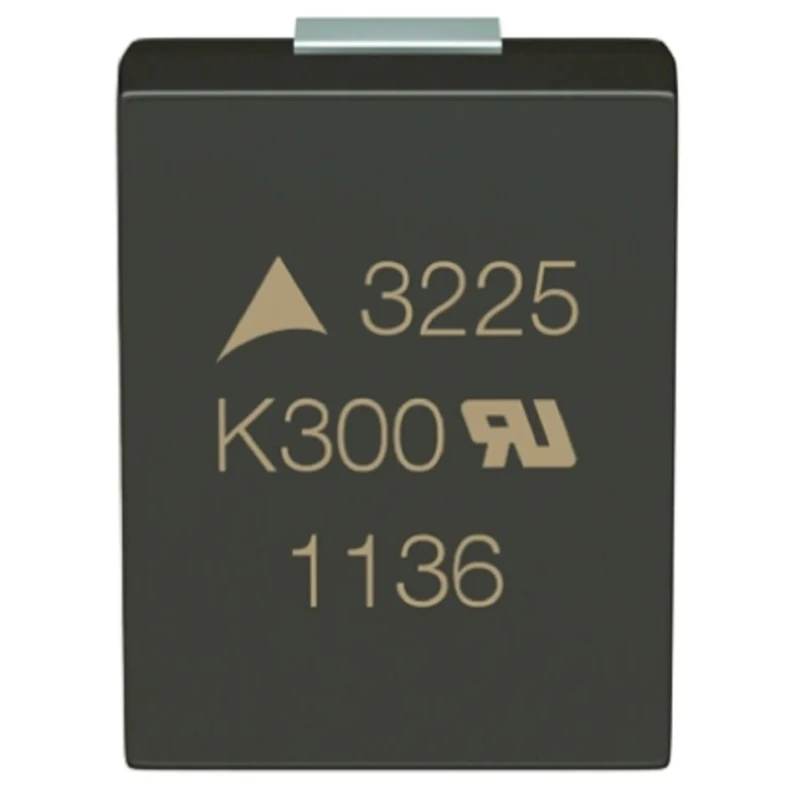

TDK CU Metal Oxide Varistor, Surface Mount, 5 A Clamping Current, 455 V Clamping Voltage, 175 V AC, 225 V B72650M0171K072

TDK B72650M0171K072 CU Metal Oxide Varistor is a surface mount device designed for effective transient voltage suppression in electronic circuits. It features a 5 A clamping current with a clamping voltage of 455 V, making it suitable for protecting sensitive components from voltage spikes. The varistor is constructed with metal oxide material and is encapsulated in thermoplastic meeting UL94 V0 flame retardant standards, ensuring high reliability and safety in operation.

With a maximum AC voltage rating of 175 V and a maximum DC voltage rating of 225 V, this varistor is well-suited for a variety of industrial and electronic applications, including surge protection in power supply circuits and electronic equipment. Its compact cylindrical form factor, measuring 8 mm in length, 4.5 mm in height, and 6.3 mm in depth, allows easy surface mounting on printed circuit boards.

The device can safely handle transient surges up to 400 A and has an energy rating of 23 joules, indicating its capability to absorb high energy surges. It operates reliably up to a maximum temperature of 85°C, suitable for normal industrial environments. Additionally, this varistor meets the CSA, UL, and RoHS standards, assuring compliance with safety and environmental regulations.

TDK's CU series has gained recognition for its high quality and durability in surge protection components, and PSpice models are available for simulation purposes. This makes it an excellent choice for applications in electronics manufacturing, power systems, industrial machinery, and other related fields requiring surge voltage handling capabilities.

Surface mount varistor encapsulated in thermoplastic for durability and flame resistance. Clamping voltage rated at 455 V for effective transient voltage suppression. Maximum AC voltage of 175 V and DC voltage of 225 V ensures reliable operation.

Energy rating of 23 joules maintains performance under surge conditions. Compact size with 8 mm length, 4.5 mm height, and 6.3 mm depth suitable for PCB mounting. High maximum surge current of 400 A for robust transient absorption.

Complies with CSA, UL, and RoHS standards ensuring quality and safety. Operates safely up to 85°C maximum temperature.

This TDK CU Metal Oxide Varistor is ideal for industrial and electronic applications requiring robust surge protection. Its surface mount design, high energy rating, and quality certifications make it a dependable component for circuit protection. Explore related high-quality Varistors and surge protection components in the Electronics Components category on EnvMart.
