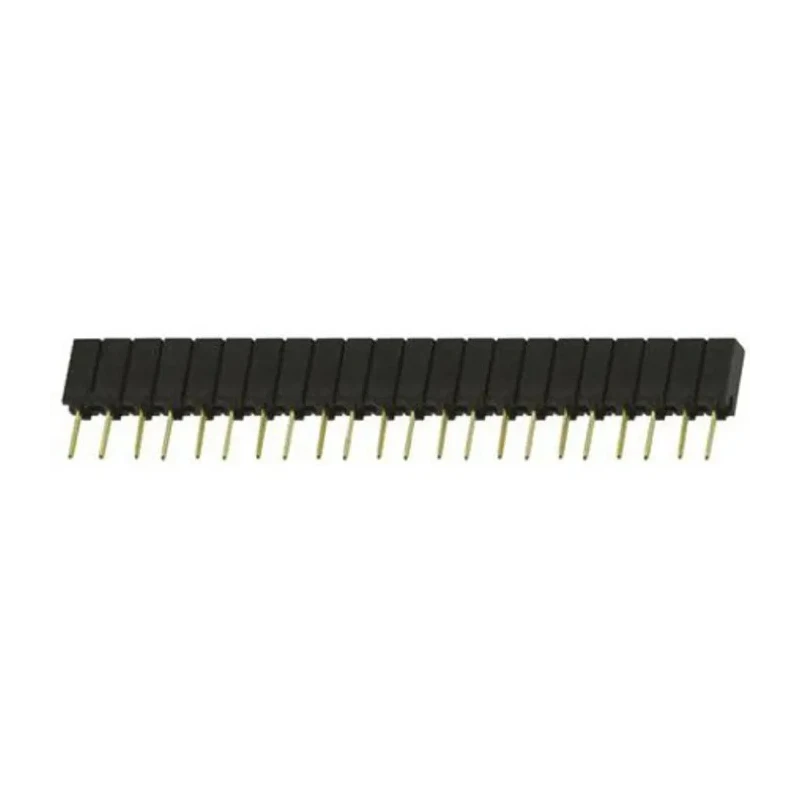

Samtec SSA Series Straight Through Hole PCB Socket 22-Contact 1 Row 2.54mm Pitch Solder SSA-122-S-G
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1kV |
| Brand | Samtec |
| Orientation | Straight |
| Current | 12A |
| Model | SSA-122-S-G |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Bronze |
| Series | SSA |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 22 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Single row, 22-contact board-to-board socket with 2.54 mm pitch.
- Constructed from UL rated 94 V-O high temperature black PET polyester housing.
- Double side-swipe phosphor bronze contacts with 0.25μm gold plating.
- Rated for 12 A current and 1 kV voltage for robust performance.
- Operating temperature range from -55°C to 125°C.
- Straight orientation with through hole solder termination.
- Compatible with Samtec TS, BBS, and BBL machine stacking strips.
- Suitable for industrial, electronics manufacturing, and laboratory applications.
Product Description
Samtec SSA-122-S-G is a high-quality straight through hole PCB socket designed for board-to-board connection applications. This single row socket includes 22 contacts with a 2.54 mm pitch, delivering reliable connectivity in electronic assemblies.
The housing is made from UL rated 94 V-O high temperature black PET polyester, ensuring excellent heat resistance and durability during soldering and operation. The contacts feature double side-swipe construction from phosphor bronze with a thin 0.25μm gold plating, providing corrosion resistance and low contact resistance to maintain consistent electrical performance.
Electrical specifications include a current rating of 12 amperes and voltage handling up to 1 kilovolt, making this socket suitable for a wide range of industrial, electronics manufacturing, and laboratory applications.
This socket is designed with a straight orientation and through hole mounting suitable for solder termination, facilitating easy PCB assembly. The operating temperature range extends from -55 degrees Celsius to 125 degrees Celsius, enabling use in harsh environmental conditions.
Samtec's SSA series sockets are compatible with other Samtec terminal strips including the TS series screw machine terminal strips and BBS and BBL machine board stacking strips, allowing flexible integration into complex designs.
Single row, 22-contact board-to-board socket with 2.54 mm pitch. High temperature UL rated polyester housing for durability. Phosphor bronze contacts with gold plating for reliable conductivity. Electrical ratings up to 12 A and 1 kV voltage.
Wide operational temperature range from -55°C to 125°C. Straight orientation and through hole solder termination. Compatible with Samtec TS, BBS, and BBL series terminal strips.
This product is ideal for industrial electronic manufacturing, control systems, instrumentation, and HVAC applications where secure and durable PCB connections are critical. Samtec's SSA-122-S-G socket provides reliable mechanical and electrical performance to ensure long-lasting device operation.
Explore our category to find additional PCB Sockets and connectors that meet diverse industrial and laboratory connectivity requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 12 amperes, making it suitable for various applications requiring robust electrical performance.
The SSA-122-S-G socket is rated for a maximum voltage of 1 kilovolt, allowing it to be used in high-voltage applications.
The contacts in this socket are spaced at a pitch of 2.54 mm, which is standard for many PCB applications.
The housing is made from UL rated 94 V-O high temperature black PET polyester, while the contacts are constructed from phosphor bronze with 0.25μm gold plating for improved conductivity.
The operating temperature range for the SSA-122-S-G socket is from -55°C to 125°C, enabling its use in various environmental conditions.
This PCB socket features 22 contacts, allowing for multiple connections in a single row configuration.
The SSA-122-S-G uses a solder termination type, suitable for through hole mounting on PCBs.
Yes, it is compatible with Samtec TS, BBS, and BBL series machine stacking strips, allowing for flexible integration into various designs.
This model features a straight orientation, which is typical for board-to-board connections in PCB applications.
The SSA-122-S-G is classified as a board-to-board connector, designed specifically for connecting two circuit boards together.
This product is manufactured in India, ensuring compliance with relevant manufacturing standards.
The contacts in this socket are female, which is standard for receiving male connectors in board-to-board applications.
