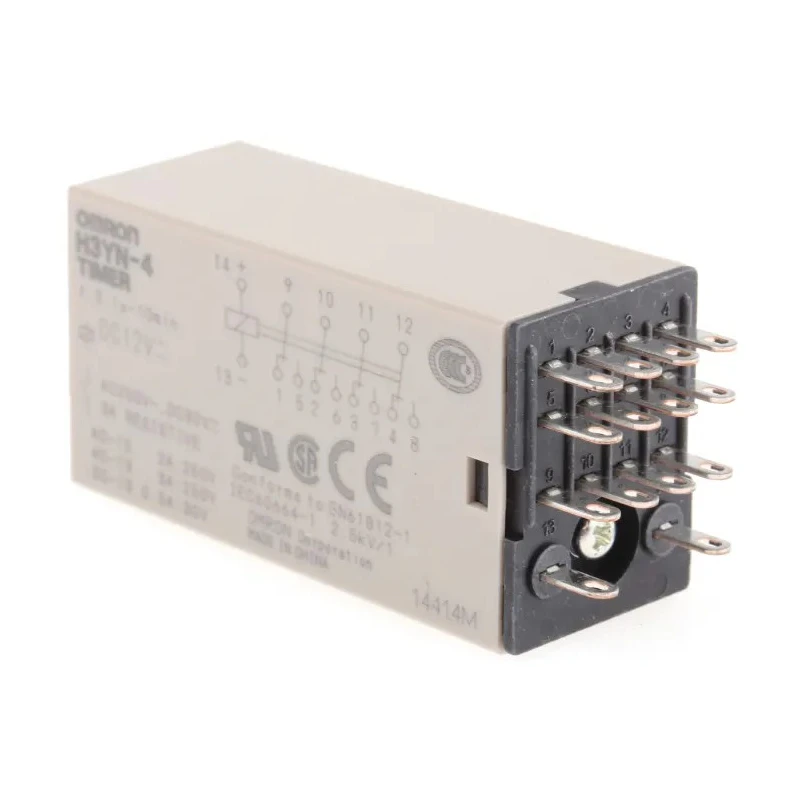

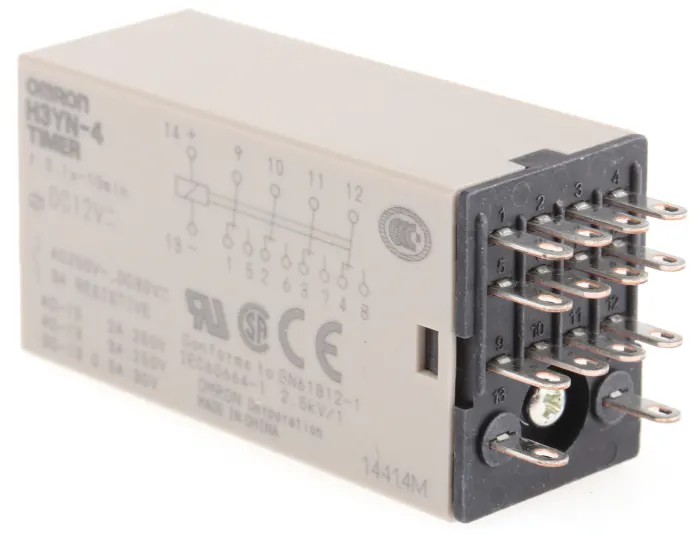

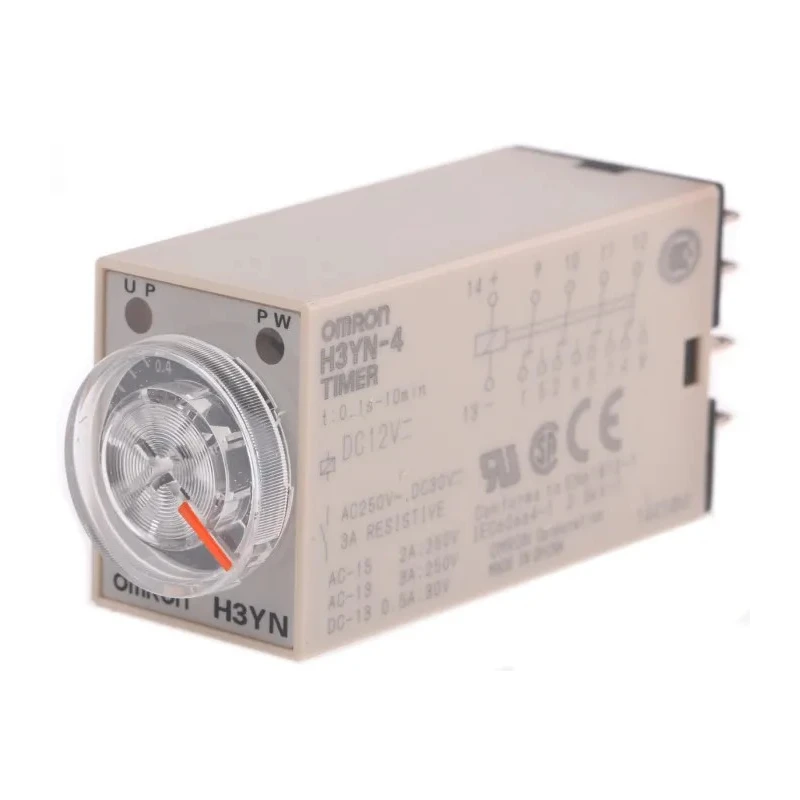

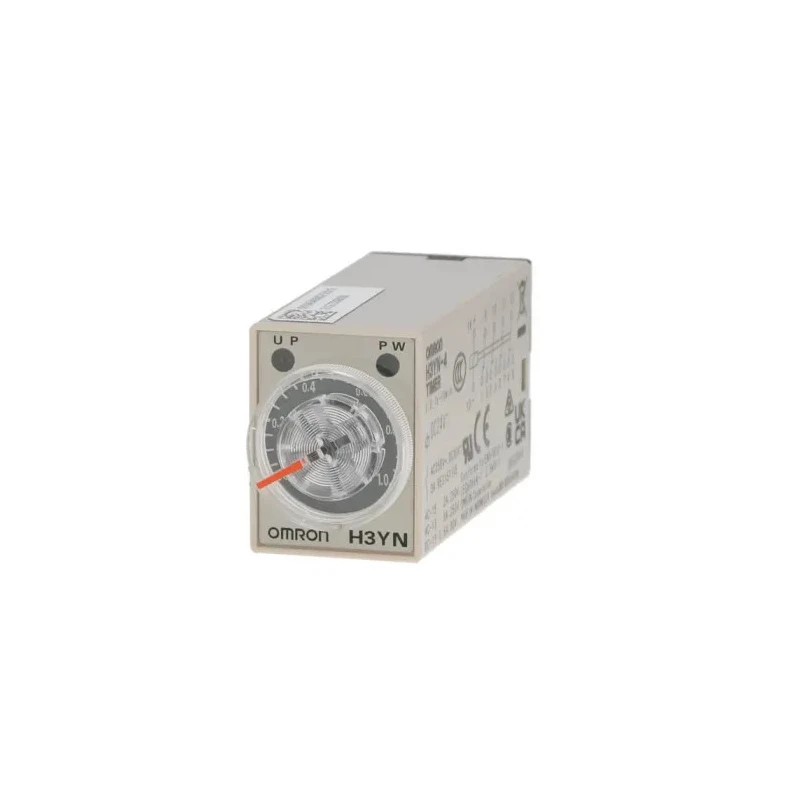

Omron H3YN Series DIN Rail Timer Relay 4PDT, 12V DC, 0.1s - 10min, Multifunction, IP40 H3YN-4 DC12
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 63mm |
| Function | Offset Double Ring End |
| Length | 28mm |
| Model | H3YN-4 DC12 |
| IP Rating | IP40 |
| Mode | Multifunction |
| Width | 21.5mm |
| Mount Type | DIN Rail |
| Series | H3YN |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -10°C |
| Time Range | 0.1 s to 10 min |
| Terminal type | Socket |
| Standards/Approvals | EN 61812-1, UL 508, CCC, CE, CSA C22.2 |
| Number of Contacts | 4 |
| Number of Timer Functions | Multifunction |
| Switching Voltage | 250V ac |
| Contact Current | 5A |
| Supply DC Voltage | 125 V dc |
| Supply AC Voltage | 12V ac |
Key Features
- Offers a compact and reliable industrial timer relay solution.
- Operates at 12V DC supply voltage with selectable timing range from 0.1 seconds to 10 minutes.
- Provides four pole double throw (4PDT) switching for versatile control applications.
- Suitable for DIN rail or panel mounting to support flexible installation.
- Supports ON delay, flicker, and interval timing functions to suit various automation needs.
- Clear time setting knob facilitates precise adjustment of operation intervals.
- Rated for 250V AC switching voltage and IP40 protection class.
- Conforms to EN 61812-1, UL 508, CCC, CE, CSA C22.2 standards for international compliance.
Product Description
Omron H3YN-4 DC12 DIN Rail Timer Relay is engineered for demanding industrial and commercial automation environments requiring accurate timing functions. Utilizing a 12V DC supply voltage, the device delivers versatile multi-function capabilities with a timing range from 0.1 seconds up to 10 minutes, making it suitable for a wide array of sequencing, operational, and control tasks.
Designed for maximum flexibility, the relay supports DIN rail and panel mounting options, allowing seamless integration into control cabinets and automated panels. With four pole double throw (4PDT) switching, the H3YN-4 DC12 offers robust contact management and adaptation for systems requiring multiple switching paths.
The relay supports several operation modes including ON delay, flicker OFF start, flicker ON start, and interval, enabling tailored timing solutions for conveyor systems, HVAC cycle controls, lighting circuit flicker functions, and sequential industrial processes. The clear knob allows for easy and precise adjustment of the interval, ensuring reliable and repeatable performance.
Rated at 250V AC switching voltage and 5A contact current, the device is compatible with standard circuit loads and delivers steady operation under variable environmental conditions. Its IP40 ingress protection and wide operating temperature range from -10°C to 50°C ensure durable indoor use.
Compact relay design saves valuable panel space. Multi-mode operation reduces inventory needs for automation integrators. Meets strict international standards, including EN 61812-1, UL 508, CCC, CE, and CSA C22.2. Socket terminal type simplifies replacement and maintenance procedures.
Applications span industrial automation, process control, manufacturing sequencing, HVAC management, and timed lighting circuits. The robust engineering and compact footprint make the Omron H3YN-4 DC12 timer relay a top choice for reliability and adaptability.
Explore more Omron Timer Relays and automation solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a selectable timing range from 0.1 seconds to 10 minutes, allowing for versatile timing applications.
The H3YN-4 DC12 can be mounted on a DIN rail or panel, providing flexibility for installation in various settings.
It is rated for a switching voltage of 250V AC and a contact current of 5A, suitable for standard circuit loads.
This model supports multiple timer functions including ON delay, flicker OFF start, flicker ON start, and interval timing.
It has an IP40 rating, indicating protection against solid objects larger than 1mm but not against water.
The dimensions of the H3YN-4 DC12 are 63mm in height, 28mm in length, and 21.5mm in width.
It operates effectively within a temperature range of -10°C to 50°C, suitable for various indoor environments.
This timer relay uses a socket terminal type, which simplifies replacement and maintenance procedures.
It conforms to several standards including EN 61812-1, UL 508, CCC, CE, and CSA C22.2 for international compliance.
This model features four pole double throw (4PDT) switching, providing multiple contact paths for control applications.
It operates on a supply voltage of 12V DC, making it suitable for various automation tasks.
It is suitable for applications in industrial automation, process control, manufacturing sequencing, HVAC management, and timed lighting circuits.
