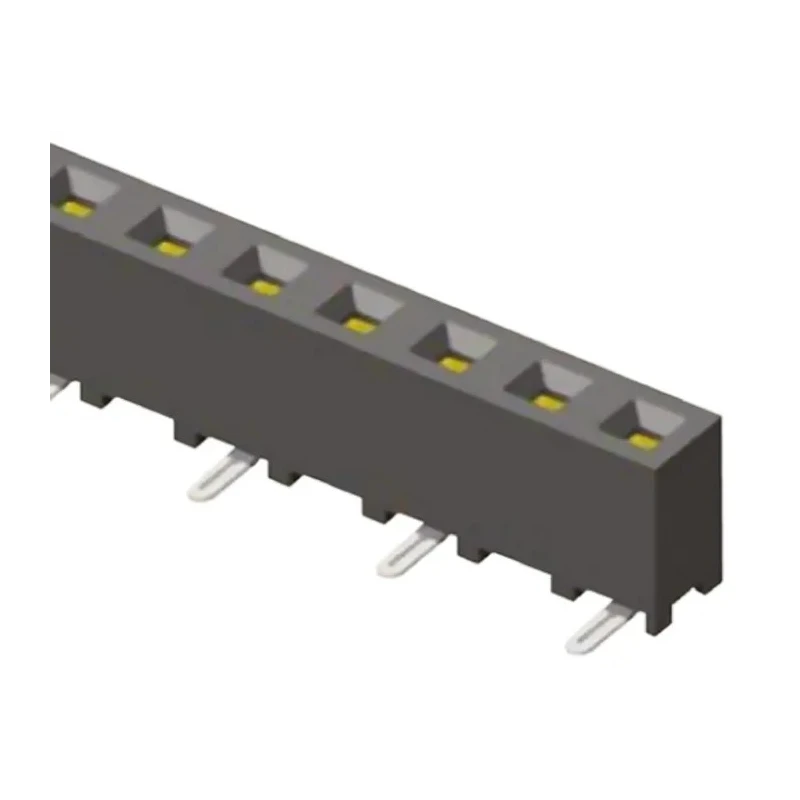

Samtec Straight Surface PCB Socket, 12-Contact, 1 Row, 2 mm Pitch, 350V, 3.9A Current SMM-112-02-S-S
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 350V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 3.9A |
| Temperature range | -55 → 125 °C |
| Model | SMM-112-02-S-S |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | SMM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 12 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Insulator Material | Black LCP |
Key Features
- Features a single row with 12 female contacts optimized for surface mounting.
- Manufactured with black Liquid Crystal Polymer housing to withstand high temperatures.
- Supports current up to 3.9 amperes and voltage rating of 350 volts.
- Offers a reliable connection using gold-plated beryllium copper alloy contacts.
- Operates reliably in temperature ranges from -55°C to 125°C.
- Contact area plated with 0.76 μm gold for enhanced conductivity and corrosion resistance.
- Designed for solder termination with straight orientation for ease of assembly.
- Compatible with Tiger Eye contacts for robust electrical performance.
Product Description
Samtec SMM-112-02-S-S is a straight surface mount PCB socket featuring 12 female contacts arranged in a single row with a 2 mm pitch. This connector series offers a reliable Board-to-Board connection rated at 3.9 A current and 350 V voltage, designed to meet demanding industrial and electronic component applications.
The socket utilizes black Liquid Crystal Polymer (LCP) for insulator material, providing durability and heat resistance. Its contacts are made from beryllium copper alloy and are plated with a matte tin finish on PCB tails and 0.76 μm gold plating on contact areas to ensure excellent conductivity and corrosion resistance.
Operating temperature ranges from -55°C to 125°C, making it suitable for harsh environments. Its solder termination and straight orientation enhance mounting reliability and assembly ease in automated manufacturing environments.
This SMM series socket, equipped with Tiger Eye contacts, provides superior electrical performance. It is ideally suited for industrial tools, manufacturing systems, electronic instrumentation, laboratory devices, and HVAC control boards requiring precise board-to-board connectivity.
Installation is simplified by compatibility with mating TMM SMT and Through Hole Headers, enabling versatile design and maintenance options. Features a single row with 12 female contacts optimized for surface mounting. Manufactured with black Liquid Crystal Polymer housing to withstand high temperatures.
Supports current up to 3.9 amperes and voltage rating of 350 volts. Offers a reliable connection using gold-plated beryllium copper alloy contacts. Operates reliably in temperature ranges from -55°C to 125°C. Contact area plated with 0.76 μm gold for enhanced conductivity and corrosion resistance.
Designed for solder termination with straight orientation for ease of assembly. Compatible with Tiger Eye contacts for robust electrical performance. Ideal for industrial, electronic manufacturing, and laboratory board-to-board interface applications.
Explore Samtec PCB Sockets for robust and reliable connector solutions at EnvMart, your partner in component sourcing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a voltage rating of 350 volts and a current rating of 3.9 amperes.
It operates reliably within a temperature range of -55°C to 125°C.
The housing is made from black Liquid Crystal Polymer (LCP), which provides durability and heat resistance.
This model features 12 female contacts arranged in a single row.
It is designed for solder termination, which enhances mounting reliability.
This socket is designed for Board-to-Board connectivity.
The pitch size of the contacts is 2 mm.
The contacts are made from beryllium copper alloy and are plated with 0.76 μm gold for enhanced conductivity and corrosion resistance.
Yes, it is compatible with mating TMM SMT and Through Hole Headers, allowing for versatile design options.
This socket has a straight orientation, which facilitates ease of assembly.
This model is part of the SMM series of PCB sockets.
The country of origin for this product is India.
