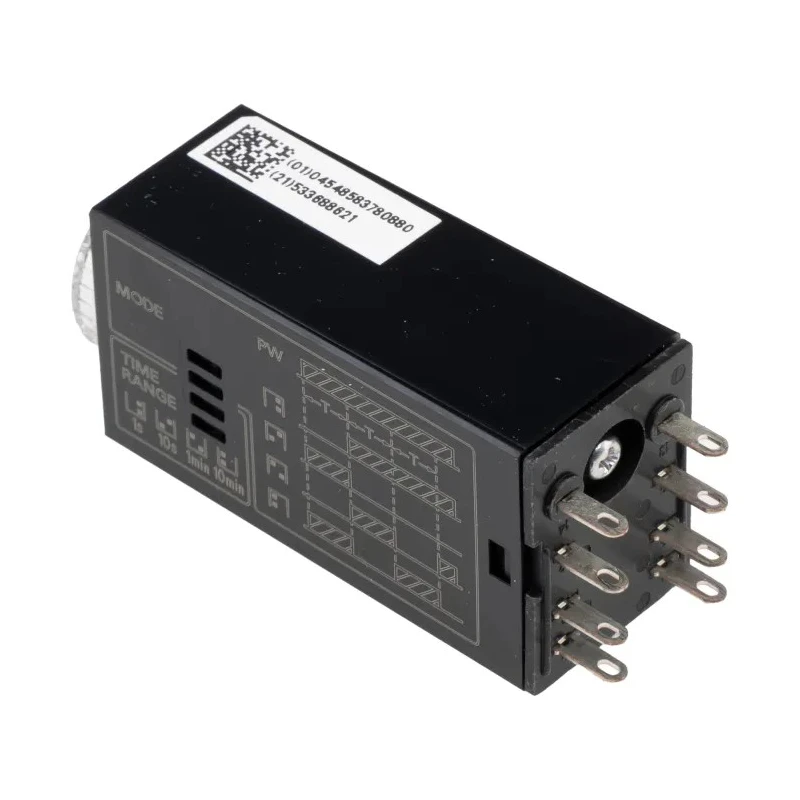

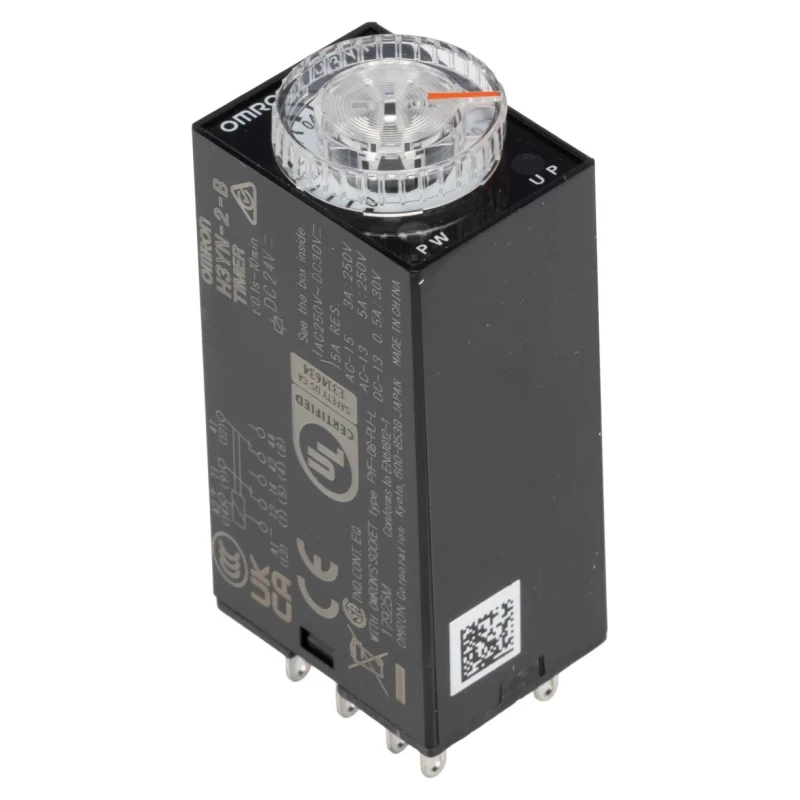

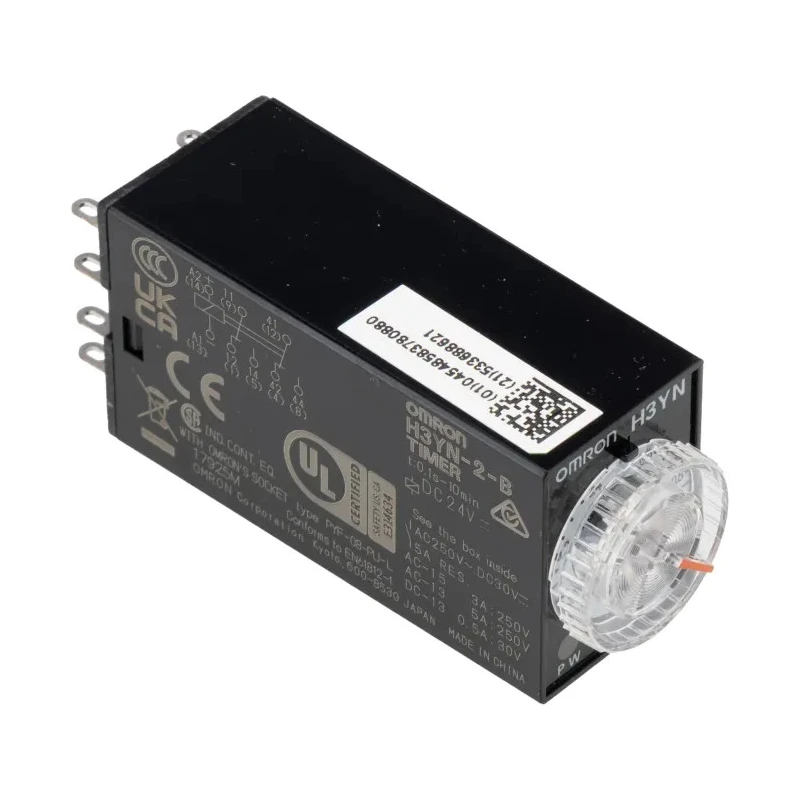

Omron Panel Timer Relay 24V AC/DC, Multifunction, DPDT, 4-Contact, 0.1 s to 10 min, IP40 H3YN
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 28mm |
| Function | Multifunction |
| Length | 21.5mm |
| Model | H3YN |
| IP Rating | IP40 |
| Mode | Multifunction |
| Width | 56.6mm |
| Mount Type | Panel |
| Series | H3YN |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -10°C |
| Time Range | 0.1 s to 10 min |
| Terminal type | Push-in |
| Number of Contacts | 4 |
| Number of Timer Functions | Multifunction |
| Switching Voltage | 250V ac |
| Contact Current | 5A |
| Supply DC Voltage | 24 V |
| Supply AC Voltage | 24V ac |
| Omron H3YN Series Timer Relay, 24V dc, 2-Contact, 0.1 s → 10minBrand | Omron |
Key Features
- Provides adjustable timing control from 0.1 seconds to 10 minutes for automation applications.
- Supports both 24V AC and 24V DC supply, offering flexible compatibility.
- Multifunction timing modes are suitable for diverse control applications.
- Features four DPDT contacts rated at 5A for dependable switching of two independent circuits.
- Push-in terminal design enables rapid, tool-free panel installation and secure connections.
- IP40 enclosure offers suitable protection for standard industrial environments.
- Operates reliably between -10°C and 55°C ambient temperature for versatility.
- Compact dimensions allow easy integration into control panels.
Product Description
This Omron H3YN-2-B DC24 panel timer relay is engineered for industrial automation and electrical control systems, providing precise timing functions and dependable switching performance. It operates on either 24V AC or DC supply voltage, enabling versatile installation in a wide range of panels and control circuits.
The relay accommodates adjustable time intervals from 0.1 seconds up to 10 minutes, supporting sequence control, process delays, and cyclic operations required in manufacturing and automation. Its multifunction features allow the device to support various timing modes, increasing flexibility in handling different operational requirements.
Equipped with four DPDT contacts rated at 5A, the relay reliably switches two parallel circuits with repeatable accuracy. The switching voltage capability extends up to 250V AC, catering to control signals and loads typical in industrial systems. Secure push-in terminal connections allow for efficient, tool-free panel mounting, making it suitable for quick field installation, maintenance, or expansion of control systems.
The relay's IP40 enclosure protects internal electronics from dust and other standard industrial hazards, while its operating temperature range (-10°C to 55°C) ensures consistent performance in typical indoor environments. Compact physical dimensions (21.5mm length, 56.6mm width, 28mm height) enable integration into tight panel spaces.
Applications include sequence control in automation panels, timed motor start and stop, lamp and indicator timing within cabinets, process delay and cycling tasks in assembly lines, as well as compact machine control systems. The relay complies with global standards such as EN 61812-1, IEC 60664-1, UL 508, CE, CCC, Lloyds, and CSA C22.2 No. 14, supporting international compatibility and safety.
Ideal for engineers and integrators seeking reliable multifunction timing with dual power supply capability, the Omron H3YN-2-B DC24 Panel Timer Relay is a trusted component for commercial, manufacturing, and process automation installations.
Explore further timer relays and industrial automation products from Omron in the Timer Relay category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides adjustable timing control from 0.1 seconds to 10 minutes, making it suitable for various automation applications.
It operates on both 24V AC and 24V DC supply, offering flexible compatibility for different control circuits.
This unit features four DPDT contacts rated at 5A, allowing it to switch two independent circuits reliably.
The relay has an IP40 enclosure, providing protection against dust and other standard industrial hazards.
It operates reliably between -10°C and 55°C, ensuring consistent performance in typical indoor environments.
This model features push-in terminal connections, allowing for rapid, tool-free panel installation and secure connections.
The compact dimensions are 21.5mm in length, 56.6mm in width, and 28mm in height, facilitating integration into tight panel spaces.
It is suitable for sequence control in automation panels, timed motor start and stop, and process delay tasks in assembly lines.
The relay can switch voltages up to 250V AC, accommodating typical control signals and loads in industrial systems.
The relay supports various timing modes, increasing flexibility for handling different operational requirements in automation.
It complies with global standards such as EN 61812-1, IEC 60664-1, UL 508, CE, CCC, Lloyds, and CSA C22.2 No. 14, ensuring international compatibility and safety.
The Omron H3YN panel timer relay is manufactured in China.
