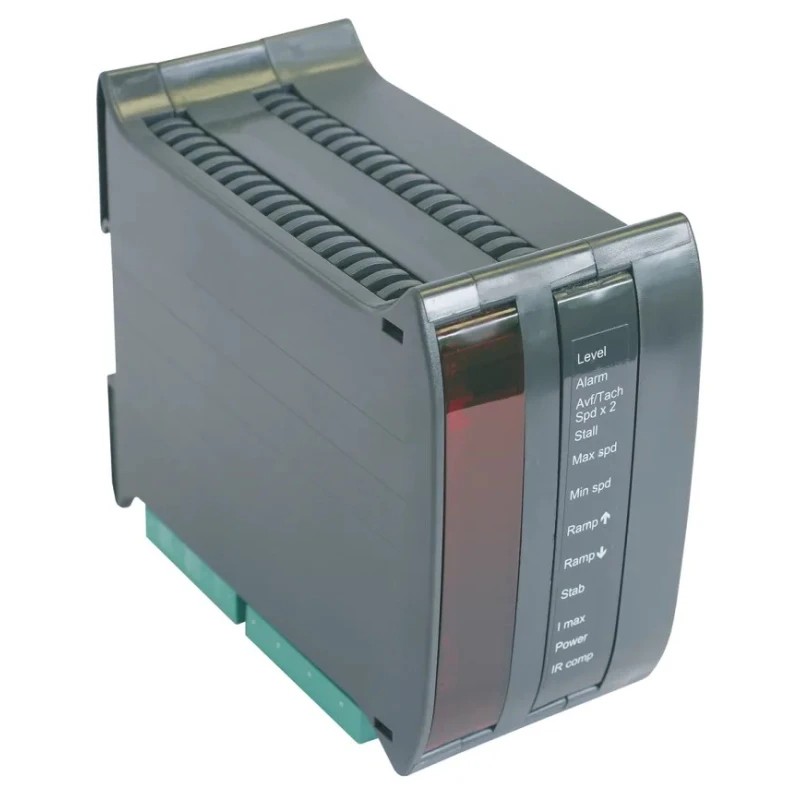

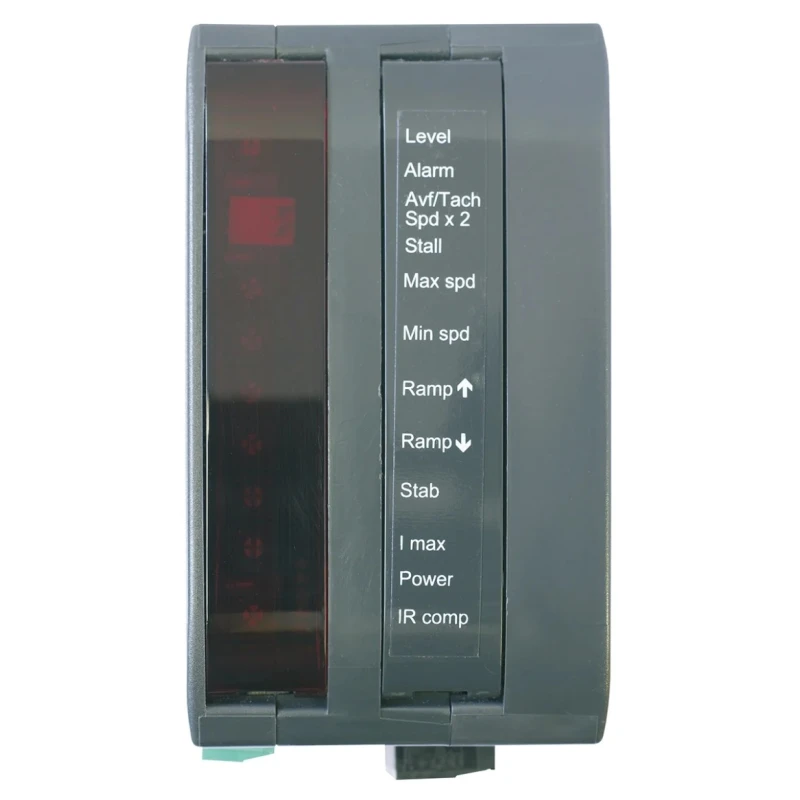

Sprint Electric Fully Isolated DC Motor Controller 250W 1 Phase 110V ac, 230V ac, 3.4A 340i

Sprint Electric 340i is a fully isolated DC motor controller rated at 250W power output and designed for 1 phase supply of 110V ac or 230V ac. It delivers a continuous current of 3.4A and an output voltage of 180V dc, making it suitable for controlling permanent magnet and shunt wound DC motors in industrial environments.

The controller boasts a compact slimline form factor measuring 120mm in length, 105mm in width, and 60mm in depth, which allows for space-efficient panel installations adjacent to other electrical components. Its fully isolated design enhances safety and performance reliability.

This model provides selectable AVF or tachometer feedback options, enabling precise speed regulation and improved motor control. Installation and adjustment are straightforward due to easily accessible screw terminals. The unit also includes logic outputs for trip and overload detection, essential for motor protection.

Designed to operate reliably within a maximum ambient temperature of 40°C, the 340i model series ensures stable performance under typical industrial conditions. It does not carry specific approvals or certifications but follows stringent manufacturing processes in the United Kingdom.

This controller is widely applicable for motor control in sectors such as manufacturing, automation, electrical engineering, and other industrial applications requiring efficient DC motor speed control.

The fully isolated design allows for safe and compact installations next to other panel components. Compact dimensions of 120mm length, 105mm width, and 60mm depth save panel space. Compatible with permanent magnet and shunt wound DC motors providing versatile use.

Selectable AVF or tachometer feedback improves motor performance control. Supports continuous operation up to a maximum ambient temperature of 40°C. Equipped with logic outputs to indicate trip and overload conditions. Easily installed with accessible screw terminations for quick adjustments.

Designed and manufactured in the United Kingdom ensuring high quality standards. Explore our extensive range of Motor Controllers at EnvMart for reliable industrial automation solutions.
