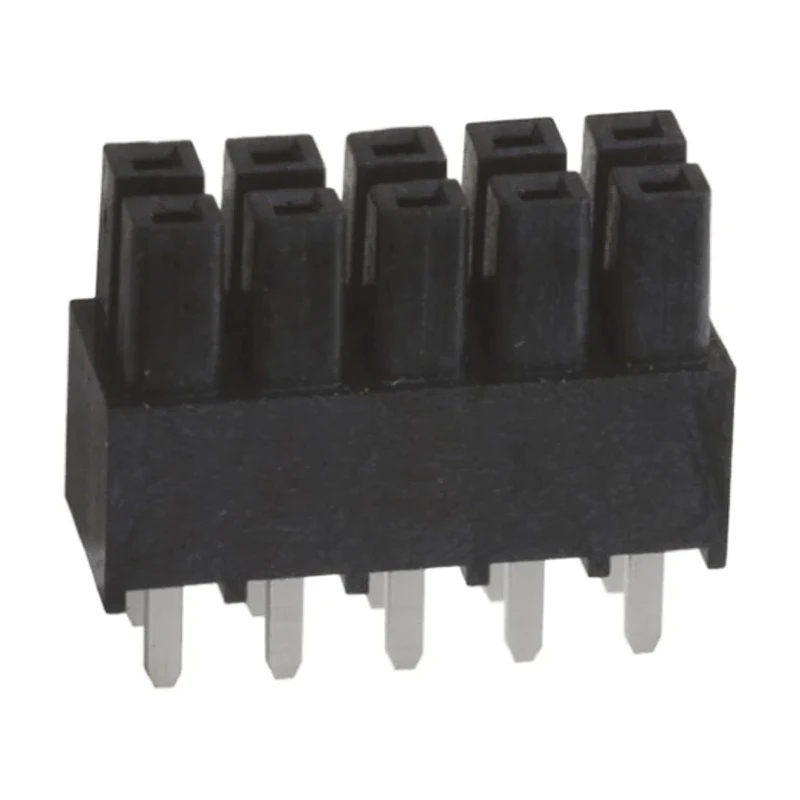

Samtec IPS1 Series Straight Through Hole PCB Socket 10-Contact 2 Row 2.54 mm Pitch Through Hole
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 777V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 12A |
| Model | IPS1 |
| Mount Type | Through Hole |
| Contact Material | Bronze |
| Series | IPS1 |
| Termination Type | Through Hole |
| Sub Type | Board-to-Board |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Connector System | Board-to-Board |
Key Features
- Features a 2 row, 10-contact design with 2.54 mm pitch for precise alignment.
- Constructed with rugged phosphor bronze contacts plated with 0.25μm gold for durability and conductivity.
- Supports a high current rating of 12A ensuring efficient power transmission.
- Suitable for operating temperatures from -55 to +125°C for diverse industrial applications.
- Mounting through-hole design ensures strong mechanical and electrical connection to PCBs.
- Mini Mate® series offers reliable and isolated power socket strips for PCB assemblies.
- Compatible with IPT1 series shrouded PCB power terminals for versatile configurations.
- Designed with a black glass LCP insulator for electrical isolation and mechanical stability.
Product Description
Samtec IPS1 IPS1-105-01-L-D is a Mini Mate® series straight through hole PCB socket designed with 10 contacts arranged in 2 rows and a standard 2.54 mm pitch. The connector provides a robust and reliable board-to-board connection, ideal for use in electronics, power distribution, and industrial assemblies.
This PCB socket features rugged phosphor bronze contacts that are gold plated at 0.25 microns to combine excellent conductivity with durability. Enclosed within a black glass liquid crystal polymer (LCP) insulator, it guarantees electrical isolation and mechanical integrity under demanding conditions.
The socket supports a current rating of 12A and a voltage rating of 777V, making it well suited for high-power applications. This device is engineered to operate within the temperature range of -55°C to +125°C, providing excellent reliability in harsh industrial and environmental conditions.
Its through-hole mounting and straight orientation allow for secure and precise assembly on printed circuit boards, ensuring stable electrical connections. The height when mated is 11.05 mm, offering a compact form factor for space-constrained designs.
The IPS1 series connectors are commonly used in applications like industrial controls, communications equipment, and power electronics. They are compatible with the IPT1 series shrouded PCB power terminals to create flexible board-to-board power interconnects.
2 row, 10 contact configuration with 2.54 mm pitch for precise spacing. Rugged 0.25μm gold plated phosphor bronze tuning fork contacts. Supports up to 12A current and 777V voltage ratings. Operating temperature from -55°C to +125°C.
Through-hole mount for strong and reliable PCB connection. Black glass LCP insulator for electrical isolation and mechanical stability. Compatible with IPT1 series power terminals for board-to-board solutions.
This high-quality PCB Socket series from Samtec suits industrial, laboratory, manufacturing, and power distribution applications requiring reliable and durable connectors. Explore further Samtec products and power connector solutions on EnvMart for comprehensive assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 12A, making it suitable for high-power applications.
The voltage rating for this PCB socket is 777V, allowing it to handle significant electrical loads.
The contacts are arranged with a pitch of 2.54 mm, ensuring precise alignment and spacing.
The contacts are made of rugged phosphor bronze and are plated with 0.25μm gold for enhanced conductivity and durability.
It operates effectively within a temperature range of -55°C to +125°C, suitable for diverse industrial applications.
This unit features a through-hole mounting design, ensuring a strong mechanical and electrical connection to PCBs.
This PCB socket is designed with 10 contacts arranged in 2 rows, facilitating reliable board-to-board connections.
The height when mated is 11.05 mm, providing a compact form factor for space-constrained designs.
Yes, it is compatible with the IPT1 series shrouded PCB power terminals for versatile configurations.
It is designed with a black glass liquid crystal polymer (LCP) insulator, ensuring electrical isolation and mechanical stability.
This model is commonly used in industrial controls, communications equipment, and power electronics applications.
The connector system is designed for board-to-board applications, facilitating efficient power transmission.
